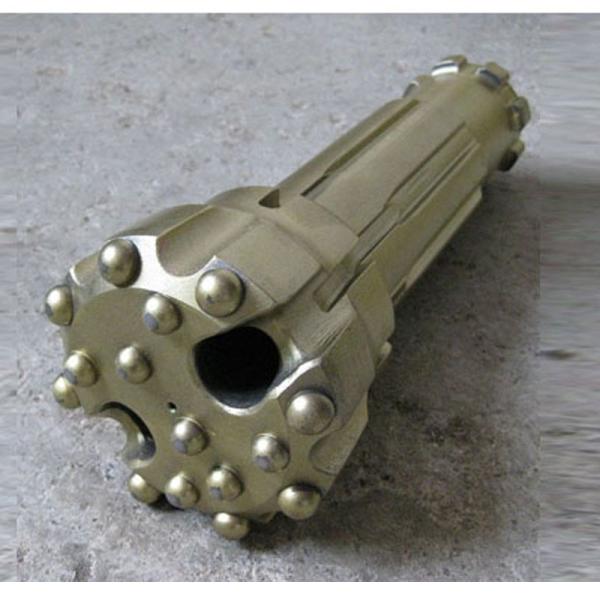

DTH High Pressure Mining Drilling Bits Stone Drilling Bits 110 - 113mm
DTH High Pressure Mining Drilling Bits Stone Drilling Bits 110 - 113mm
Specifications
Place of Origin :
China
Brand Name :
MIROC
Model Number :
4148301672-4148301681
MOQ :
50
Packaging Details :
Carton Box or Wooden Box
Delivery Time :
25 days
Payment Terms :
T/T or L/C
Supply Ability :
20000 pieces per month
Price :
negotiation
Description

DTH High Pressure Mining Drilling Bits Stone Drilling Bits 110 - 113mm

Description

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.

• Medium to large size drilling diameters
• Works in high pressure range, capable of drilling deep hole lengths


Color: Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process

Type: Efficient High Pressure DTH Bits



Applications

• Underground mining
• Quarry benching operations
• Water well drilling


Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment


specification

Part Number Flushing Holes Diameter (mm) Weight (kg)
4148301672 2 110 - 113 8
4148301673 2 130 - 133 12
4148301674 2 130 - 133 15
4148301675 2 140 - 143 15.4
4148301676 2 152 - 155 19
4148301677 2 165 - 170 25
4148301678 2 178 - 181 27
4148301679 2 203 - 206 48
4148301680 2 216 - 219 50
4148301681 3 254 - 257 58

Product Code and Brief Description

Gauge Buttons

( No. x mm)

Front Buttons

( No. x mm)

 DTH Hammer
DTH440-115 7 x 14 6 x 12 DTH440
DTH440-130 7 x 14 8 x 12 DTH440
DTH450-130 6 x 13 3 x 12 DTH450
DTH450-140 6 x 13 6 x 12 DTH450
DTH450-152 8 x 14 7 x 13 DTH450
DTH460-165 8 x 14 7 x 13 DTH460
DTH460-178 8 x 14 8 x 13 DTH460
DTH480-203 7 x 14 7 x 14 DTH480
DTH480-216 7 x 14 7 x 14 DTH480
DTH480-254 6 x 16 6 x 14 DTH480
