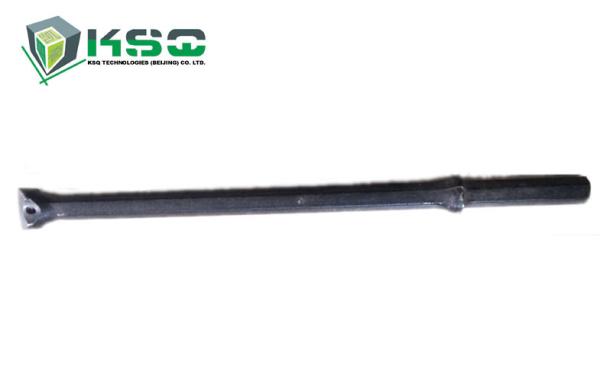

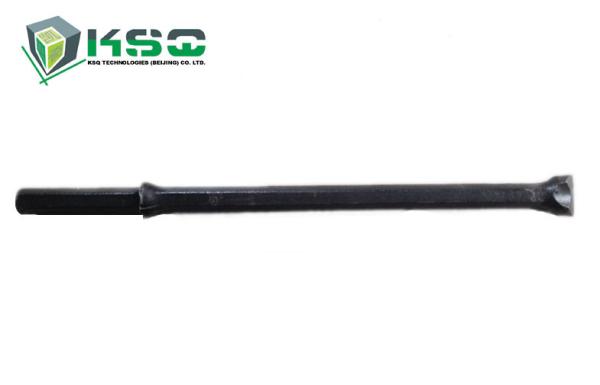

2000mm 8000mm Integral Drill Rod
2000mm 8000mm Integral Drill Rod
2000mm 8000mm Integral Drill Rod
2000mm 8000mm Integral Drill Rod
2000mm 8000mm Integral Drill Rod
2000mm 8000mm Integral Drill Rod
Specifications
Place of Origin :
China
Brand Name :
MIROC
Model Number :
4148300065-4148300074
MOQ :
50
Packaging Details :
Wooden Plate
Delivery Time :
25 days
Payment Terms :
T/T or L/C
Supply Ability :
20000 pieces per month
Price :
negotiation
Description

Description

The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.


• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry


Color: Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process

Type: Chisel Bit Integral Rod Hex 22 Shank 22 mm x 108 mm



Applications


• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling


Competitive Advantage

• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
• High grade tungsten carbide inserts


specification
<

Part Number Product Code and Brief Description

Length

(mm)

Length

(ft/inch)

Bit Diameter

(mm)

Weight

(kg)
4148300065

IH22-C38-800, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 800 2 5/8 38 3.1
4148300066

IH22-C39-1200, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 1200 4 39 4.3
4148300067

IH22-C36-1600, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 1600 5 1/4 36 5.2
4148300068

IH22-C36-1800, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 1800 6 36 6
4148300069

IH22-C32-2000, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 2000 6 5/9 32 6.7
4148300070

IH22-C27-2400, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 2400 7 7/8 27 8
4148300071

IH22-C27-3200, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 3200 10 1/2 27 10.2
4148300072

IH22-C32-3200, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 3200 10 1/2 32 10.3
4148300073

IH22-C30-6400, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 6400 21 30 20.1
4148300074

IH22-C26-8000, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 8000 26 1/4 26 25
