Steel 2000mm 8000mm H22 Integral Rock Drill Rod 4 Inch / 6 Inch
Steel 2000mm 8000mm H22 Integral Rock Drill Rod 4 Inch / 6 Inch
Steel 2000mm 8000mm H22 Integral Rock Drill Rod 4 Inch / 6 Inch
Steel 2000mm 8000mm H22 Integral Rock Drill Rod 4 Inch / 6 Inch
Steel 2000mm 8000mm H22 Integral Rock Drill Rod 4 Inch / 6 Inch
Steel 2000mm 8000mm H22 Integral Rock Drill Rod 4 Inch / 6 Inch
Specifications
Place of Origin :
China
Brand Name :
MIROC
Model Number :
4148300065-4148300074
MOQ :
50
Packaging Details :
Wooden Plate
Delivery Time :
25 days
Payment Terms :
T/T or L/C
Supply Ability :
20000 pieces per month
Price :
negotiation
Description

Steel 2000mm 8000mm H22 Integral Rock Drill Rod 4 Inch / 6 Inch

Description

The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.


• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry


Color: Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process

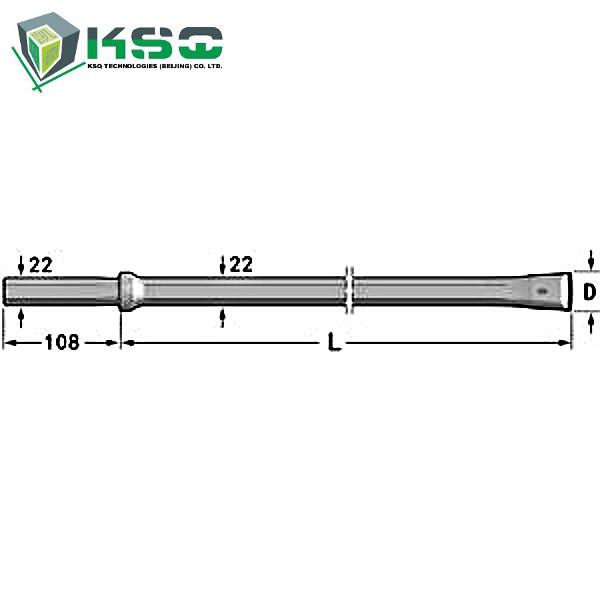

Type: Chisel Bit Integral Rod Hex 22 Shank 22 mm x 108 mm



Applications


• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling


Competitive Advantage

• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
• High grade tungsten carbide inserts


specification

Part Number Product Code and Brief Description

Length

(mm)

Length

(ft/inch)

Bit Diameter

(mm)

Weight

(kg)
4148300065

IH22-C38-800, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 800 2 5/8 38 3.1
4148300066

IH22-C39-1200, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 1200 4 39 4.3
4148300067

IH22-C36-1600, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 1600 5 1/4 36 5.2
4148300068

IH22-C36-1800, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 1800 6 36 6
4148300069

IH22-C32-2000, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 2000 6 5/9 32 6.7
4148300070

IH22-C27-2400, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 2400 7 7/8 27 8
4148300071

IH22-C27-3200, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 3200 10 1/2 27 10.2
4148300072

IH22-C32-3200, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 3200 10 1/2 32 10.3
4148300073

IH22-C30-6400, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 6400 21 30 20.1
4148300074

IH22-C26-8000, Chisel Bit Integral Rod Hex 22,

Shank 22 mm x 108 mm

 8000 26 1/4 26 25
