2 Inch H25 Threaded Drill Bit Tungsten carbide Drill Bits 35mm 45mm 70mm
2 Inch H25 Threaded Drill Bit Tungsten carbide Drill Bits 35mm 45mm 70mm
Specifications
Place of Origin :
China
Brand Name :
MIROC
Model Number :
4148300324-4148300334
MOQ :
50
Packaging Details :
Carton Box or Wooden Box
Delivery Time :
25 days
Payment Terms :
T/T or L/C
Supply Ability :
20000 pieces per month
Price :
negotiation
Description

2 Inch H25 Threaded Drill Bit Tungsten carbide Drill Bits 35mm 45mm 70mm

Description

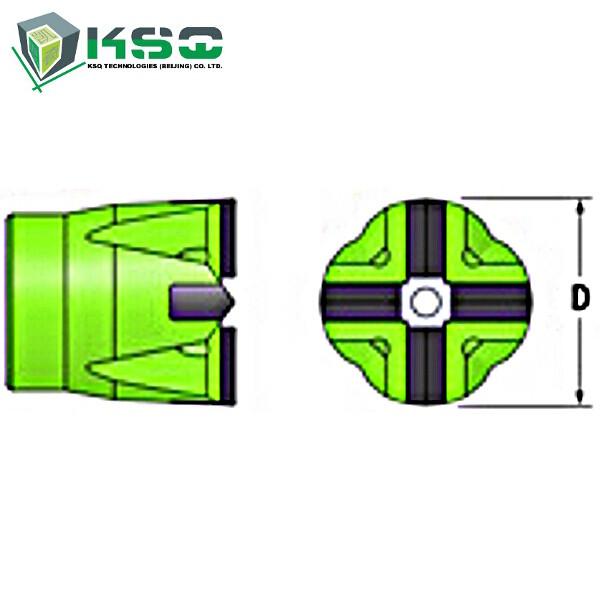

Cross type bit with steel inserts using H25 thread system. It has a slow penetration rate but it produces a very straight drill hole.


• Steel inserts
• Widely used in dimensional stone industry, drifting and tunneling


Color: Green,Blue or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: H25 H-thread Cross Type Bit



Applications


• Dimensional Stone Industry
• Underground Mining
• Tunneling



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



specification

Part Number

Product Code

and Brief

Description

Bit

Diameter

(mm)

Bit

Diameter

(inch)

Tip

Size (W x H,

mm)

Front

Flushing

drill holes

Side

Flushing

drill holes

Weight

(kg)
4148300324

CR35-H25, H25

H-thread Cross

Type Bit

 35 1 3/8 12 x 8 1 4 0.22
4148300325

CR38-H25, H25

H-thread Cross

Type Bit

 38 1 1/2 12 x 8 1 4 0.26
4148300326

CR41-H25, H25

H-thread Cross

Type Bit

 41 1 3/5 12 x 8 1 4 0.3
4148300327

CR45-H25, H25

H-thread Cross

Type Bit

 45 1 7/9 14 x 8 1 4 0.38
4148300328

CR48-H25, H25

H-thread Cross

Type Bit

 48 1 8/9 14 x 8 1 4 0.42
4148300329

CR51-H25, H25

H-thread Cross

Type Bit

 51 2 14 x 8 1 4 0.5
4148300330

CR54-H25, H25

H-thread Cross

Type Bit

 54 2 1/8 14 x 8 1 4 0.5
4148300331

CR57-H25, H25

H-thread Cross

Type Bit

 57 2 1/4 16 x 10 1 4 0.61
4148300332

CR64-H25, H25

H-thread Cross

Type Bit

 64 2 1/2 16 x 10 1 4 0.71
4148300333

CR70-H25, H25

H-thread Cross

Type Bit

 70 2 3/4 16 x 10 1 4 0.88
4148300334

CR76-H25, H25

H-thread Cross

Type Bit

 76 3 20 x 12 1 4 1.25
