Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted
Specifications
Brand Name :
JCDRILL
Model Number :
CSD400
Certification :
ISO,CE
Place of Origin :
Hebei,China
MOQ :
1Set
Price :
Negotation
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability :
2000 Set/Sets per Year
Delivery Time :
15 To be negotiated
Dimension :
11000*2480*3050mm
Driling Diameter :
450mm
Drilling Depth :
MAX.400
Weight :
22000kg
Power Type :
Disel
Description
Product Overview

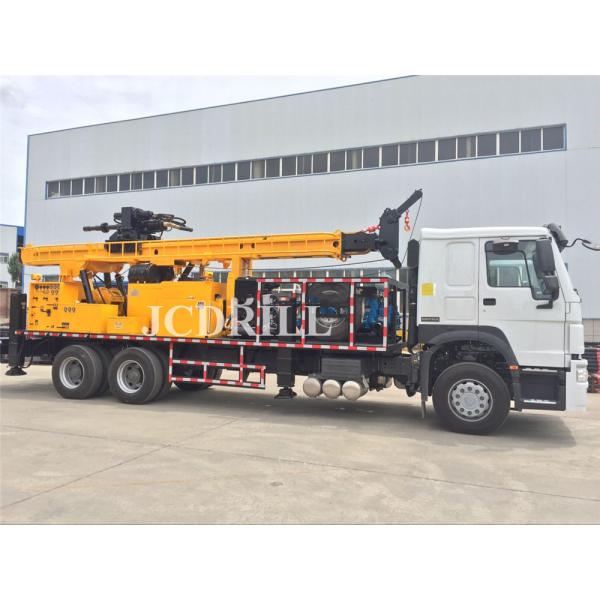

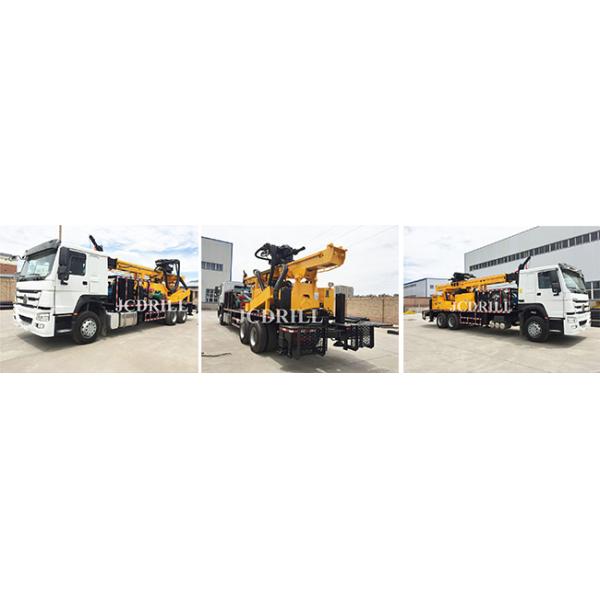

CSD400 Truck Mounted Water Well Drilling Rig
CSD400 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
CSD400 truck mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
CSD400 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted
Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted



Product Paramenters
No.
Item
1
Geology Drilled
All Kinds
2
Drilling Type
DTH & Mud Rotary
3
Drill System and Operation
Hydraulic
4
Hole Diameter
mm
140-350
5
Hole Depth
m
400
6
Rotation Torque
Nm
9600
7
Rotation Speed
rpm
60-120
8
Drill Pipe Diameter
mm
89/114
9
Drill Pipe Length
mm
4000/4500
10
Axial Pressure
KN
85
Winch
12
Lifting Force of Main Winch(Optional)
T
4
13
Lifting Force of Hoist
T
1.5
14
Length of Steel Wire Rope(Tool Winch)
m
100
15
Lifting Height of Tool Winch
m
8
Engine
16
Diesel Engine Type
CUMMINS
17
Rated Horse Power
Kw
112
18
Electrical System
Volt
24
Compressor Required
19
Compressor Type
Rotary Screw/Movable
20
Pressure Required
Mpa
1.05-4.5
21
Air Consumption
M3/min
16-60
Truck
22
Manufacturer
SINOTRUCK HOWO
23
Model
ZZ1257M5847C
24
Engine
WD615.93C
25
Rated Horse Power
Hp
245
26
Discharge Standard
EU-3
27
Drive Type
6*4
28
Max.Speed
Km/h
102.9
29
Steering Wheel
Left/Right(Optioanl)
Mud Pump
30
Power Type
Hydraulic
31
Model
BW850/2
32
Stroke
mm
110
33
Displacement
L/Min
850
34
Discharge Pressure
Mpa
2
Dimension
35
Net Weight
T
20
36
Shipping Length
mm
10500
37
Shipping Width
mm
2480
38
Shipping Height
mm
3050
39
Working Size(L*W*H)
mm
11000*2480*7147
Successful Project

Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted
CSD300 to Commeroon CSD600A to Chile CSD600 to Uruguay

Product Configuration

Borehole CSD400 Portable Hydraulic Water Well Drilling Rig Truck Mounted
Mud Pump Operation Panel Radiator

Product Features

1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The truck chassis adopts the 6X4 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW850/2 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a diesel engine, 113KW CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,have two gear,rotation speed is 0-60 and120rpm stepless adjustment and the rotary torque is 9600Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11. The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T, rope length of 100m and 8m lifting height.
12. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping. 13. Competitive in price, low cost of maintain.
