5T 300m Rotary Borehole 450MM Water Well Drilling Rig
5T 300m Rotary Borehole 450MM Water Well Drilling Rig
5T 300m Rotary Borehole 450MM Water Well Drilling Rig
5T 300m Rotary Borehole 450MM Water Well Drilling Rig
Specifications
Brand Name :
JCDRILL
Model Number :
CSD300
Certification :
ISO，CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3000sets/month
Delivery Time :
15days
Packaging Details :
standard package for shipping by sea or accordign to customers'requirement
Name :
CSD300
Drill system and operation :
Hydraulic
Hole Diameter :
Φ140—Φ450
Hole Depth :
300m
Rotation Torque :
4800-6500Nm
Rotation Speed :
60-120rpm
Drill pipe diameter :
89/114mm
Drill pipe length :
4000/4500mm
Max.Push down capacity :
5T
Max.Pull up capacity :
16T
Description

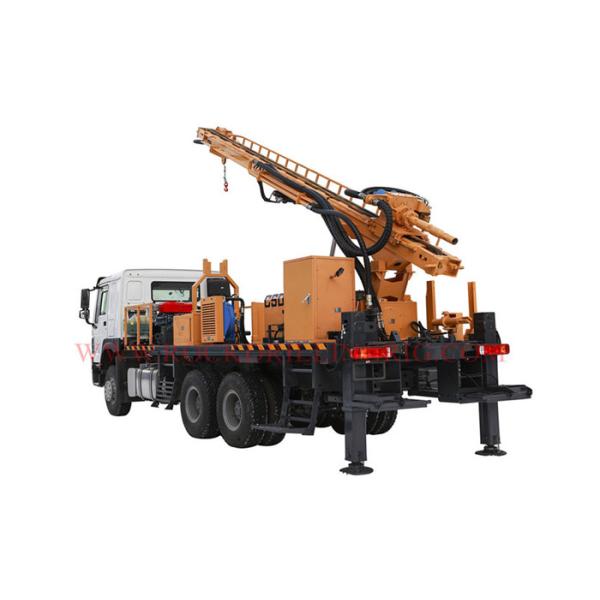

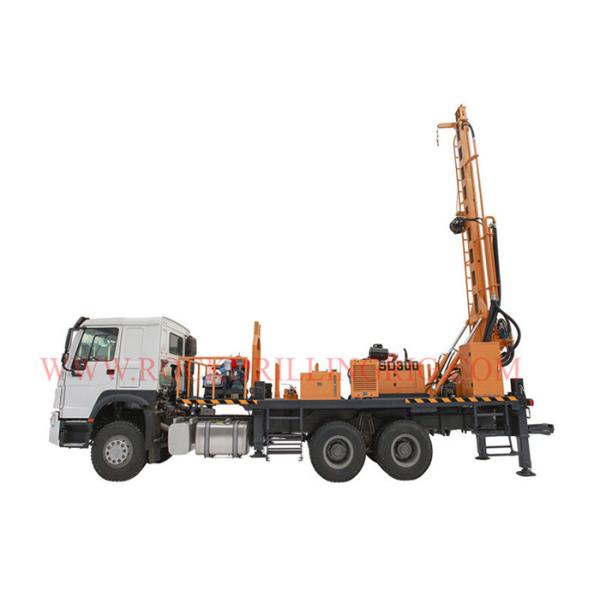

CSD300 Truck Mounted Water Well Drilling Rig
Produce Details

The rig equips with powerful hydraulic motor, heavy hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.

Truck mounted well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project.

Specification
1 Geology drilled All kinds
2 Drilling Type DTH & Mud Rotary
3 Drill system and operation Hydraulic
4 Hole Diameter mm Φ140-Φ450
5 Hole Depth m 300
6 Rotation Torque Nm 4800-6500
7 Rotation Speed rpm 60-120
8 Drill pipe diameter mm 89/114
9 Drill pipe length mm 4000/4500
10 Max.Push down capacity T 5
11 Max.Pull up capacity T 16
Winch
12 Lifting force of Main winch(Optional) T 4
13 Lifting force of hoist T 1.5
14 Length of steel wire rope(tool winch) m 100
15 Lifting height of tool winch m 8
Engine
16 Diesel Engine type YUCHAI
17 Rated Horse power Kw 70
18 Electrical System Volt 24
Compressor required
19 Compressor Type Rotary Screw/Movable
20 Pressure Required Mpa 1.05-4.5
21 Air consumption m³/min 16-60
Truck
22 Manufacturer SINOTRUCK HOWO
23 Model ZZ1257M5847C
24 Engine WD615.93C
25 Rated Horse power Hp 290
26 Discharge Standard EU-2
27 Drive type 6*4
28 Max.Speed Km/h 102.9
29 Steering wheel left/right(Optional)
Mud Pump
30 Power Type Diesel engine
31 Model BW450
32 Stroke mm 110
33 Displacement L/Min 450
34 Discharge pressure (Mpa) Mpa 5
Dimension
35 Net Weight T 20
36 Shipping Length mm 11200
37 Shipping Width mm 2500
38 Shipping Height mm 3200
39 Working size(L*W*H) mm 11000*2480*7147

Pictures

5T 300m Rotary Borehole 450MM Water Well Drilling Rig

5T 300m Rotary Borehole 450MM Water Well Drilling Rig

5T 300m Rotary Borehole 450MM Water Well Drilling Rig

5T 300m Rotary Borehole 450MM Water Well Drilling Rig

5T 300m Rotary Borehole 450MM Water Well Drilling Rig

Packing & Delivery

5T 300m Rotary Borehole 450MM Water Well Drilling Rig

Service
1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
4. All of machines we sold hold the ISO, QC, TUV certificates and so on
