Portable Rock Core Drilling Machine YN27C Mining Demolition Jack Hammer Gasoline
Portable Rock Core Drilling Machine YN27C Mining Demolition Jack Hammer Gasoline
Portable Rock Core Drilling Machine YN27C Mining Demolition Jack Hammer Gasoline
Portable Rock Core Drilling Machine YN27C Mining Demolition Jack Hammer Gasoline
Portable Rock Core Drilling Machine YN27C Mining Demolition Jack Hammer Gasoline
Portable Rock Core Drilling Machine YN27C Mining Demolition Jack Hammer Gasoline
Specifications
Brand Name :
MTH
Model Number :
YN27C
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000 pieces per month
Delivery Time :
10-15 days

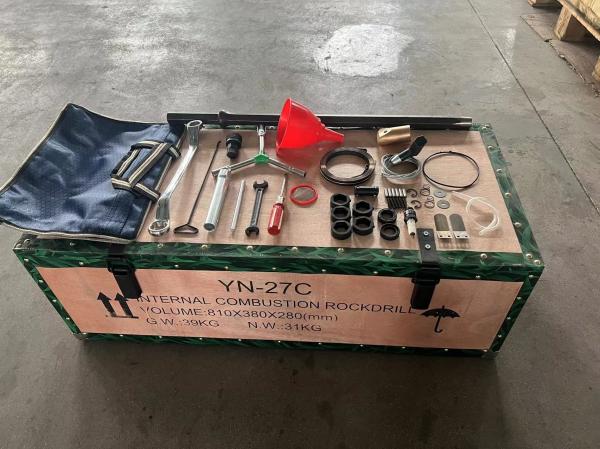

Packaging Details :
wooden case
Usage :
Ore,Coal,Water Well,mining used,Rock drilling
Weight :
27kg
Type :
Rotary Drilling Rig,ROCK DRILLING RIG
Product name :
YN27C Rock Drill
Color :
Yellow
Application :
blast hole drilling and breaking,pavement breaking,drill rig,building demolition
Feature :
Hydraulic Chuck,High Drilling Efficiency
Description

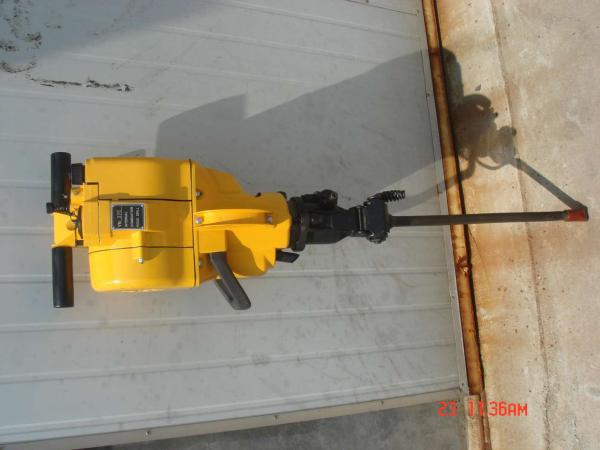

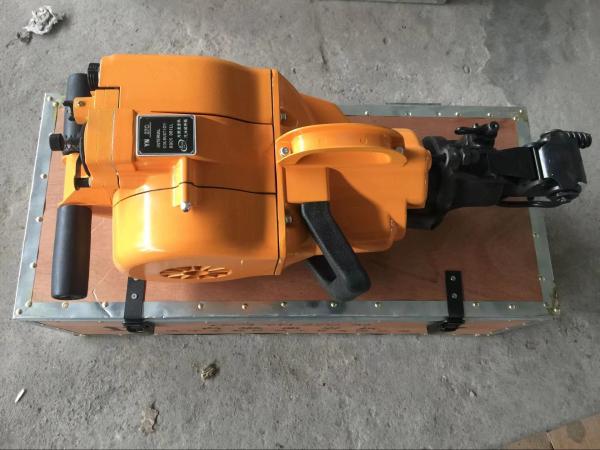

Portable Rock Drill YN27C Mining Demolition Jack Hammer Gasoline Rock Drilling Machine

Product Information:

YN27C Inter Combustion Rock Drill suited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipment, and especially suits the projects that the machine has to be carried at any time and in any area.

Main Characteristics

1. Easy to operate, just turn the handle to make it work.
2.Time and labor saving, drilling fast and high efficiency.
3. First-class level drilling tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40).
4.Used to drill vertical downward hole(max depth 6) and and <45° upward hole.
5.Light drilling tools, only 27kg, easy to carry.

Specifications:

Weight of main machine 27kg
Overall dimensions(L*W*H 746*315*229mm
Cylinder diameter*stroke of piston Φ58*70mm
Rotation speed of engine ≥2450rpm
Displacement of engine piston 185cm³
Type of carburetor hand needle valve, float-less type
Ignition system controllable silicon, contact-less system
Drilling speed (mean value of five holes) ≥250mm/min
Drilling hole diameter Φ28-42mm
Max drilling depth 6m
Fuel consumption ≤0.12L/m
Tank capacity ≥1.5liter
Drill rod and breaker shank Hex22*108mm
Rotating speed of drill rod ≥200rounds/min
Clearance of spark plug 0.5-0.7mm

Portable Rock Core Drilling Machine YN27C Mining Demolition Jack Hammer GasolinePortable Rock Core Drilling Machine YN27C Mining Demolition Jack Hammer GasolinePortable Rock Core Drilling Machine YN27C Mining Demolition Jack Hammer Gasoline
