Gasoline Hand Held Rock Drilling Machine YN27C For Rock Drill And Break
Gasoline Hand Held Rock Drilling Machine YN27C For Rock Drill And Break
Gasoline Hand Held Rock Drilling Machine YN27C For Rock Drill And Break
Gasoline Hand Held Rock Drilling Machine YN27C For Rock Drill And Break
Gasoline Hand Held Rock Drilling Machine YN27C For Rock Drill And Break
Gasoline Hand Held Rock Drilling Machine YN27C For Rock Drill And Break
Specifications
Brand Name :
Minetech
Model Number :
YN27C Handheld Rock Drill
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
$3-$300
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
30000 pieces per month
Delivery Time :
15-30 days
Packaging Details :
1/carton
Product Name :
Jack hammer Drill
Key Words :
YN27C rock drill
Model Type :
YN27C
Color :
Yellow
Package :
wooden case
Processing Type :
Forging
Machine Type :
rock drill rig
Application :
Bolting, drifting • Bench drilling • Production drilling
Port :
Tianjin qingdao
Description

High Quality Gasoline Rock Drilling Machine YN27C for Rock Drill and Break

Product Description

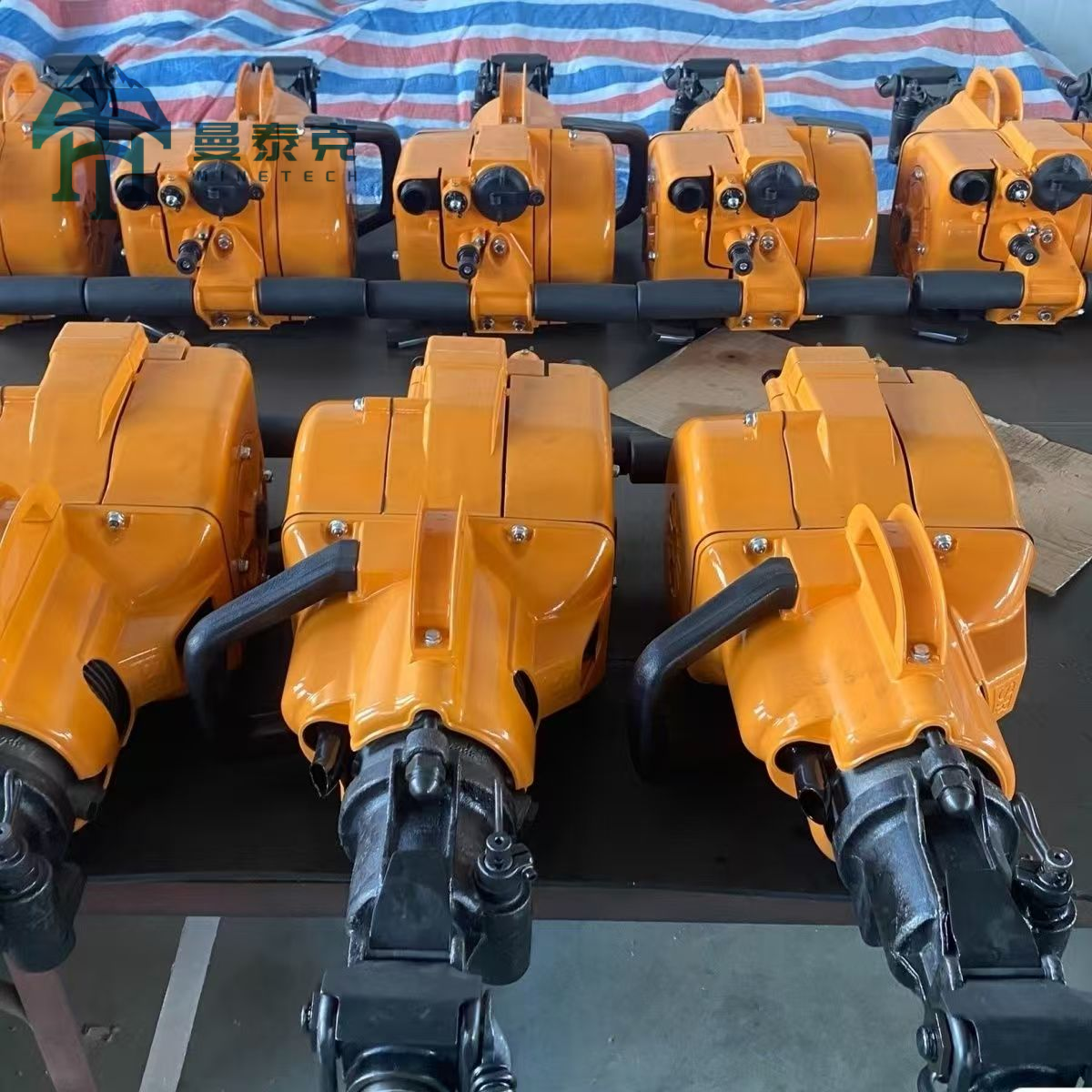

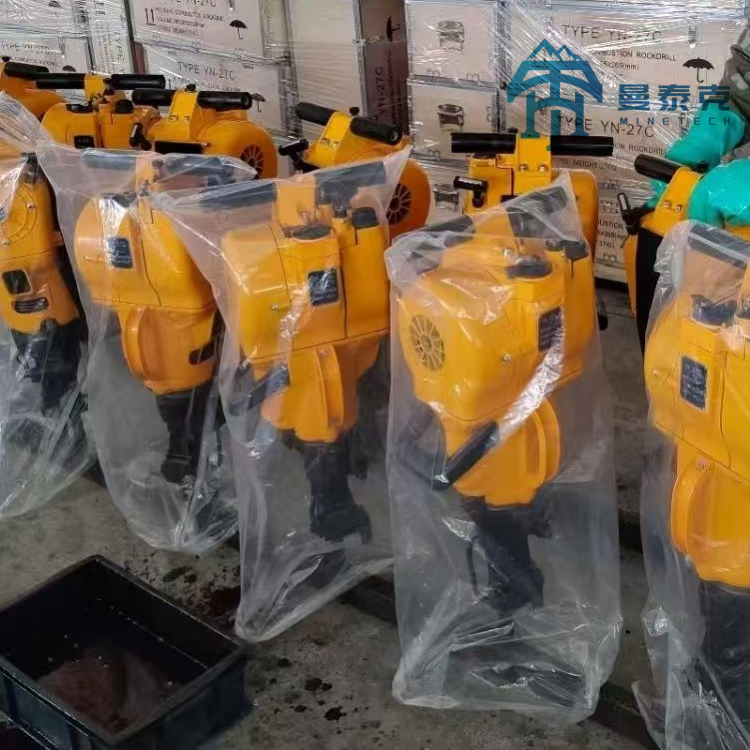

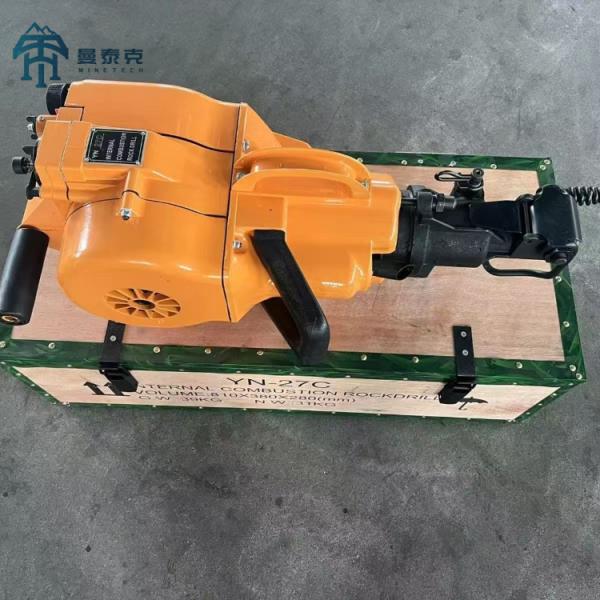

The Internal Combustion Rock Drill Type YN27C/YN27J is a very efficient machine with the characters that the structure is very compact.Less of the-easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and no electronic power. It is a Kind hand held drill built up with gasoline engine, Air pump, rock drill and the rotation plum bum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock.

Weight of main machine

 27kg

Overall dimensions(L*W*H

746*315*229mm

Cylinder diameter*stroke of piston

Φ58*70mm

Rotation speed of engine

≥2450rpm

Displacement of engine piston

185cm³

Type of carburetor

hand needle valve, float-less type

Ignition system

controllable silicon, contact-less system

Drilling speed (mean value of five holes)

≥250mm/min

Drilling hole diameter

Φ28-42mm

Max drilling depth

 6m

Fuel consumption

≤0.12L/m

Tank capacity

≥1.5liter

Drill rod and breaker shank

Hex22*108mm

Rotating speed of drill rod

≥200rounds/min

Clearance of spark plug

0.5-0.7mm

1. YN27C Gasoline rock drill is a small type of rock drill composed the power machine, working machine and air compressor in one.
2. YN27C Gasoline rock drill is powered by small gasoline engine and used for drilling on the hard rock with medium hardness.
3. YN27C Gasoline rock drill has independent impact function.
4. YN27C Gasoline rock drill can be used for cleaving rock, bruising concrete foundation, tamping railroad bed, small area tamping by combining with auxiliary means.
5. Therefore it changes the traditional working method of rock drill, which was only used to drill blast holes. So it expands the functions of rock drill.

Gasoline Hand Held Rock Drilling Machine YN27C For Rock Drill And Break

Gasoline Hand Held Rock Drilling Machine YN27C For Rock Drill And Break

Gasoline Hand Held Rock Drilling Machine YN27C For Rock Drill And Break

Company Profile:

Hebei Minetech Machinery Technology Co, Ltd. is located in Hebei province of China. Our company is a professional production and export tapered and thread rod, chisel and button bit and other mining drilling tools enterprises. With our rich experience for over a decade and with professional engineers and sales team, we focus on providing complete solutions for mining machinery.

The information you may like to know before order

1. Methods of Payment:

T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order

Within 10 days supplied from stock

3. Shipping way

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

4. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.

5. After Services:

a. Our sales team will response for your question within 24 hours (Holidays Excluded)

b. Technical Support will be available in any time

c. Free replacement will provide once the failure confirmed caused by our product quality
