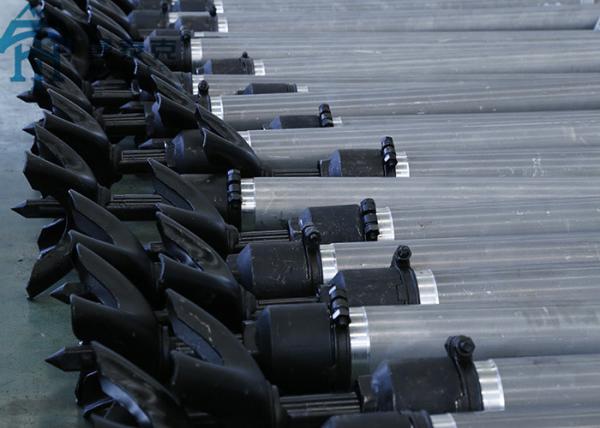

Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling
Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling
Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling
Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling
Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling
Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling
Specifications
Brand Name :
MTH
Model Number :
YT24
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
$3-$300
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
2000 sets per week
Delivery Time :
7-15 woring days
Packaging Details :
Wooden case
Name :
Rock Drill
Machine Type :
Drilling Tools
Model :
YT 24
Application :
It is best suited for use in medium and small mines.
Weight :
24kg
Advantage :
Light weight, low noise, high efficiency, good economic results.
Length :
668mm
Shank :
22×108±1
Perforating depth :
5m
Piston stroke :
60mm
Description

Air Leg YT24 Pneumatic Rock Drilling Machine for Small Hole Drilling


Product Information:


This Series pneumatic rock drill apply in hard rock on the rock drill operation,it has strong adaptability to the working conditions.The product is energy efficiency, Its components has long life and durable.The machice can be generally used with the same type,it can greatly reduce the customer loss for spare part replacement.

Y24 rock drill is widely used for dry drilling in the medium-hard and hard rock(f=8-18). It's suitable for drilling works in surface mine, quarry for boulder blasting and other dry drilling working.FY200B oil reservior is matched with this rock drill to ensure the fine lubrication.


Specifications:


PRODUCT SPECIFICATION
The parameter name Unit The parameter value
Weight kg ≈24
Length mm 668
The cylinder diameter mm 80
Piston stroke mm 60
Gas consumption L/s ≤66.7
Drilling and frequency Hz ≥31
Impact energy J ≥75.5
borehole speed mm/min ≥475
The borehole diameter mm Φ34-42
Perforating depth m 5
Shank mm 22×108±1


Features:


Light weight, low noise, high efficiency, good economic results.


Application:


It is best suited for use in medium and small mines.
