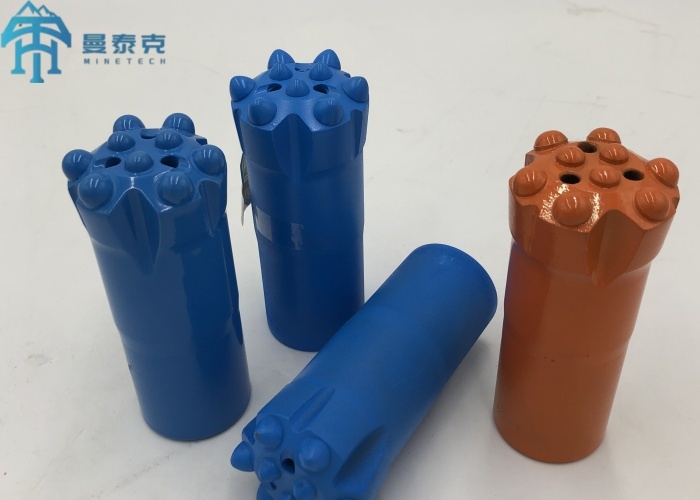

T51 102mm Button Bits Button Bit for Thread Extension Rod for Tunneling Threaded Button Drilling Bits
T51 102mm Button Bits Button Bit for Thread Extension Rod for Tunneling Threaded Button Drilling Bits
T51 102mm Button Bits Button Bit for Thread Extension Rod for Tunneling Threaded Button Drilling Bits
T51 102mm Button Bits Button Bit for Thread Extension Rod for Tunneling Threaded Button Drilling Bits
T51 102mm Button Bits Button Bit for Thread Extension Rod for Tunneling Threaded Button Drilling Bits
T51 102mm Button Bits Button Bit for Thread Extension Rod for Tunneling Threaded Button Drilling Bits
Specifications
Brand Name :
MTH
Model Number :
102MM
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
100 pcs
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
3000 pieces per month
Delivery Time :
10-15 days
Packaging Details :
wooden case
Product name :
Thread Drill Bits
Material :
Tungsten Carbide & Steel
Processing type :
Forging,Casting
Machine type :
Drilling Tool,Drilling Equipment
Color :
Blue,Gold,Customized
Application :
Rock Drilling,Mining,Bench drilling and rock drilling
Advantage :
High Wear Resistant,High Performance,high-efficiency
Thread :
T38,T51,T45
Description

T51 102mm Button Bits Button Bit for Thread Extension Rod for Tunneling Threaded Button Drilling Bits

Product Description:

Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.

Rock Drill Thread Button Bits is suitable for R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60 rock drill rods use. It have many thread. It's widely used for hard rock(f=8~18) drilling use.

1) Thread connection: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60
2) Alloy steel:42CrMo
3) Suitable carbide tips:YK05
4)Technology:hot-pressing or welding
Before Official Order, please confirm below informations:
(1) Thread Type
(2) Standard or Retrac
(3) Bit button shape (tip shape)--Spherical or Ballistic
(4) Bit face shape--Drop Center, Flat Face, Convex, Concave, etc...

Specifications:

R32
Name Diameter Tip size(mm) Flushing holes
mm gauge front side front
R32 trhead button bits 41 4*9 2*8 1 1
43 4*9 2*9 1 1
45 4*10 2*9 1 1
R32 Retrac thread button bits 60 6*9 4*8 0 3
64 6*9 4*9 0 3
70 6*10 4*10 0 3
T38
Name Diameter Tip size(mm) Flushing holes
mm gauge front side front
T38 trhead button bits 57 5*11 3*10 1 1
64 5*12 3*11 1 1
76 5*14 3*12 1 2
T38 Retrac thread button bits 60 8*9 3*9 2 2
64 8*9 4*9 2 2
70 8*10 4*10 2 2
76 8*11 4*10 2 2
89 8*12 5*12 2 2
T45
Name Diameter Tip size(mm) Flushing holes
mm gauge front side front
T45 trhead button bits 70 6*11 4*10 0 2
76 6*13 4*10 0 2
89 8*12 5*12 2 2
102 8*13 6*12 2 2
115 8*14 6*13 2 2
T45 Retrac thread button bits 70 8*11 4*10 2 2
76 8*11 4*10 2 2
80 8*12 5*11 2 2
89 8*12 6*11 2 2
102 8*13 6*12 2 2
T51
Name Diameter Tip size(mm) Flushing holes
mm gauge front side front
T51 trhead button bits 89 8*12 5*12 2 2
102 8*13 6*12 2 2
115 8*14 6*13 2 2
127 8*14 6*14 2 2
T51 Retrac thread button bits 89 8*11 5*12 2 2
102 8*11 6*12 2 2
115 8*12 6*13 2 2
127 8*12 6*14 2 2
