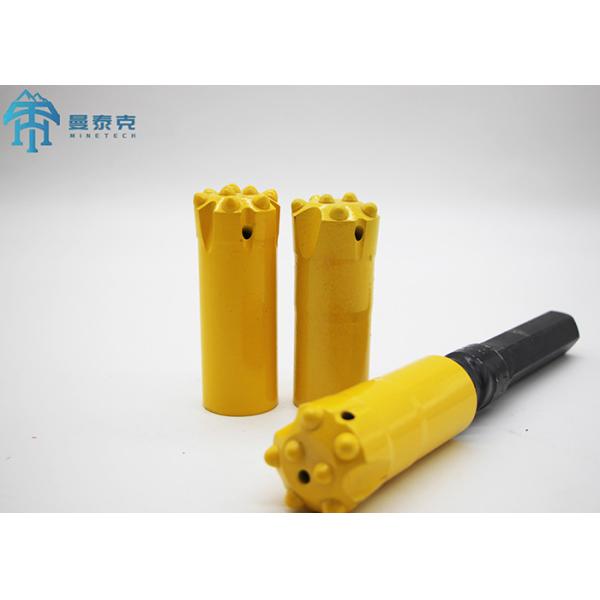

T38 Top Hammer Thread Button Bits Bench Long Hole Drilling Equipment
T38 Top Hammer Thread Button Bits Bench Long Hole Drilling Equipment
T38 Top Hammer Thread Button Bits Bench Long Hole Drilling Equipment
T38 Top Hammer Thread Button Bits Bench Long Hole Drilling Equipment
T38 Top Hammer Thread Button Bits Bench Long Hole Drilling Equipment
T38 Top Hammer Thread Button Bits Bench Long Hole Drilling Equipment
Specifications
Brand Name :
MTH
Model Number :
T38
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20000 pieces per month
Delivery Time :
10-15 days
Packaging Details :
wooden case
Product name :
Thread button bits
Use :
Ore Mining
Type :
Drilling Tool
Color :
Customized
Diameter :
64mm
Application :
Rock Drilling,Mining,grey granite,Bench drilling and rock drilling
Advantage :
Long Service Life
Usage :
Mining or Quarry or Well Drilling,Rock Drilling,Hole drilling
Thread :
T38
Weight :
600g
Sample :
1PC free
Formation :
Hard Formation
Description

T38 Top Hammer Thread Button Bits Bench Long Hole Drilling Equipment


Description:

The Rock Drilling Bits are made from grade hard alloy and special steel, generally matched with the light-duty rock drill, to
drill the rock hole within diameter of 50mm. The drill tools are used in metallurgy mine, geological exploration, water
conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc. R22 R25 R28 R32 T38 T45 T51 T60 threaded button bits could be produced as per your requirements completely, such as flat face or drop-center face; normal body or retrac body; spherical buttons, ballistic buttons or parabolic buttons.

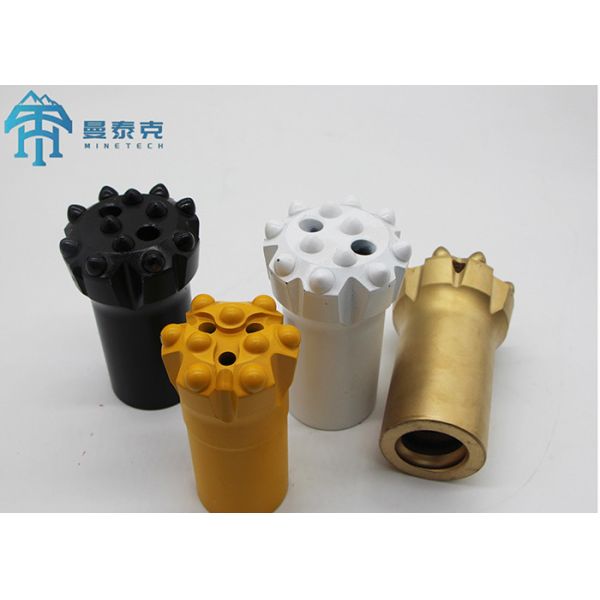

A comprehensive range of various button bits shown as below:

Taper drill bit Diameter

Tip Size(mm)

Side tooth angle

Taper Degree

Weight (Kg)

mm

inch

Side teeth

Core tooth

38

1 1/2

3×9

1×8

40°

7°

0.3

40

1 9/16

3×9

1×8

0.4

42

1 21/32

3×9

1×9

0.4

30

1 3/16

3×7

2×6

40°

12°

0.3

32

1 1/4

3×7

2×7

7°

0.3

38

1 1/2

3×9

2×7

12°

0.3

40

1 9/16

3×9

2×8

7°

0.4

42

1 21/32

3×9

2×8

7°

0.5

32

1 1/4

5×7

2×7

40°

12°

0.3

35

1 3/8

5×8

2×7

12°

0.3

38

1 1/2

5×9

2×7

12°

0.4

41

1 5/8

5×9

2×8

11°

0.4

42

1 21/32

5×9

2×8

12°

0.5

32

1 1/4

6×7

2×7

40°

12°

0.3

35

1 3/8

6×8

2×7

12°

0.3

38

1 1/2

6×9

2×8

7°

0.4

40

1 9/16

6×9

2×8

7°

0.4

41

1 5/8

6×9

2×8

7°

0.4

42

1 21/32

6×9

2×8

7°

0.5


Applications:

Mining,Bench drilling,Quarry,Well Drilling,Rock Drilling,Hole drilling and so on.

Advantage:

• High grade tungsten carbide inserts.
• High efficiency.
• Top quality with competitive prices.

T38 Top Hammer Thread Button Bits Bench Long Hole Drilling EquipmentT38 Top Hammer Thread Button Bits Bench Long Hole Drilling EquipmentT38 Top Hammer Thread Button Bits Bench Long Hole Drilling EquipmentT38 Top Hammer Thread Button Bits Bench Long Hole Drilling EquipmentT38 Top Hammer Thread Button Bits Bench Long Hole Drilling EquipmentT38 Top Hammer Thread Button Bits Bench Long Hole Drilling Equipment
Lead Time

Quantity (pieces) 1 - 1 2 - 50 > 50
Lead time (days) 7 15 To be negotiated
