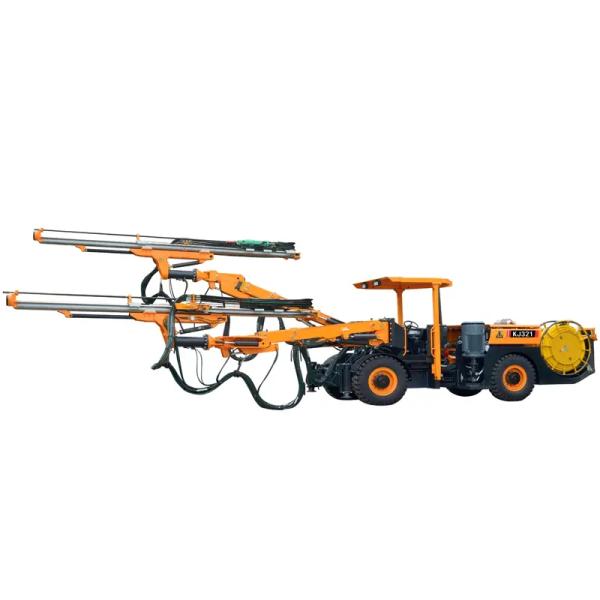

KJ321 Hydraulic Tunneling Jumbo Mine Machine Drilling Rig For Underground
KJ321 Hydraulic Tunneling Jumbo Mine Machine Drilling Rig For Underground
Specifications
Torque :
1000 Nm
Drilling Angle :
0-90 degrees
Dimension :
13158*2959*3359
End Hole Diameter :
75mm
Drill Weight :
975kg
Open Hole Caliber :
200mm
Methos :
Reverse Circulation Drilling (RCD)
Drilling Method :
Rotating
Mud Pump Pressure :
10 MPa
Rod Dia :
76 OR 89 MM
Drilling Hold Dia :
50 - 113 mm
Crawler Ground Pressure :
0.1 MPa
Maximum Opening Diameter :
300mm
Total Weight :
113 Ton
Crawler Width :
500 mm
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
2-3 Weeks
Payment Terms :
T/T
Description

Application and Features:
The KJ321 hydraulic tunneling drilling rig is suitable for drilling tunnels with cross-sections ranging from 12–45 m², capable of vertical, inclined, and horizontal drilling, as well as blast hole and rock bolting operations.

Key Features:

  1. Flexible Drilling Boom: Equipped with flexible booms in two symmetric rectangular coordinates; 360° rotation and self-leveling beam make drill positioning easy. Suitable for lateral cross-cut and rock bolting drilling.

  2. Operator-Friendly Layout: Balanced chassis and articulated four-wheel drive provide good visibility, flexible, fast, and safe operation in narrow tunnels.

  3. High-Frequency Impact Drill: The stepped piston enables high-frequency impact for rock drilling, improving transmission efficiency, increasing drilling speed, and reducing tool consumption.

  4. Wide Operating Space & Automation: Considerable space and automatic functions allow the operator to focus on safe, fast, and accurate drilling.

  5. Maintenance Friendly: All components are well-protected and easily accessible for maintenance, ensuring long-term reliability.

Applications:

  • Underground tunnel excavation for mining, metro, highway, and railway projects.

  • Drilling operations in narrow or complex tunnel environments.

  • Rock bolting and stabilization in underground construction.
