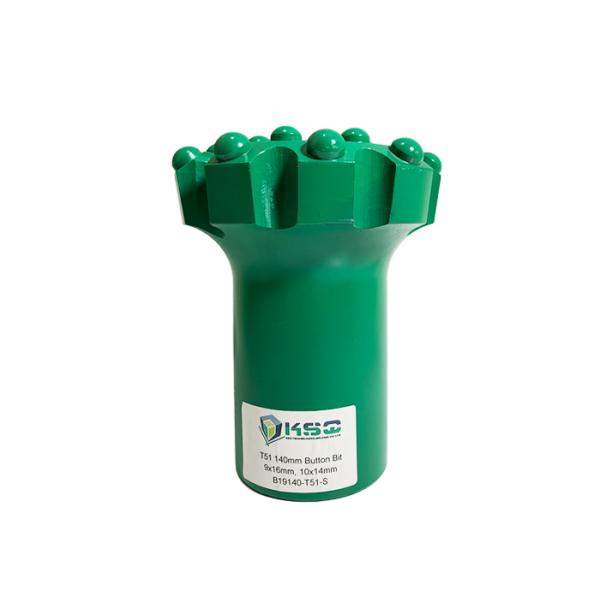

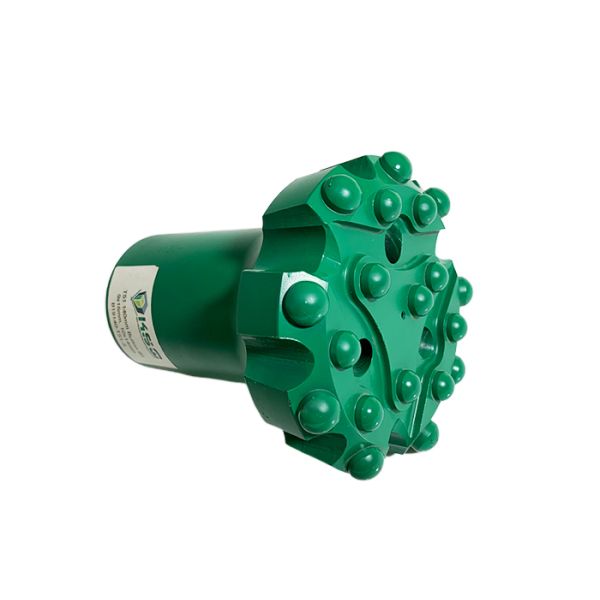

Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons
Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons
Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons
Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons
Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons
Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons
Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons
Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons
Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons
Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons
Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons
Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons
Specifications
Brand Name :
MIROC by KSQ
Model Number :
B19140-T51-S
Certification :
ISO9001
Place of Origin :
China (Mainland)
MOQ :
5 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Pieces per Year
Delivery Time :
5-15 Working Days
Packaging Details :
Carton Box or Wooden Box
Product Name :
Thread Button Bit
Diameter :
140mm
Use :
Ore Mining
Thread Type :
T51
Button Type :
Spherical
Color :
Green black, customized
Description

Diameter 140mm Rock Drilling Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons

Product Description:

Semi-dome bits are designed for fast penetration rates in softer rock like shale and limestone with low silica content.

Drop Center bits will help drill straighter holes in less consolidated rock.

Flat Face bits are a general purpose bit that will perform in all rock conditions but should be used especially for hard or abrasive conditions like granite, basalt, and hard limestone. Flat face bits are the best choice for drilling in abrasive rock.

Bit Face Shape Introduction
Drop Center Face For high penetration rates in soft to medium hard and fissured rock formations,
Low to medium air pressures. Maximum hole deviation control.
Concave Face The all-round application bit face specifically for medium hard and homogeneous rock formations.
Good hole deviation control and good fishing capacity.
Convex Face For high penetration rates m soft to medium-hard with low to medium air pressures.
It is the most resistance to steel wash. And many reduce the load and wear on the gauge buttons.
But poor hole deviation control.
Double Gauge Face This kind face shape is suitable for fast penetration rates in medium to hard rock formations.
Designed for high air pressures and good resistance to steel wash step gauge bit.
Flat Face Bit This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressure.
Good penetration rates are resistance to steel wash.

Products Parameters:

Product Name: Thread Button Drill Bit
Diameter: 140mm
Button Size: Front 10*14 mm Gauge 9*16mm
Thread: T51
Flushing Hole: 3 Front and 1 Side
Application: Button drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
Weight: 15 kg
Button Type: Spherical
Body Type: Normal (Not Retrac)
Face Type: Flat face
Material: Alloy steel bar 45CrNiMoV and tungsten carbide tips YK05
MOQ: No requirement for testing and trial order

We can design and manufature according to your requirment of diameter, number air holes and carbide button shape

Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons

Diameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert ButtonsDiameter 140mm Rock Drill Button Bit Drop Center T51 Mining Bit with 19 Cemented Carbide Insert Buttons

Specification of other Retrac Button Bits:

Bit Dia.(mm) Thread NO. X Button Dia. NO.Flushing Holes(PCS) Weight(KG)
Gauge Front Side Front
51 R32 5×11 2×10 2 1 1.2
51 R32 6×10 3×9 　 3 1.2
57 R32 6×11 3×10 　 3 1.6
64 R32 6×11 3×11 1×9 1 3 2
64 T38 6×12 3×11 1 2 2
64 T38 8×10 4×10 1×9 　 4 2
76 T38 6×12 4×11 2 2 3.1
76 T38 8×11 4×11 1×11 　 4 3.1
76 T45 8×12 4×11 2 2 3.2
76 T45 8×12 4×11 1×11 　 4 3.2
78 T38 8×12 4×11 1×11 　 4 3.5
89 R32 8×12 5×11 　 2 4.1
89 R32 8×12 4×11 2×10 　 4 4.1
89 T38 8×12 5×12 2 2 4.8
89 T38 8×12 4×11 2×10 　 4 4.8
89 T45 8×12 6×12 2 2 5.1
89 T45 8×13 4×12 1×12 　 4 5.1
89 T51 8×12 6×12 2 2 5.1
89 T51 8×13 4×13 1×12 　 4 5.1
102 T45 8×12 7×12 　 2 6.5
102 T45 9×13 9×11 　 3 6.8
102 T45 8×14 4×12 2×11 　 4 6.8
102 T51 8×12 7×12 　 2 7.1
102 T51 9×13 9×11 　 3 6.5
102 T51 8×14 4×12 2×11 　 4 7.3
105 T45 8×14 6×13 　 2 7.1
115 T45 8×14 4×13 3×12 　 4 7.8
115 T45 9×14 10×12 　 3 7.9
115 T51 9×14 10×12 　 3 7.9
115 T51 8×14 7×13 　 2 9.6
115 T51 8×14 4×12 2×12 　 4 10.2
127 T45 8×14 8×13 　 2 11
127 T45 9×15 10×13 　 3 12.3
127 T51 9×15 10×13 　 3 12.3
127 T51 8×15 8×13 　 2 12
127 T51 8×14 4×14 4×12 　 4 12
