Crawler Excavator Attachment Hydraulic Drum Cutter For 5-50 Ton EX200
Crawler Excavator Attachment Hydraulic Drum Cutter For 5-50 Ton EX200
Crawler Excavator Attachment Hydraulic Drum Cutter For 5-50 Ton EX200
Crawler Excavator Attachment Hydraulic Drum Cutter For 5-50 Ton EX200
Specifications
Brand Name :
Dopro
Model Number :
DPXTG60
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1
Price :
60-6000
Supply Ability :
6000 Pcs Per Month
Delivery Time :
3-7 Working Days
Packaging Details :
Export Wooden Cases /Pallet
Oem :
Available,Support
Color :
Customer Required,Requirement
Warranty :
12 months
Application :
Crawler Excavator,Engineering Machine Excavator
Material :
400+Other Brands Standard Wearing Materials.
After-sales service provided :
Online support,Video technical support
Condition :
New
Packing :
Pallet,Wooden Box
Usage :
load or unload sand or something else
Capacity :
Customer Required
Product name :
Drum Cutter
Description

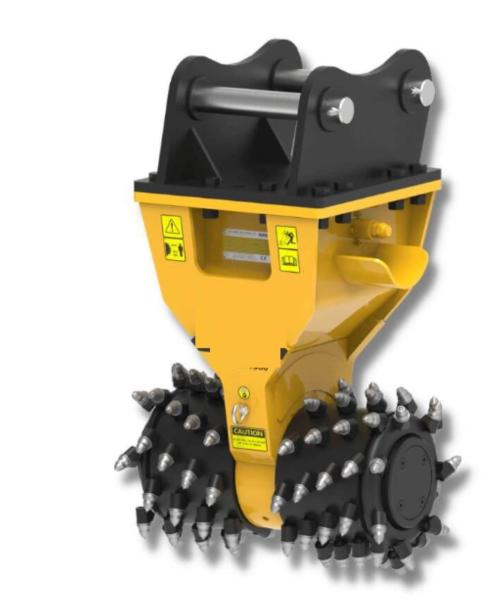

Hydraulic drum cutter excavator attachment for 5-50 ton EX200



What is a drum cutter used for?

A drum cutter is an attachment where rotating drums equipped with picks, strategically positioned around the outer diameter, are rotated by a hydraulic motor at several hundred revolutions per minute to cut rock, concrete or frozen ground.


Milling excavators are divided into horizontal milling excavators and vertical milling excavators. Widely used in open-pit coal mines and tunnel excavation

Cutting and contour correction, channel trench milling, asphalt concrete pavement milling, rock and frozen soil milling, tree roots

Various construction fields such as milling, steel industry, forestry, etc,


Characteristics of longitudinal milling excavator

Application scope:

Concrete with a small amount of steel reinforcement, medium hardness rock, weathered rock, gypsum, coal rock, iron slag, etc.

1. Low noise, low vibration.

2. Construction safety, high efficiency, small particles excavated by milling, can be directly used as backfill material.

3. Flexible application, can replace different milling and excavation cutterheads, trenching milling and excavation wheels, and rocks according to the working environment

Saw discs, etc. Easy and convenient replacement.

Model Unit DPAD200 DPAD400 DPAD600 DPAD800 DPAD1000 DPAD1200
SuitableEcavator ton 1~3 4~9 10~17 18~24 25~32 33~45
MaximumInput Power kW 22 44 41 70 110 140
Maximum How Mmin 650 1,000 1,320 3200 4,600 5,400
Recommended Fow Vmin 400 800 1,200 2200 3,200 3,600
Maximum Pressure bar 400 400 400 400 400 400
Output Shaft Torque bar 3,750Nmg320 4.288Nma320 6320Nm@320 14272Nm@320 21,376Nma320 37830Nma350
Pdk Force bar 21,8kNa320 24.9kNa320 26,6kNa320 44,2kNa320 63,2kNa320 104.1kNa350
Output Shaft Speed Mmin 500rpmg40 95,0rpmg80 95,0rpmg120 780rpmg220 76,0rpm@320 53,0rpm@360
Pd Speed Vmin 0,9m/s@40 1,7m/s@80 24m/sa120 2,2m/sa220 2,7m/sa320 20m/sa360
UnitWeight kg 181 1925 595 1.17 1.444 2.458
No.ofPdks mm
Shank		 32(19,4) 32(194) 64(19,4 64(25,4) 60(38/30) 54(38/30)


Suit for Various models of excavator
YUCHAI YC35YC50YC55YC60YC65YC85YC135YC230
JCB JS130JS210JS220JS290JS330
HYUNDAI R55R60R80R130LC35R200R2005R210R2157/9R2205R225LC7/9R290
R290R290LC7R300LCR305LCR330LCR375R360LC7R450LC
CATERPILLAR CA*T305.5CA*T306CA*T307CA*T308CA*T312CA*T315CA*T320CA*T323CA*T324
CA*T325CA*T326CA*T330CA*T336CA*T345CA*T349CA*T365CA*T374CA*T390
KOMATSU PC45PC50PC55PC56PC60567PC608PC708PC78PC1003PC1206
PC1307PC2007/8PC220PC270PC240PC3006/7PC360PC4006/7/8 PC4506
PC6006PC6503PC650PC800PC1000PC1200PC1250
ZXAIS/HITACAI EX35EX40EX55EX60EX603ZX200ZX210ZX250ZX290ZX330ZX470EX1000EX1200
EC EC55EC60EC140BPEW145BPEW160BBEC210EC240
EC290EC360LCEC380.EC460EC480EC700
KOBELCO SK35SK50SK60SK75SK100SK120SK200123456SK230SK250SK260SK280
SK300SK330SK3306SK350SK400SK450SK480
DOOSAN/DAEWOO DH35DH55DH60DH55DH60DH80DH807DH80GOLDDH150
DH200DH22035DH2805DX60DX200DX225DX260DH290DH360DH420DH500
SUMITOMO SH55SH60SH75SH50SH100SH120SH200
SH20035SH22023SH280SH300SH350SH400SH450
LIUGONG CLG904CLG9055CLG906CLG907CLG9075CLG908CLG915CLG150
CLG920CLG921CLG922CLG225CLG924CLG925CLG933CLG936CLG939
CLG942 CLG948CLG950CLG952CLG200CLG205CLG220CLG225
KUBOTA KX135KX185KX155KX161KX163KX165KX183
IHI IHI35IHI50IHI60IHI55IHI80IHI100
XCMG XE55XE60XE65XE75XE80XE85XE135XE150XE155XE200XE205XE215
XE225XE245XE270XE305XE335XE370XE380XE400XE470XE490 XE700
YANMAR ViO35ViO55ViO75
cx CX50CX55CX58CX75CX210CX240CX290CX330
KATO HD820HD1023HD1430HD2045HD700
SANY SY55SY60SY65SY70SY75SY85SY95SY115SY135SY155SY195SY200SY205SY215
SY220SY225SY235SY245SY285SY305SY335SY365SY375 SY395SY415SY485
