Shear Resistance Rock Wool for Metal Sandwich Panel Core
Shear Resistance Rock Wool for Metal Sandwich Panel Core
Specifications
Tensile Strength :
≥150-200 kPa
Density :
100-120 kg/m³
Hydrophobic Rate :
≥99.0%
Payment Terms :
L/C,T/T
Compression Strength :
≥70-100 kPa
Thermal Conductivity :
≤0.045 W/m*K
Shear Strength :
≥60-80 kPa
Place of Origin :
china
MOQ :
1 container.
Description

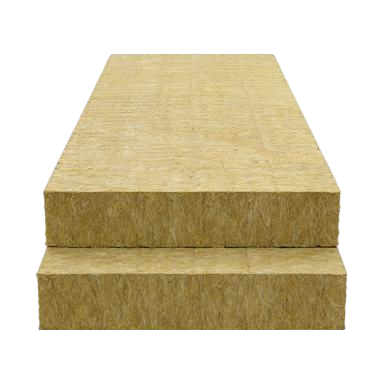

Shear Resistance Rock Wool for Metal Sandwich Panel Core
Product Overview

Our sandwich panel rock wool core delivers high shear strength to meet structural load-bearing requirements for metal-faced sandwich panels. Featuring advanced 3D pleating technology, it provides exceptional shear strength perpendicular to the panel surface, creating an integrated load-bearing structure with metal facings.

Applications
  • Core for metal sandwich panels in various building facades
  • Core for long-span steel structure roof sandwich panels
  • Sandwich panels in industrial plants
  • Sandwich panel applications requiring structural shear resistance
Technical Specifications
Parameter CL100 CL120
Density (kg/m³) 100 120
Tensile Strength (kPa) ≥150 ≥200
Compression Strength (kPa) ≥70 ≥100
Shear Strength (kPa) ≥60 ≥80
Acidity Coefficient ≥2.0
Thermal Conductivity (W/m·K, 25°C) ≤0.045
Hydrophobic Rate (%) ≥99.0
Combustibility A1
Short-term Water Absorption (kg/m², Partial Immersion) ≤0.4
Mass Moisture Absorption (%) ≤0.3
pH (Aqueous Extract) 7.0 - 9.5
Shear Resistance Rock Wool for Metal Sandwich Panel Core
Key Features
Structurally Reliable

3D pleating technology delivers up to 80kPa shearing strength with strong bonding between core and facings, effectively resisting interlayer shear deformation.

Delamination Prevention

Core and metal facings form an integrated structure, preventing separation under wind, seismic, and thermal loads.

Fire Protection

Meets Class A1 non-combustible standard with no burning or toxic fumes, meeting building fire codes.

Excellent Processability

High flatness ensures precise cutting, no edge chipping, suitable for continuous lamination production lines.

Long-Term Durability

High acidity coefficient ensures corrosion and aging resistance, matching the service life of metal facings.
