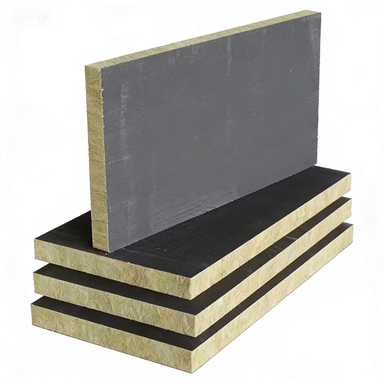

High Point Load Glass Fiber Mat Faced Fireproof Rock Wool Board
High Point Load Glass Fiber Mat Faced Fireproof Rock Wool Board
Specifications
Point Load :
≥900 N, ≥1200 N
Compression Strength :
≥60 kPa, ≥80 kPa
Density :
160 kg/m³, 180 kg/m³
MOQ :
1 container.
Acidity Coefficient :
≥2.0
Place of Origin :
china
Payment Terms :
L/C,T/T
Hydrophobic Rate :
≥99.0%
Thermal Conductivity :
≤0.040 W/m·K
Description
High Point Load Glass Fiber Mat-Faced Fireproof Rock Wool Board – Concentrated Load + Surface Reinforcement · Airport/Convention/Steel Structure Roofing System
Product Overview

Our high point load glass fiber mat-faced roof fireproof rock wool board combines ultimate compressive strength with surface reinforcement, specially engineered for roofing systems of airports, convention centers, and steel structure buildings. Featuring a high compressive strength rock wool laminated with a high-strength glass fiber mat, it withstands concentrated loads from equipment bases and hanging points while preventing fiber shedding and enhancing surface wind erosion resistance.

Applications
  • Metal roofing systems for large buildings such as airport terminals, exhibition halls, and sports venues
  • Exposed roofs and steel structure buildings in high-wind areas
  • Roof areas requiring frequent maintenance access
  • Projects with strict surface integrity requirements
Technical Specifications
Parameter HR160-JG HR180-JG
Density (kg/m³) 160 180
Point Load (N, Deformation: 5 mm) ≥900 ≥1200
Compression Strength (kPa) ≥60 ≥80
Acidity Coefficient ≥2.0 ≥2.0
Thermal Conductivity (W/m·K, 25°C) ≤0.040
Combustibility Class A1 non-combustible
Hydrophobic Rate (%) ≥99.0
High Point Load Glass Fiber Mat Faced Fireproof Rock Wool Board
Key Features
  • High Point Load Capacity: Point Load up to 1200N, designed for concentrated load areas like equipment bases and hanging points—no crushing, no settling over time.
  • Glass Fiber Mat Facing – Surface Reinforcement: High-strength glass fiber mat effectively prevents fiber shedding and enhances wind erosion and abrasion resistance, especially for exposed roofs.
  • Class A1 Non-Combustible – Dual Safety: Both rock wool and glass fiber mat are Class A1 non-combustible materials, with no burning or toxic smoke during fire, ensuring roof fire safety.
  • Moisture-Resistant & Durable: The glass fiber mat offers moisture protection, combined with high-acidity-coefficient rock wool for long-term stability in humid or salt-laden environments.
  • Installation-Friendly – Reduced Waste: The mat facing makes rock wool more durable during handling and placement, reducing edge damage and lowering material waste rates.
