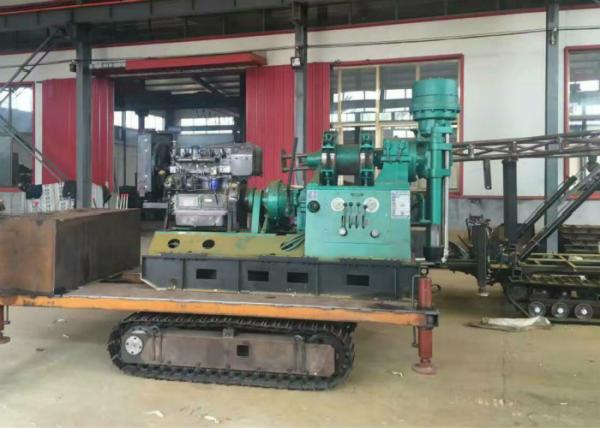

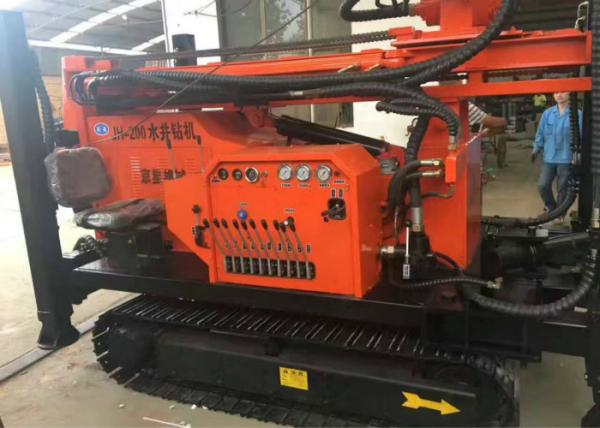

High Speed Engineering Machinery Horizontal Drilling Rig
High Speed Engineering Machinery Horizontal Drilling Rig
High Speed Engineering Machinery Horizontal Drilling Rig
High Speed Engineering Machinery Horizontal Drilling Rig
Specifications
Model Number :
XY-1A
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Delivery Time :
10-20 days working days
Payment Terms :
T/T, L/C, T/T, Western Union
Brand Name :
OEM
Certification :
ISO,CE
Type :
Rotary Drilling Rig
Color :
Customised
Voltage :
220 / 380V
Usage :
Muti-purpose
Application :
water well drilling equipment
Drilling depth :
30--180m
Drilling angle :
90°~75°
Drill weight :
610kg
Spindle stroke :
450mm
Packaging Details :
Wooden cases standard export package
Supply Ability :
Based on the detailed quotation
Description

High Speed Engineering Machinery Horizontal Drilling Rig

Features:
♦ With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
♦ The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replacedwithout shutdown, high efficiency, safe and reliable.
♦ A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole
♦ Compact structure,small volume,lightweight,high detachability,easy transportation and suitable for the operations in plains ormountion areas.

Product Description

XY-1A Horizontal Directional Drilling Rigs is a light type machine at high speed withhydraulic feeding. XY-1A (YJ) and XY-1A-1 are designed on the basisof XY-1 A.
Applications:
♦ Drillings for the general exploration and investigation of solidmineral deposit, engineering geotectonic survey and concretestructure inspection holes.
♦ Diamond drill bit, alloy drill bit and steel roller drill bit and so on areavailable for drilling according to different geological structures.
♦ When the final holes are respectively 75mm and 46mm in diameter,the rated hole depths are separately 100m and 180m. Themaximumof depth may not
exceed 110% of that drilled in each hole.Themaximum allowable hole diameter is 150 mm.

Main parameters

Unity machine parameter
Drilling depth30--180m
Drill rod caliber50 42mm
End hole caliber75 46mm
Max. open hloe caliber220mm
Drilling angle90°~75°
Drill weight (No include power)610kg
Unity machine dimensions2.1*0.9*1.3m
Spindle
spindle speed130, 300, 480, 730, 830, 1045r/min
Spindle stroke450mm
Hoist
Max.single line hoisting capacity1600kg
Single line lifting speed1.06, 0.67, 0.32m/s
Wirerope caliber13mm
Wirerope cubic measure35m
Hug floodgate caliber254mm
Hug folldgate belt width50mm
Distance between drill and hole230mm
Mud pump
TypeHorizontal single urn twin-action
Displacement170L/min
Maximum pressure1.5Mpa
Work pressure0.7Mpa
Power
Diesle engineS1105 18HP
Electric motorY160M—4 15KW
