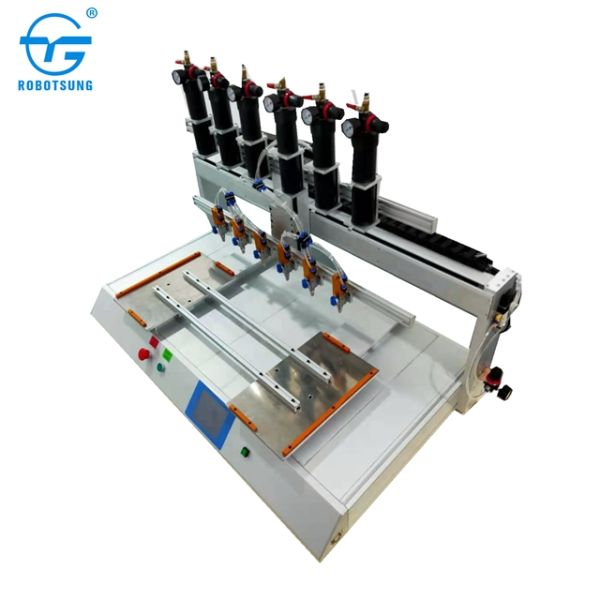

6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
Specifications
core components :
Motor
Brand Name :
Robotsung
Technical Characteristics :
hot-melt
driven type :
Electric
automatic grade :
Automatic
MOQ :
1 set
Weight (KG) :
60
packaging material :
Wood
voltage :
220 V, 110 V
application :
Commodity, Chemical, Machinery & Hardware
dimension(l*w*h) :
650*520*650MM
video outgoing-inspection :
Provided
machinery test report :
Provided
warranty :
1 Year
key selling points :
Easy To Operate
Place of Origin :
Guangdong, China
Price :
$1,550-2,500 / set
packaging type :
Case
Description
Product Description
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
Advantages:

1.Full-automatic glue dispenser can dispense through 3D and 4D path. It can quickly draw dot, line circle and all kinds of irregular figures on the surface, vertical plane, gap and spherical surface.
2.Graphics import or machine screen edit, easy to operate with high precision.
3.Big scale workstation can place multiple products, which is more efficient. Workstation can be customized according to the size of product.
4.Glue dispenser can be equipped with several dispensing heads and operate at the same time, greatly increasing dispensing efficiency.
5.Glue dispenser is applicable for all kinds of glue. Dispensing liquid such as oil paint and printing ink needs to equip additional high-capacity pressure barrel to reduce glue changing time.
6.We are a manufacturer with more than 20 years of production experience. We have excellent R&D and production ability, sound QC system and perfect after-sale service. Robotsung has become a nationwide famous brand in China.

Application:

1.Electro-acoustic industry: horn, loudspeaker, buzzer, earphone.
2.Inductance industry: small transformer, SMD transformer, inductance, relay, small coil motor.
3.Communication industry:keypad, phone shell,interphone,telephone, fax machine.
4.Computer, digital products, digital camera, MP3, MP4, electronic toy, chassis adhesion.
5.Switch, connector, wire rod, plug cable.
6.Electronics: electron component, integrated circuit, circuit board solder paste, LCD screen, etc.
7.Optics: optical lenses, magnetic head.
8.Mechanical hardware, battery box sealing, label fixing adhesion, car parts coating.
9.Food packaging.
10.LED industry.

Applicable glue:

Silicon, UV glue, AB glue, epoxy resin, instant glue, EMI conducting resin, sealant, hot glue, grease, red gum , solder paste, thermal grease, solder grease, lacquer, screw fixing agent.
Model
YS-D331E
YS-D441E
YS-D551E
YS-D461E
Working area
300*300*100
400*400*100
500*500*100
400*600*100
Control system
Independent R D
Driver
Stepper motor+sliver guideway+timing belt
Repeatability
+/-0.02-0.05mm
Air pressure
0.4-0.7Mpa
Speed
500mm/s
Power
220/110V 50/60HZ 350W
Max load
XYZ 10kg
Display
5.7inch screen
Programme
method
Screen operation /connect to PC
File total
Number unlimited,16M
I/O signal
16 inputs/16 outputs
Weight
35kg
45kg
55kg
65kg
Size
680*570*680
780*670*680
880*770*680
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
More Products
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
Company Profile
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
Certifications
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
Packing & Delivery
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
FAQ
6 Heads Dispensing System Equipment Automatic Glue Applicator Desktop Silicone Dispenser Robots for Integrated Circuits
1,Q: Why choose us? Competitive price and excellent quality,professional technical team with technical knowledge and solution will be provided whether you buy our products or not.
2,Q: How about your package? Carton or wooden case with foam 3,Q: How about your package? Carton or wooden case,depend on item weight or customer requirements, both carton and wooden case package is free. 4,Q: What is your guarantee and after-sales service? One year warranty for the machine  All life maintain and service 5,Q:What’s the leading time? (How long do you need to prepare my goods?) 1-3 working days for sample orders 3-20 working days for bulk order (based on different quantities).
