3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
Specifications
warranty :
1 Year
After-sales Service Provided :
Video Technical Support, Field installation, commissioning and training, Online support, No after-sales service, Field Maintenance and Repair Service, Free Spare Parts
Name :
cnc gluing machine
automatic grade :
Automatic
driven type :
Electric
machinery test report :
Provided
core components :
Motor, Pressure Vessel, Pump
filling material :
glue
video outgoing-inspection :
Provided
After Warranty Service :
Online support
Application :
Medical
Keywords :
silicone spray machine
Capacity :
glue applying machine
packaging type :
Case
Certification :
CE
key selling points :
High-Accuracy
MOQ :
1 set
Voltage :
220v
Weight (KG) :
200
Price :
$3,600-3,800 / set
packaging material :
Wood
Function :
Filling Capping Labeling
Place of Origin :
Guangdong, China
dimension(l*w*h) :
L650*650*550MM
Weight :
90
filling accuracy :
5%
Product name :
Bottle Filling Capping
application :
Chemical, Commodity
Brand Name :
Robotsung
Description

3 axis ab epoxy machine,epoxy doming machine with auto glue mixing system

Application

Glue robot widely used in the industrial production, such as PCB Board,speaker,MP3,MP4,LCD Display,integrated circuits, printed circuit boards, electronic components, automotive parts, handbag, packing box etc.

Glue robot is suitable glue:UV glue,Silicone ,epoxy,red glue,AB glue,COB black glue, Conductive adhesive and so on.

Features

1.English touch panel, easy operation.

2.Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.

3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.

4.The dispensing head set the micro touch switch, convenient operation; no air pressure, power can work.

5. Precise stepper motor, numerical control available

6.Apply three-axis robot to control the dispensing position to ensure high precision of glue dispensing

7.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.

8.Have air clean device,can gurrantee the material clean and dry.

Specification

1. Man-machine interface, easy to operate.

2. 3 axis movement

3. Reasonable price, high quality

4.1 year warranty

Model YS-D551E YS-D331E
Work area(X*Y*Z) 500*500*100mm 300*300*100mm
Max. speed 500mm/sec
Resolution 0.01mm
Repeatability ±0.01mm
Operation interface LCD touch panel/Handhold control box
Drive mode Micro stepping motor/belt
Power AC220V/110V 50-60HZ
Size 650*650*550mm 460*450*480mm
Net weight About 90kg 70kg
Operation environment

Temperature:5-40 degrees Celsius

Humidity:20-90%RH

Principle

Compress the glue into the feed pipe connected to Piston Chamber by conpressing air into the glue botton(injector). When the piston is in the upstroke, the piston chamber is filled with glue.And When the piston is pushed down, the glue is extruded from the needle nozzle.

AB mixer machine

AB glue mixer

3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng

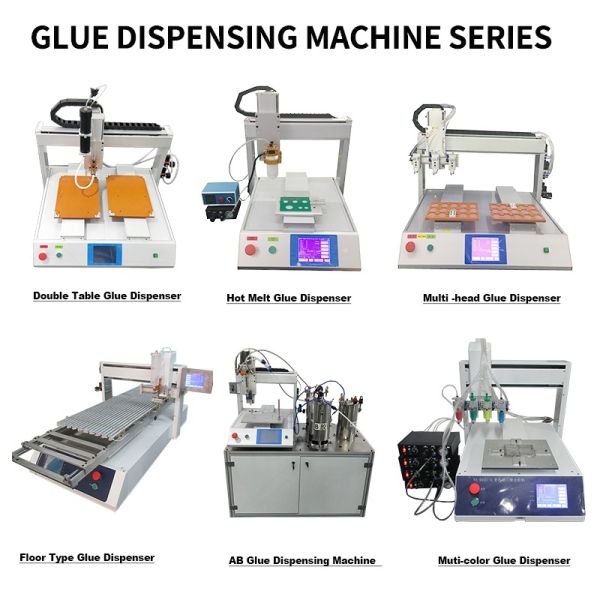

Glue machine and AB glue mixer pictures:

Two gear pump for AB glue without fillers

3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng

Two Screw pump for AB glue with fillers

3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng

Floor type Glue machine for AB glue with fillers;

3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng

Packaging & Shipping

We can provide:

- Good quality carton packing

- Double check before shipping

- Safely Shipping method,such as DHL /FEDEX/TNT /UPS

- Air Freight, Ocean Freight or cargo forwarder service

3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng

Our Services

Sales Focus:

- Quality Guarantee

( one year warranty for Electrical Screwdriver and two years for the motor)

- Good after-sales service

- Competitive price

- Widely range of products

- Convenient payment method

FAQ

Why choose us?

1. We are manufacturer

2. Best price and considerate service

3. Fast delivery

4. All products are checked by Strictly QC department before shipping.

5. Flexible Payment Method: T/T, PayPal, West Union, etc.

3-axis AB Epoxy Automatic Glue Spraying Machine Electrically Driven Auto Mixing System for Bottle Domng
