Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Specifications
Certification :
CE
MOQ :
1 set
core components :
Motor
Model Number :
YS-L602
Weight (kg) :
35
Packaging Details :
wooden case
Delivery Time :
20 days
warranty :
1 Year
Place of Origin :
Guangdong, China
Price :
$1,500-1,600 / set
Payment Terms :
T/T,Western Union
Brand Name :
Robotsung
Supply Ability :
1+set+20 days
Description
Robotsung YS-L601 Z Axis Moving Screw Locking Machine, Robotic Screwdriver Auto Screwdriver Machine for M1-M6
Products Description

Introduction:

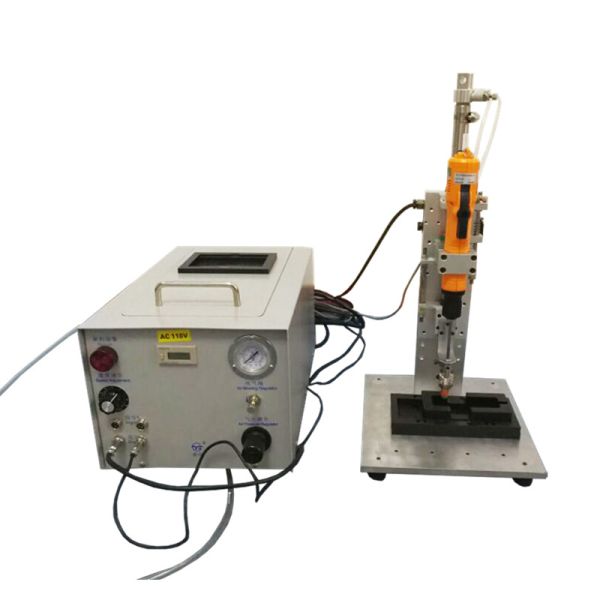

The z axis moving type automatic screw locking machine needs to place the product on table manually.It is controlled by foot switch and lock screw automatically .Then manually take out the product, place the next product, and repeat.

  • The screws are queued by the feeding system and distributed to the collet by pipe.
  • Electric screw driver is controlled by foot switch to up and down.
  • Electric screwdriver lock the screw on products.

Features:

  • Save strength.Just put products on table,click foot switch,machine finish locking and take the products.Greatly reduce the labor intensity of workers.
  • Save much time for moving hand, fetching screws, moving screws, positioning screws, etc. No need to wait.
  • Clean. No need to hand fetch screws, thus won’t cause secondary pollution to screws out of stain or hand sweat. Screws not easy to rust.
  • Applicants scope big:except lock screw on flat surface.it can lock screw at deep position too.Also it is suitable for big and heavy size screw.
Product Parameters
Volume of screw pocket M2X65000PCs Air pressure 2-3KGF/Cm
Efficiency 50-70PCS/MIN Weight 30kg
Voltage 220V or 110V as you required Noise less than 65 decibels
The screw out speed 0.75 seconds/piece Conveying distance 1-4 meters
