Specifications
MOQ :
1 set
machinery test report :
Not Available
voltage :
AC220V
Applicable Industries :
Machinery Repair Shops, Construction worksﾠ, Advertising Company
Price :
$1,900-2,000 / set
Marketing Type :
New Product 2020
key selling points :
Easy To Operate
Condition :
New
packaging type :
Case
Weight :
35 KG
Certification :
CE
automatic grade :
Automatic
Type :
Gluing Machine
application :
Commodity, Machinery & Hardware, APPAREL, Textiles
driven type :
Electric
Brand Name :
Robotsung
Warranty of core components :
1 Year
video outgoing-inspection :
Provided
warranty :
1 Year
Showroom Location :
None
core components :
Motor
Place of Origin :
Guangdong, China
packaging material :
Wood
dimension(l*w*h) :
68*57*68CM
Description

4 Axis CE certificated high quality automatic glue dispensing robots with rotary nozzle

Eseries Glue Machine

Applicable glue:

Silicon, UV glue, AB glue, epoxy resin, instant glue, EMI conducting resin, sealant, hot glue, grease, red gum , solder paste, thermal grease, solder grease, lacquer, screw fixing agent.

Specifications:

Model

YS-D331E-FW

YS-D441E-FW

YS-D551E-FW

YS-D461E-FW

Working area

300*300*100

400*400*100

500*500*100

400*600*100

Control system

Independent R D

Driver

Stepper motor+sliver guideway+timing belt

Repeatability

+/-0.02-0.05mm

Air pressure

0.4-0.7Mpa

Speed

500mm/s

Power

220/110V 50/60HZ 350W

Max load

XYZ 10kg

Display

5.7inch screen

Programme method

Screen operation /connect to PC

File total

Number unlimited,16M

I/O signal

16 inputs/16 outputs

Weight

35kg

45kg

55kg

65kg

Size

680*570*680

780*670*680

880*770*680

Advantages:

1. Full-automatic glue dispenser can dispense through 3D and 4D path. It can quickly draw dot, line circle and all kinds of irregular figures on the surface, vertical plane, gap and spherical surface.

2. Graphics import or machine screen edit, easy to operate with high precision.

3. Big scale workstation can place multiple products, which is more efficient. Workstation can be customized according to the size of product.

4. Glue dispenser can be equipped with several dispensing heads and operate at the same time, greatly increasing dispensing efficiency.

5. Glue dispenser is applicable for all kinds of glue. Dispensing liquid such as oil paint and printing ink needs to equip additional high-capacity pressure barrel to reduce glue changing time.

6. We are a manufacturer with more than 20 years of production experience. We have excellent R&D and production ability, sound QC system and perfect after-sale service. Robotsung has become a nationwide famous brand in China.

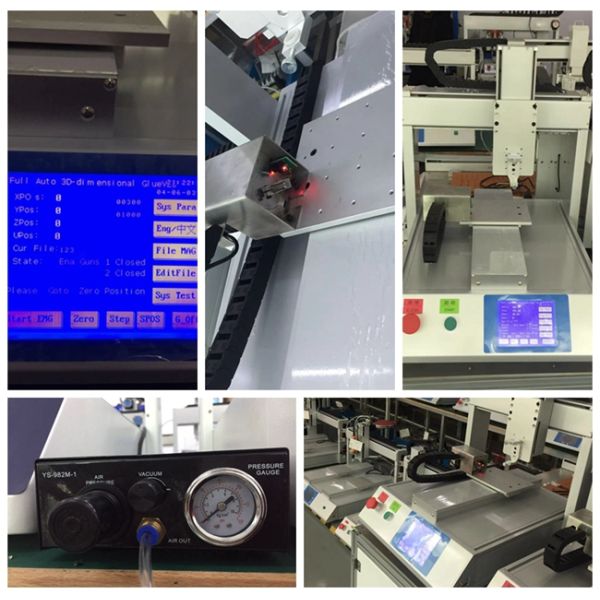

Glue Machine pictures:

Top Selling Products 4 Axis CE Certificated High Quality Automatic Glue Dispensing Robots with Rotary Nozzle

Packaging & Shipping

Shipping & Package:

By DHL,Fedex,TNT,UPS or special line.

For packing size and weight,please contact sales
