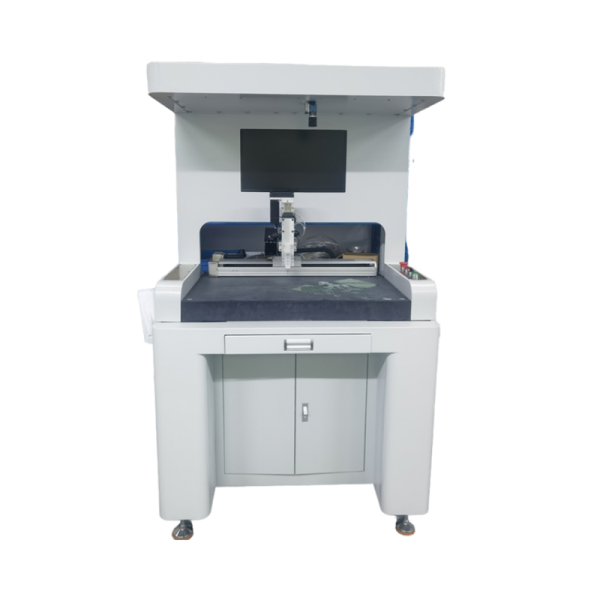

PC Controlled CCD Visual PVC Gluing Machine,glue Coating Machine for Paint,pvc Glue
PC Controlled CCD Visual PVC Gluing Machine,glue Coating Machine for Paint,pvc Glue
Specifications
Place of Origin :
Guangdong, China
Warranty of core components :
1 Year
Weight :
380 KG
Price :
$9,000-9,999 / set
core components :
PLC, Engine, Motor, Gear
Power Supply :
AC220/110v,50HZ,360w
video outgoing-inspection :
Provided
key selling points :
High-Accuracy
Move speed :
XYZ max 500mm/sec
Applicable Industries :
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms
Name :
glue dispenser automatic machine
MOQ :
1 set
working table :
one
Certification :
robot glue dispenser
warranty :
2 Years
Showroom Location :
None
machinery test report :
Provided
automatic grade :
Automatic
dimension(l*w*h) :
110*130*188CM
Move Accuracy :
±0.03mm
Type :
Gluing Machine
packaging type :
Case
Application :
High-precision glue dispenser
Product Name :
Vision dispensing machine
Brand Name :
Robotsung
voltage :
220V/110V
driven type :
Electric
packaging material :
Wood
Condition :
New
application :
Machinery & Hardware
XYZ working area :
300 X300 X100(mm)
Description
PC Controlled CCD Visual PVC Gluing Machine,glue Coating Machine for Paint,pvc Glue
Applications
PC Controlled CCD Visual PVC Gluing Machine,glue Coating Machine for Paint,pvc Glue
Specification
Machine name
Visual glue machine
Size
110*130*188cm
Working area
300*300*100mm
Camera No.
1
Visual size
300*300mm
Weight
400KG
Tank size
30ml barrel,A/B TANK 5L,10L,20L for your option
Mixing ratio
1:1-10:1 adjustable
Control system
PC
Aire pressure
0.5-0.8MPA

Feature

1. No mold is required to fix the product, the product can be placed in any direction, one-time whole-board positioning mode, no need to scan individual products one by one, positioning the entire work platform only takes 2 seconds, saving a lot of scanning time and improving production efficiency. 2. Graphical programming software, the software operation is simple and easy to learn, new products only need about 5 minutes from positioning programming to dispensing production, saving a lot of programming time and improving production efficiency. 3. Dual-camera dual-working platform cyclic production, the equipment works uninterruptedly, saving intermediate loading and unloading time, and improving production efficiency. 4. Equipped with brand industrial control computers, imported Panasonic servo motors, and imported screws to ensure the operating accuracy of the equipment. 5. High-precision constant temperature control glue system, glue is not drawn, no glue is hung, and the glue output of each product is consistent. 6. Z-axis does not move non-contact dispensing mode, the dispensing product is completely non-contact with the dispensing head, improving the quality and efficiency of the dispensing product.
Details Images
PC Controlled CCD Visual PVC Gluing Machine,glue Coating Machine for Paint,pvc Glue

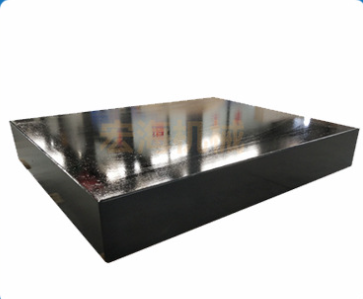

Marble work surface, surface flatness +-0.05-0.1mm, can ensure the smoothness of glue dispensing
PC Controlled CCD Visual PVC Gluing Machine,glue Coating Machine for Paint,pvc Glue

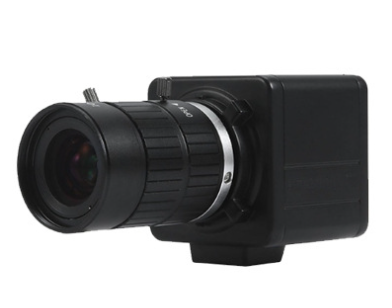

1200W industrial camera, fast positioning, high-definition imaging
PC Controlled CCD Visual PVC Gluing Machine,glue Coating Machine for Paint,pvc Glue

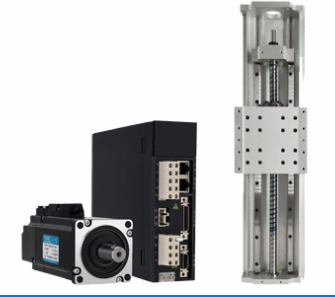

The servo motor + screw rod form the running module, with a running speed of 500mm/s and a repeat positioning accuracy of +/-0.01mm
PC Controlled CCD Visual PVC Gluing Machine,glue Coating Machine for Paint,pvc Glue

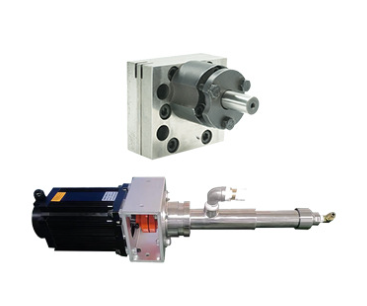

Precision metering pump, AB glue ratio accuracy +/-2%
