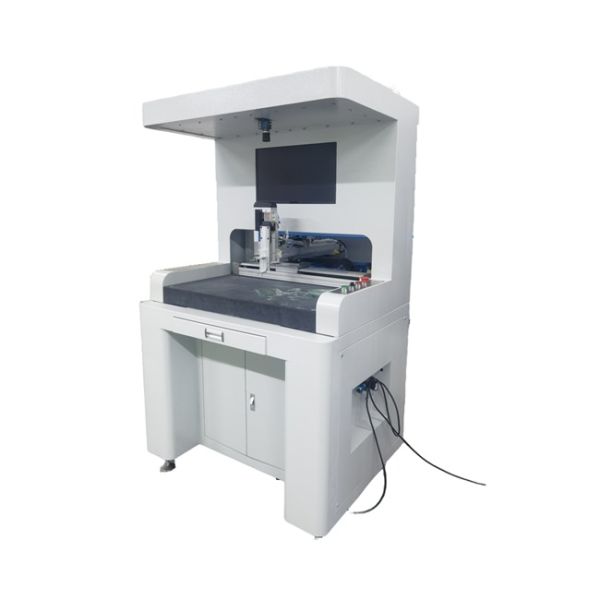

CCD Fully Automatic Visual Dispensing Machine for Epoxy Resin AB Glue Soft Glue Hard Glue Drop Plastic
CCD Fully Automatic Visual Dispensing Machine for Epoxy Resin AB Glue Soft Glue Hard Glue Drop Plastic
Specifications
Brand Name :
Robotsung
Showroom Location :
None
automatic grade :
Automatic
After-sales Service Provided :
Engineers available to service machinery overseas
machinery test report :
Provided
video outgoing-inspection :
Provided
Working area(X/Y/Zmm) :
400*300MM
packaging material :
Paper
voltage :
220V
core components :
Motor
Place of Origin :
Guangdong, China
Weight :
400 KG(881.85lb)
MOQ :
1 set
Price :
$8,000-10,000 / set
key selling points :
Easy To Operate
Condition :
New, New
warranty :
1 Year
Type :
automatic 3 axis glue dispenser, Gluing Machine
Warranty of core components :
1 Year
application :
Machinery & Hardware
Drive mode :
Micro stepping motor
Applicable Industries :
Other
packaging type :
Cartons
driven type :
Electric
dimension(l*w*h) :
1100mm*1100*1850
Max dispensing speed :
45k/H
Description
CCD Fully Automatic Visual Dispensing Machine for Epoxy Resin AB Glue Soft Glue Hard Glue Drop Plastic
Applications
CCD Fully Automatic Visual Dispensing Machine for Epoxy Resin AB Glue Soft Glue Hard Glue Drop Plastic
Specification
Machine name
Visual glue machine
Size
110*130*188cm
Working area
300*300*100mm
Camera No.
1
Visual size
300*300mm
Weight
400KG
Tank size
30ml barrel,A/B TANK 5L,10L,20L for your option
Mixing ratio
1:1-10:1 adjustable
Control system
PC
Aire pressure
0.5-0.8MPA

Feature

1. No mold is required to fix the product, the product can be placed in any direction, one-time whole-board positioning mode, no need to scan individual products one by one, positioning the entire work platform only takes 2 seconds, saving a lot of scanning time and improving production efficiency. 2. Graphical programming software, the software operation is simple and easy to learn, new products only need about 5 minutes from positioning programming to dispensing production, saving a lot of programming time and improving production efficiency. 3. Dual-camera dual-working platform cyclic production, the equipment works uninterruptedly, saving intermediate loading and unloading time, and improving production efficiency. 4. Equipped with brand industrial control computers, imported Panasonic servo motors, and imported screws to ensure the operating accuracy of the equipment. 5. High-precision constant temperature control glue system, glue is not drawn, no glue is hung, and the glue output of each product is consistent. 6. Z-axis does not move non-contact dispensing mode, the dispensing product is completely non-contact with the dispensing head, improving the quality and efficiency of the dispensing product.
Details Images
CCD Fully Automatic Visual Dispensing Machine for Epoxy Resin AB Glue Soft Glue Hard Glue Drop Plastic

Marble work surface, surface flatness +-0.05-0.1mm, can ensure the smoothness of glue dispensing
CCD Fully Automatic Visual Dispensing Machine for Epoxy Resin AB Glue Soft Glue Hard Glue Drop Plastic

1200W industrial camera, fast positioning, high-definition imaging
CCD Fully Automatic Visual Dispensing Machine for Epoxy Resin AB Glue Soft Glue Hard Glue Drop Plastic

The servo motor + screw rod form the running module, with a running speed of 500mm/s and a repeat positioning accuracy of +/-0.01mm
CCD Fully Automatic Visual Dispensing Machine for Epoxy Resin AB Glue Soft Glue Hard Glue Drop Plastic

Precision metering pump, AB glue ratio accuracy +/-2%
