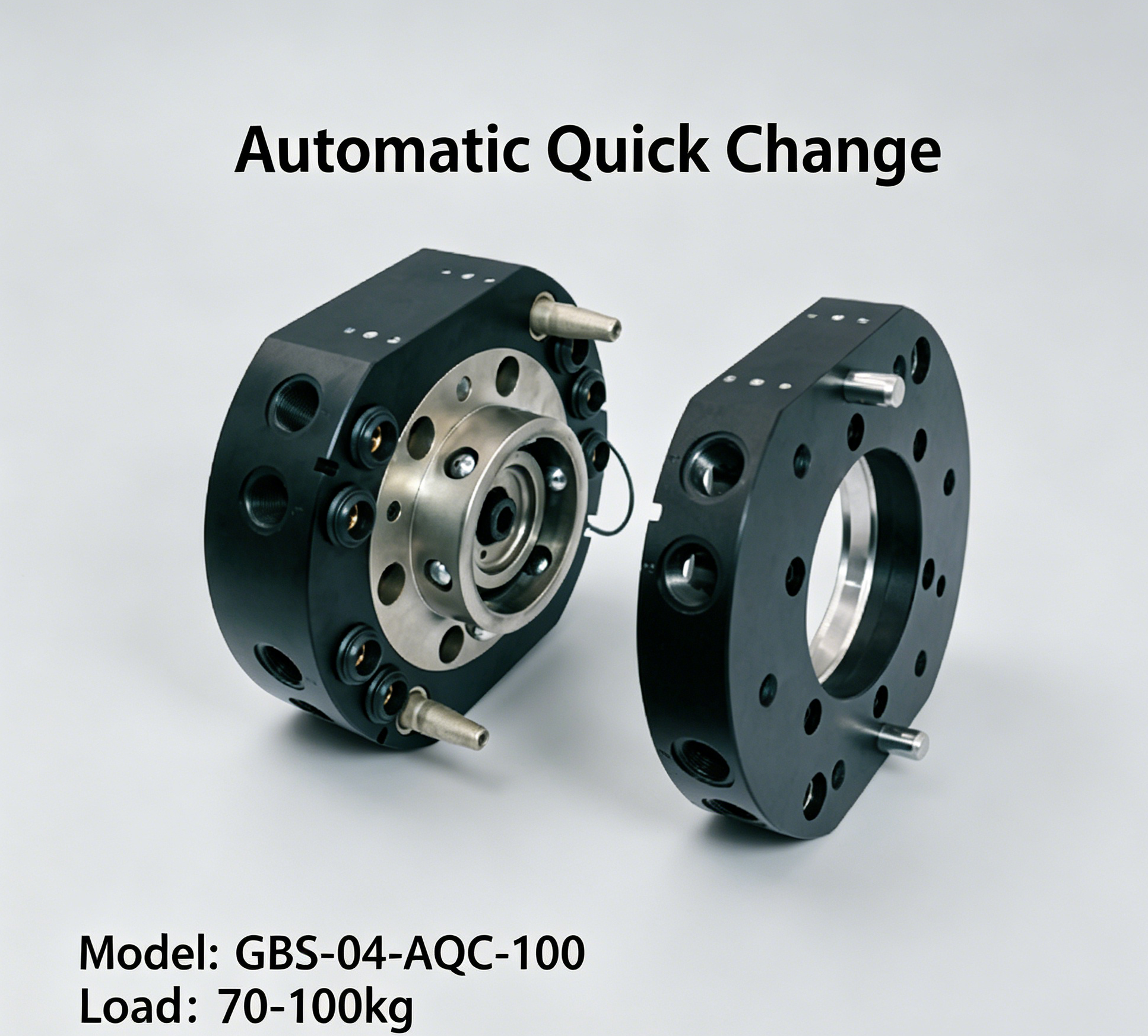

Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Specifications
machinery test report :
Not Available
Recommended Rated Load :
70-100 kg
Robot Side Weight :
3.57 kg
Brand Name :
CNGBS
type :
Automatic Tool Change System
warranty :
1 Year
Total Weight (Locked State) :
5.13 kg
video outgoing-inspection :
Provided
Locking Force @ 80 psi (5.5 bar) :
12000 N
Positioning Repeatability :
±0.015 mm
material :
Aviation aluminum alloy/Alloysteel/stainless steel
Gripper Side Weight :
1.56 kg
MOQ :
1 set
weight (kg) :
5.13
Maximum Allowable Angular Off set :
±1°
Straight-through Air Port(quantity) :
(7) G3/8
Static Bearing Torque (Z Axis) :
538 Nm
Place of Origin :
Shanghai, China
Static Bearing Torque (X & Y Axis) :
720 Nm
Price :
$500-680 / set
Description
Product descriptions from the supplier

Automatic Tool Change System: Simplifies tool swapping for efficient palletizing and handling.

70-100 kg Rated Load: Handles heavy loads with precision and reliability.

±0.015 mm Positioning Repeatability: Ensures high accuracy in robotic arm operations.

5.13 kg Total Weight (Locked State): Lightweight yet sturdy design for easy maneuvering.

1.56 kg Gripper Side Weight: Balanced weight distribution for optimal performance.

Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
Quick Change Robot End-Effector Plate Easy Tool Swapping for Palletizing and Handling Robotic Arms
