Huayan E05-L 6-Axis 5kg Collaborative Robot 3D Vision Camera Random Bin Picking Auto Loading Small Automotive Metal Parts IP54
Huayan E05-L 6-Axis 5kg Collaborative Robot 3D Vision Camera Random Bin Picking Auto Loading Small Automotive Metal Parts IP54
Huayan E05-L 6-Axis 5kg Collaborative Robot 3D Vision Camera Random Bin Picking Auto Loading Small Automotive Metal Parts IP54
Huayan E05-L 6-Axis 5kg Collaborative Robot 3D Vision Camera Random Bin Picking Auto Loading Small Automotive Metal Parts IP54
Huayan E05-L 6-Axis 5kg Collaborative Robot 3D Vision Camera Random Bin Picking Auto Loading Small Automotive Metal Parts IP54
Huayan E05-L 6-Axis 5kg Collaborative Robot 3D Vision Camera Random Bin Picking Auto Loading Small Automotive Metal Parts IP54
Huayan E05-L 6-Axis 5kg Collaborative Robot 3D Vision Camera Random Bin Picking Auto Loading Small Automotive Metal Parts IP54
Huayan E05-L 6-Axis 5kg Collaborative Robot 3D Vision Camera Random Bin Picking Auto Loading Small Automotive Metal Parts IP54
Huayan E05-L 6-Axis 5kg Collaborative Robot 3D Vision Camera Random Bin Picking Auto Loading Small Automotive Metal Parts IP54
Huayan E05-L 6-Axis 5kg Collaborative Robot 3D Vision Camera Random Bin Picking Auto Loading Small Automotive Metal Parts IP54
Huayan E05-L 6-Axis 5kg Collaborative Robot 3D Vision Camera Random Bin Picking Auto Loading Small Automotive Metal Parts IP54
Huayan E05-L 6-Axis 5kg Collaborative Robot 3D Vision Camera Random Bin Picking Auto Loading Small Automotive Metal Parts IP54
Specifications
Robot Material :
Aluminum Alloy
production capacity :
Based on product applications
dimension(l*w*h) :
75*50*50cm
Max. Working Reach (mm) :
950
weight (kg) :
60
Communication :
TCP/IP, Modbus,Profinet(Optional), Ethernet/IP(Optional)
Degrees of Freedom :
6 Axis
Place of Origin :
Shanghai, China
Material :
Aluminum Alloy
voltage :
220 V
video outgoing-inspection :
Not Available
MOQ :
1
Price :
€18,446.09
Compatible Product Type :
grippers, Sensors, conveyors, vision systems, end effectors, multi-purpose robots
Warranty :
1 Year
IP Rating :
IP54(Optional IP66)
Rated Payload (kg) :
5
Brand Name :
Huayan
Temperature Range :
0-50°
application :
3C Automotive Food Daily-chemical Logistics
Positioning Repeatability (mm) :
±0.02mm
Robot connection cable length :
5 m
machinery test report :
Not Available
Mounting Type :
Any Angle Mountable
core components :
Robot Body, Control Cabinet, Servo Motor, Reducer,
power(w) :
180W
Description
Product descriptions from the supplier

Recognize disordered stacked metal parts from bin, auto-judge workpiece front-reverse side.

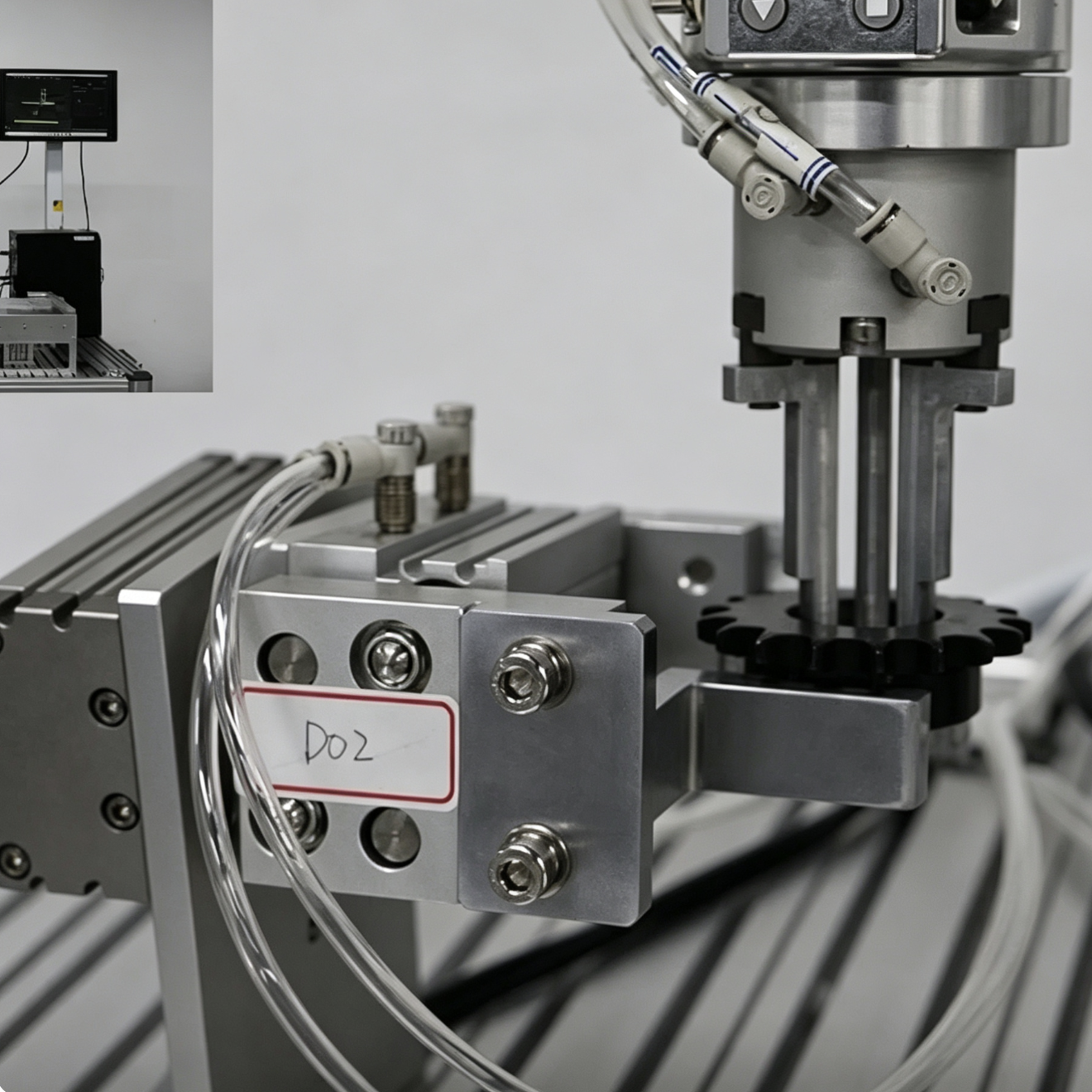

Stable precise picking & placing for small-size automotive components.

Light-weight 26kg robot body, low power consumption 180W, easy for workstation integration.

No complex fixture required, suit for flexible automatic loading for multiple small-batch products.
