Specifications
Payload :
8 KG
Robot type :
handling /assembly robot
Condition :
New
Price :
$8,200-11,000 / set
application :
Industrial Robot
Repeatability :
±0.07 mm
Protection Rating :
IP 65
Showroom Location :
China
dimension(l*w*h) :
1174.5*448.5*1226
Warranty of core components :
1 Year
Place of Origin :
Shanghai, China
Model :
GBS8-K1400
Marketing Type :
Ordinary Product
Features :
Multifunctional
After Warranty Service :
Support
Mounting type :
Floor Wall Ceiling
machinery test report :
Not Available
MOQ :
1 set
voltage :
220/380V
video outgoing-inspection :
Provided
Brand Name :
CNGBS
Product name :
Industrial Robot
Axis :
6
Warranty :
12 months
weight (kg) :
132 KG
Applicable Industries :
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Automobile manufacturing industry,
Reach :
1400 mm
production capacity :
3000
power(w) :
2 KVA
core components :
Motor, Gear, Reducer
Description

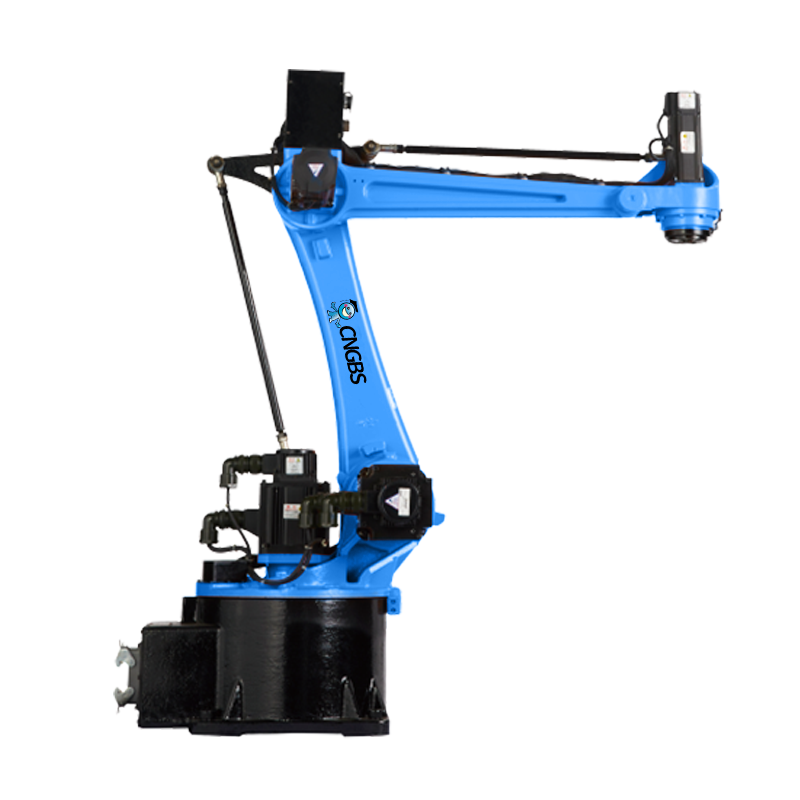

CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots

GBS8-K1400
Maximum Radius 1400mm
Payload 8kg
Repeatability ±0.07mm
Protection Rating IP 65

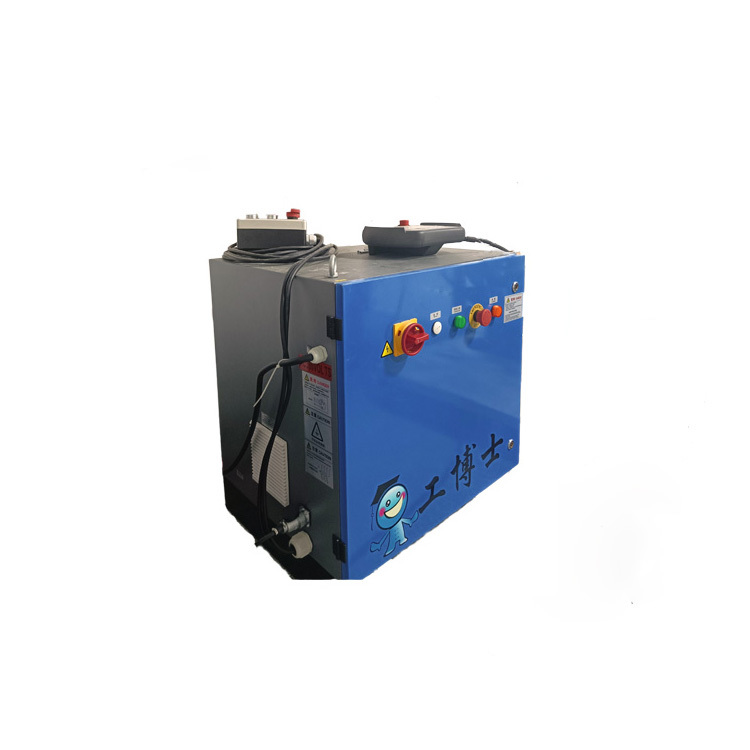

CNGBS has a full production cycle of industrial robots, including controllers, servomotors and servo drivers, high precision gearboxes and body parts.
The GBS8-K1400 belong to GBS PRESS Series.
Small in size and light in weight, similar to the Kuka 8-kg payload robot. Suitable for picking, packaging, and handling in various production lines, and also very suitable for education and training in schools.

Industrial Robot Applications

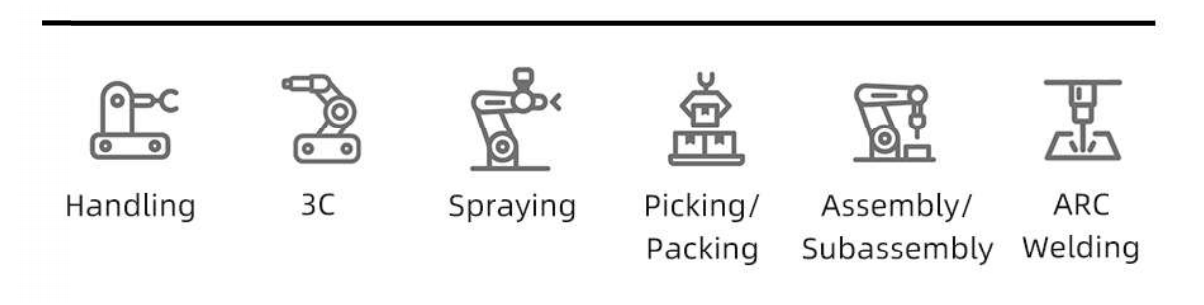

GBS8-K1400 industrial robot is suitable for commonly used applications such as handling, welding, grasping, and spraying, and can be used in factories, schools, and research institutes.
CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots

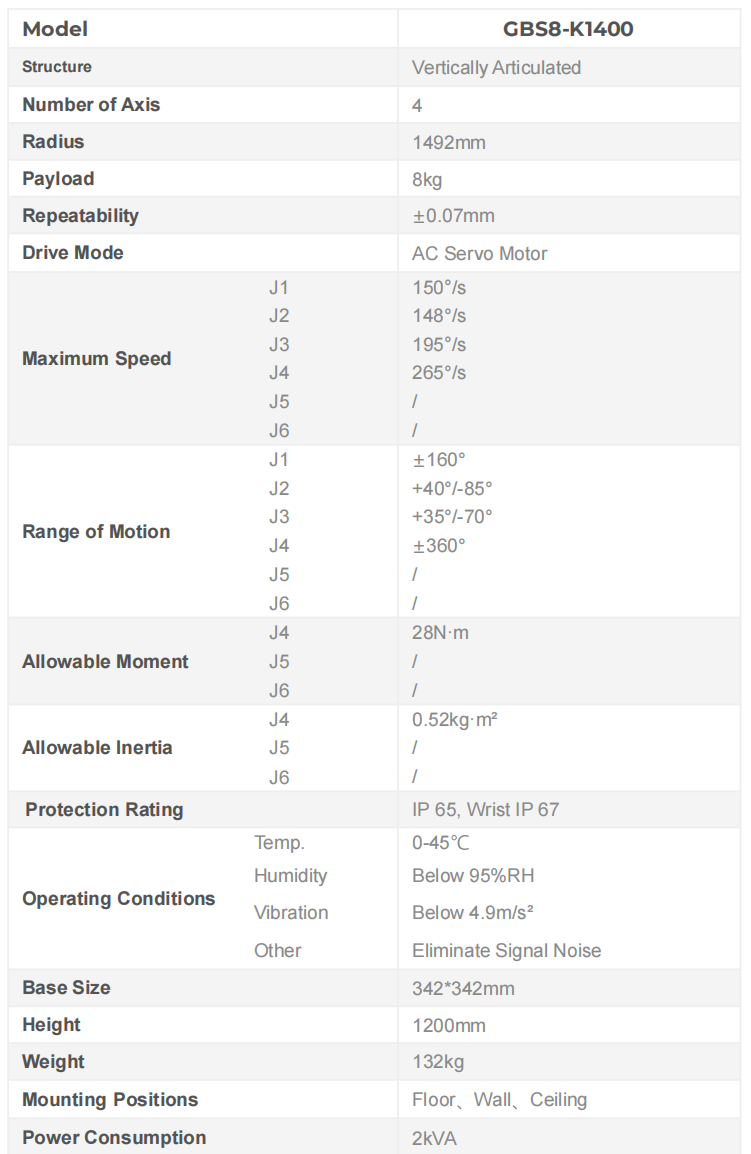

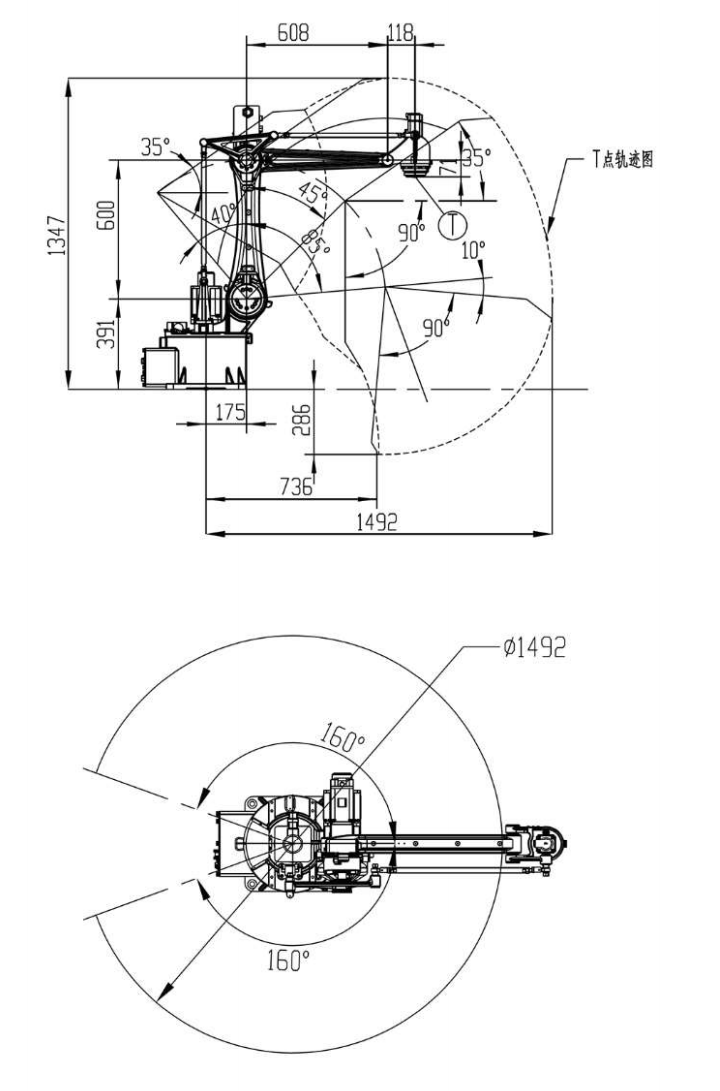

Industry Robot Arm Data Overview

Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery. In addition, the machine on the picture may include additional equipment.
CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots
CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots
CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots
CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots
CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots
CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots
CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots

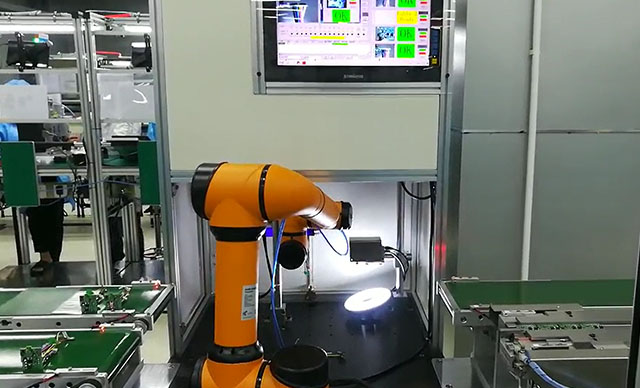

PROJECT EXAMPLES

Making Smart Maunfacturing Simple
CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots

Packing & Loading

CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots

Weliding & Cuting

CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots

Grinding & Milling

CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots

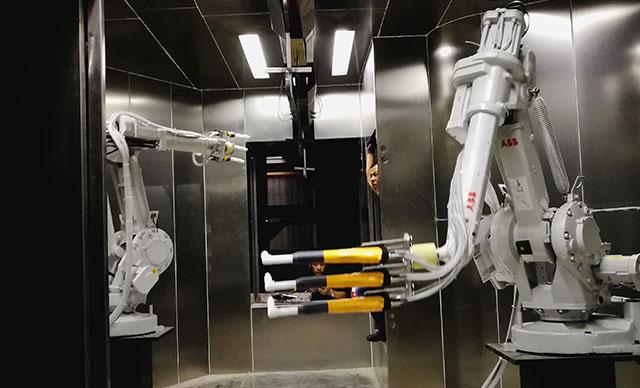

Spraying & Painting

CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots
CNGBS 8 KG Payload Multifunctional Robotic Arm for Packing , Loading and Welding Robots
