Specifications
Brand Name :
TIANYUE
Certification :
3c.ce
Place of Origin :
GUANGZHOU
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
50 work days
Packaging Details :
wooden box
Model Number :
TY-FB-SMT-50
Motor Way :
Servo motor
Drive mode :
mecanum wheel
Docking mod :
conveyor
Size :
Customization
Power supply :
Lithium iron phosphate
Appearance :
Customization
Load weight :
50kg
application :
SMT
Description

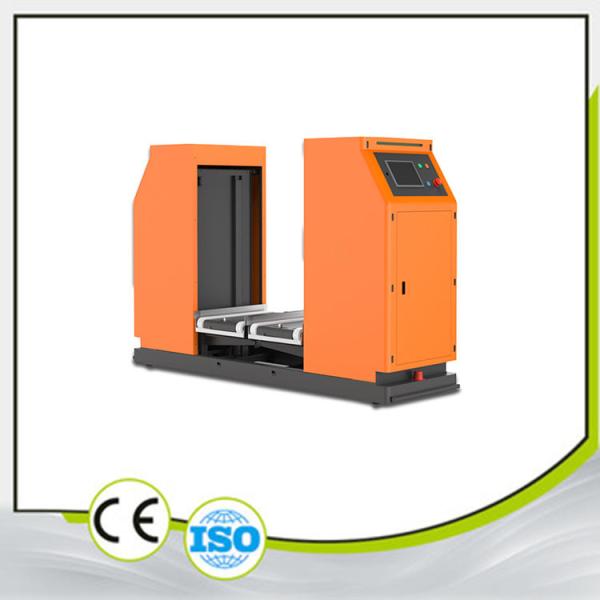

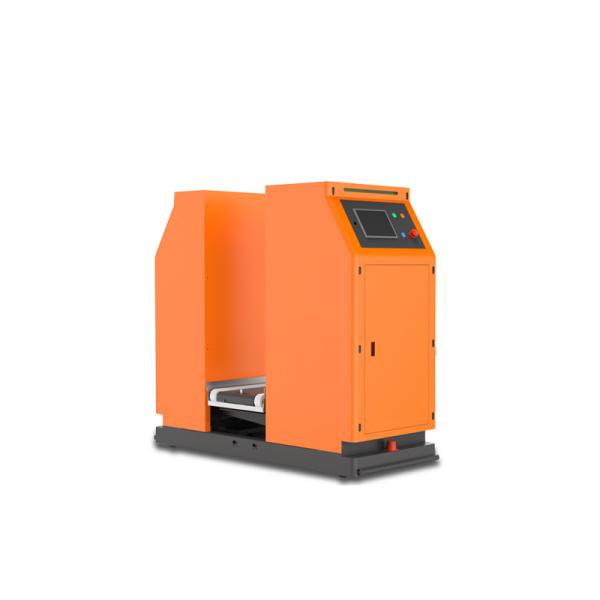

AGV Automated Guided Vehicle - Omnidirectional Double-Conveying SMT Type
This advanced AGV (Automated Guided Vehicle) features omnidirectional double-conveying capability specifically designed for SMT (Surface Mount Technology) material handling. With a load capacity of 30-50KG, it efficiently transports PCB material frames between loading and unloading stations.

SMT Type AGV with 50kg Load Capacity Mecanum Wheel Drive and Laser Guidance for PCB Material Transport

Technical Specifications
Parameter Specification
Product Name Dual-Belt Conveyor SMT Type AGV
Product Dimensions Length X × Width X × Height X mm (custom design)
Product Color Customer specified color plate
Load Mode Dual-station docking for SMT machine integration
Load Capacity 50kg (ground friction coefficient ≥0.5)
Control Mode Customizable per customer requirements
Guidance Mode Laser guidance
Driving Directions Forward, Backward, Left Turn, Right Turn, Divergence, Lateral Move, Horizontal Move
Communication Mode Customizable per customer requirements
Driving Mode Mecanum wheel drive
Drive Power Supply DC 48V
Traveling Speed Straight: 0-40m/min, Turn: 0-20m/min
Turning Radius ≥800mm
Allowable Floor Flatness ≤5mm
Operating Mode 24-hour continuous operation
Climbing Ability ≤3%
Charging Mode Online charging (side charging)
Obstacle Sensor Safety Range Detection distance ≤3m (adjustable), Sensor angle ≤270° (adjustable), Emergency braking < 20mm
Safety Protection Front obstacle detection + dual safety edge anti-collision + emergency stop switch
Alarm Forms Sound and light alarm
Working Noise Normal operation < 70dB(A)
Battery 48V 60Ah lithium battery
Design Life >10 years

SMT Type AGV with 50kg Load Capacity Mecanum Wheel Drive and Laser Guidance for PCB Material Transport

Key Applications
This AGV system transports PCB material frames to designated loading/unloading machines, enabling efficient recycling of empty PCB material frames and transportation of full material frames. The system provides high flexibility and is integrated with intelligent logistics scheduling and ERP systems to facilitate intelligent distribution, turnover, and warehousing operations for parts, semi-finished products, and finished goods.
System Integration Benefits
  • Omnidirectional movement capability for maximum flexibility
  • Intelligent logistics scheduling system integration
  • ERP system connectivity for comprehensive operational management
  • 24/7 continuous operation capability
  • Advanced safety features for reliable performance
