Specifications
Brand Name :
TIANYUE
Model Number :
TY-FB-HZD-1
Certification :
3c.ce
Place of Origin :
GUANGZHOU
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
65 wrok days
Packaging Details :
wooden box
Motor Way :
Servo motor
Drive mode :
Dual steering wheel drive
Docking mod :
Back lift
Size :
Customization
Power supply :
Lithium iron phosphate
Load weight :
1000KG
Description

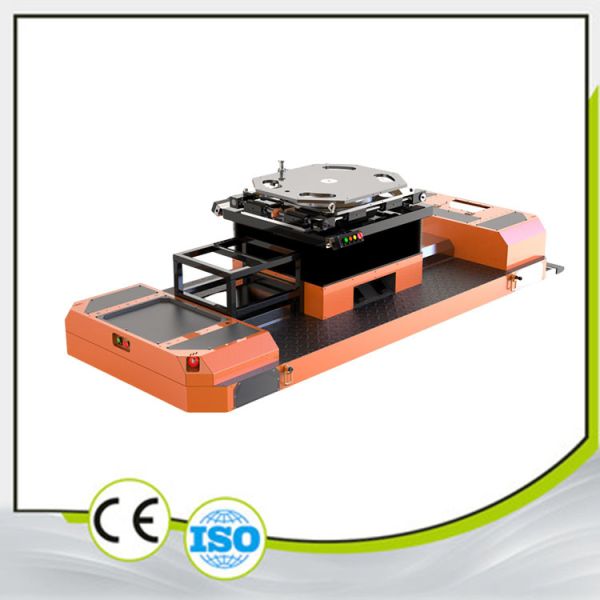

Load 1T Combined Single Lift Backpack Industrial AGV Trolley
Automated Guided Vehicle featuring combined single-lift backpack design with docking adjustment XY slide, capable of handling 1000kg loads with customizable configurations.

Load 1T Combined Single Lift Backpack Industrial AGV Trolley Customization

Technical Specifications
Project Technical Parameters
Product Name Single Lifting and Loading AGV
Product Dimensions L x W x H mm (Customizable)
Loading Mode Single Lifting Platform, X ±120mm, Y ±50mm, Rotation ±2°
Load Capacity 1000 KG (Customizable)
Control Mode PLC, Single Chip (Customizable)
Guidance Mode Laser, QR Code, Magnetic Strip (Customizable)
Travel Directions Forward, Reverse, Left Turn, Right Turn, Fork, 360° Rotation, Translation, Horizontal Movement, Omnidirectional
Drive Mode Dual-Steering Wheel Drive
Drive Power Supply DC 48V
Travel Speed Linear: 0-40 m/min, Turning: 0-20 m/min
Repeat Positioning Accuracy ±5mm
Allowable Road Surface Flatness ≤5 mm
Operation Mode Continuous 24-Hour Operation
Climbing Ability ≤5%
Charging Mode Online Charging (Side Charging)
Obstacle Sensor Safety Sensing Range Detection Distance: ≤3 m (Adjustable), Sensor Detection Angle: ≤270° (Adjustable), Emergency Braking Distance: < 20 mm
Safety Protection Front Obstacle Detection Sensor, Dual Protection Safety Bumper, Emergency Stop Switch
Alarm Form Audible and Visual Alarm, Three-color Lamp, Music Horn
Working Noise Below 70 dB (A)
Battery Type: Lithium Iron Phosphate Battery, Voltage: 48V, Capacity: 210Ah
Design Life >10 Years
Load 1T Combined Single Lift Backpack Industrial AGV Trolley CustomizationKey Features
  • High-precision positioning with ±5mm accuracy
  • Omnidirectional movement capabilities
  • Advanced safety systems with multiple protection layers
  • 24/7 continuous operation capability
  • Customizable guidance and control systems
  • Efficient lithium iron phosphate battery system
Load 1T Combined Single Lift Backpack Industrial AGV Trolley Customization
Load 1T Combined Single Lift Backpack Industrial AGV Trolley Customization
Load 1T Combined Single Lift Backpack Industrial AGV Trolley Customization
Load 1T Combined Single Lift Backpack Industrial AGV Trolley Customization
