Fully Automatic Multi Station CNC Polishing Machine Multi Axis For Hammer Head
Fully Automatic Multi Station CNC Polishing Machine Multi Axis For Hammer Head
Fully Automatic Multi Station CNC Polishing Machine Multi Axis For Hammer Head
Fully Automatic Multi Station CNC Polishing Machine Multi Axis For Hammer Head
Fully Automatic Multi Station CNC Polishing Machine Multi Axis For Hammer Head
Fully Automatic Multi Station CNC Polishing Machine Multi Axis For Hammer Head
Specifications
Payment Terms :
L/C,D/A,D/P,T/T
Motor Power :
2.2 kW
Use :
Metal polishing
Certifications :
CE, ISO 9001, SGS
Polishing Transfer Rate :
0-10M/min(adjustable)
Model Number :
KS-CNC2
Min Diameter :
400mm
MOQ :
1
Delivery Time :
90 WORKING DAYS
Process Usage :
Glass Polishing
Source Pressure :
≥0.55MPa
Price :
65000-98000 USD
Movement Method :
Contour Control
Main Motor Power :
4KW
Certification :
CE
Thickness :
0.5~3mm
Place of Origin :
CHINA
Temperature :
tank polishing machine
Supply Ability :
200-300 SETS PER YEAR
Consumable Specification :
100*3000mm
Consumable Specifications :
Φ300*50mm
Brand Name :
KINGSTONE
Drive System :
Servo Motor
Packaging Details :
WOODEN CASES
Numerical Control :
CNC/MNC
Description
Fully-automatic Multi-station CNC Polishing Machine For Hammer Head
From Forging to Finished — One Cell, Zero Hand Grinding

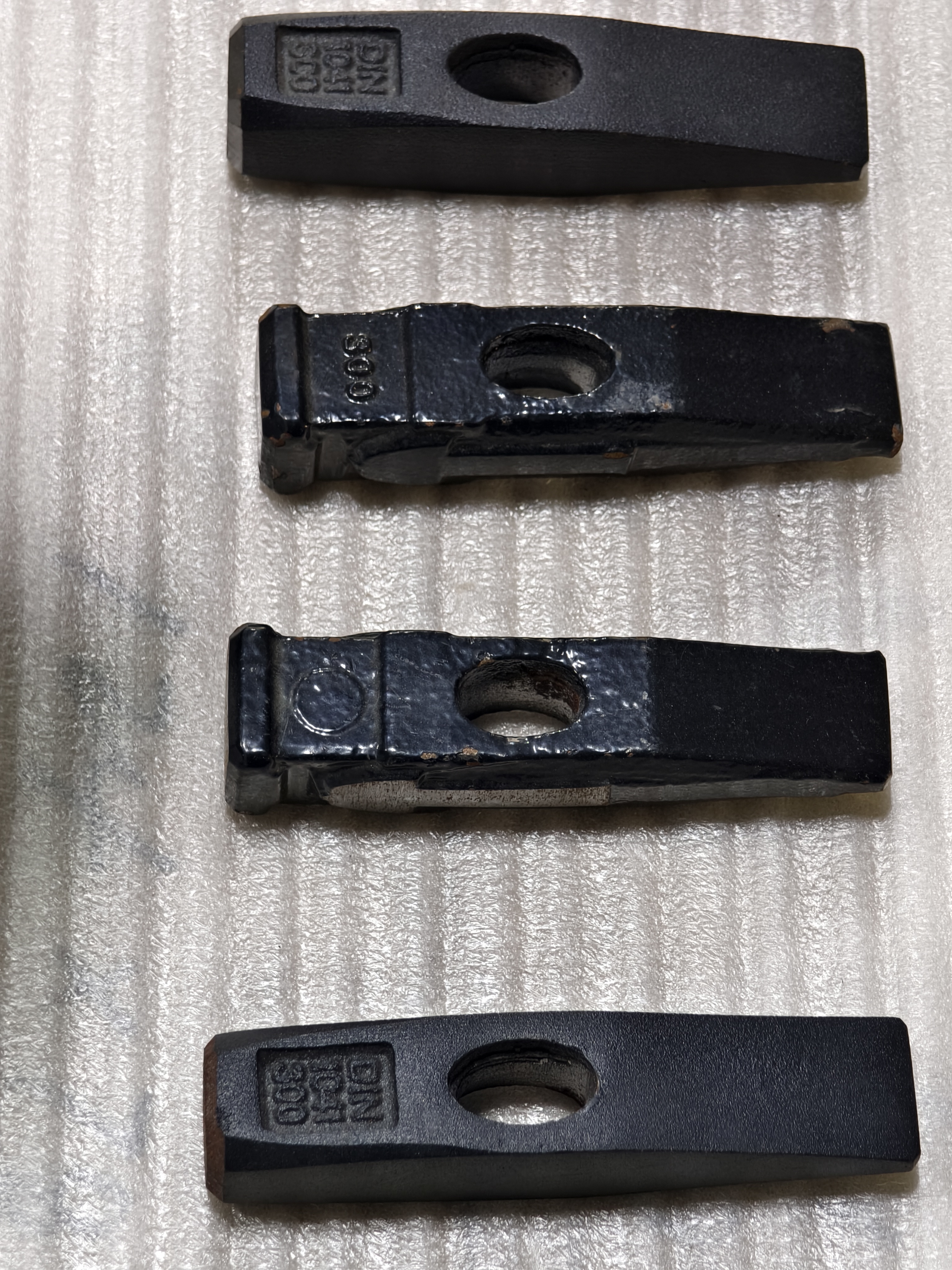

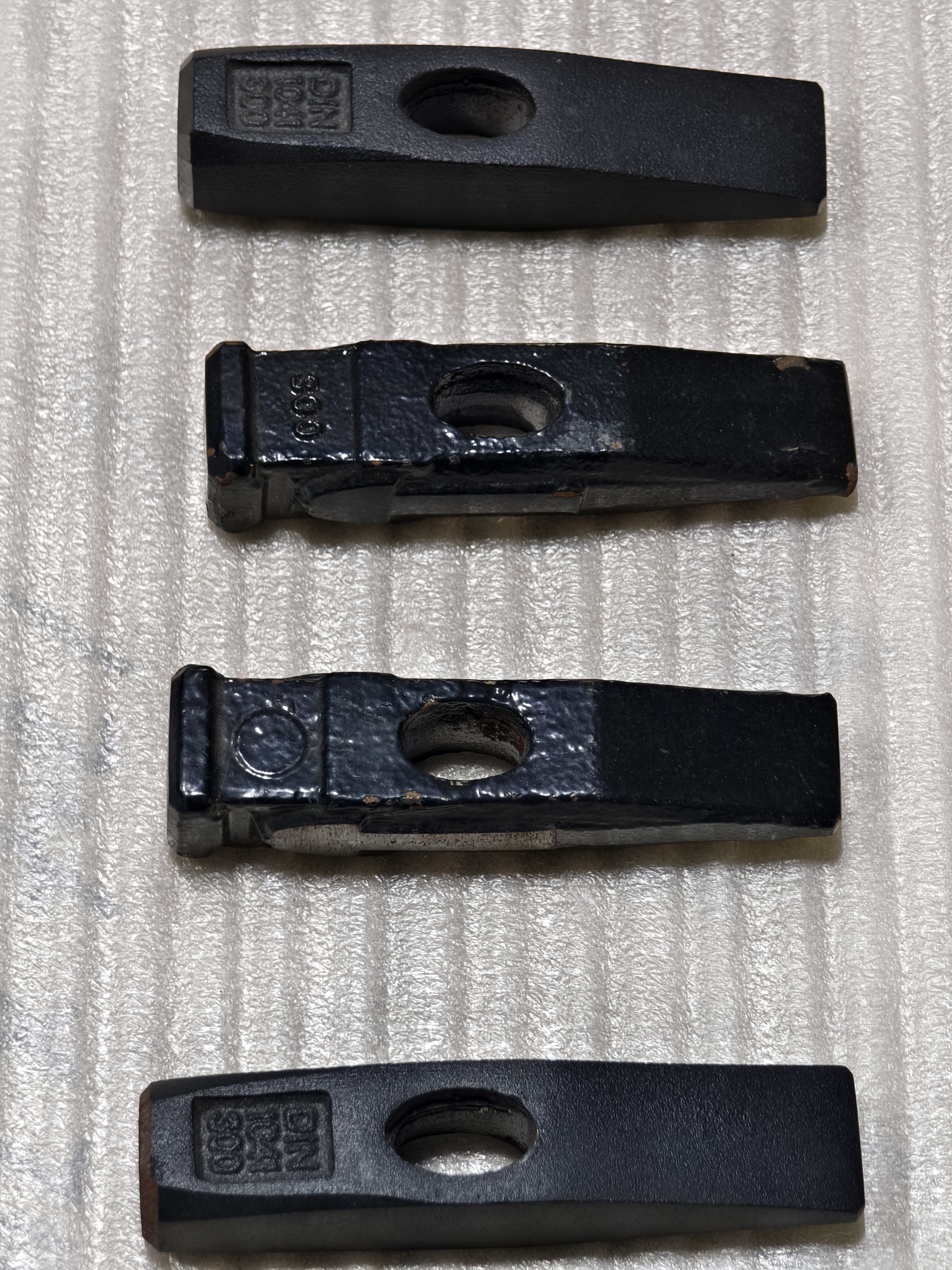

A multi-station CNC polishing machine built for forged hammer heads: claw hammers, fitter's hammers (DIN 1041), sledge hammers and ball-peen hammers. Remove forging flash, deburr the eye hole and condition the surface for painting — automatically, at production speed.

Fully Automatic Multi Station CNC Polishing Machine Multi Axis For Hammer Head
Trust Elements:
  • CE-certified / ISO 9001 factory
  • Free trial: send us your hammer head — we return it with a before/after report and surface data
  • 18-24 month payback model based on your local labor cost
The Problem We Solve
Hammer manufacturers leave money on the table three ways: rejected export lots from leftover forging flash, high labor cost of hand grinding benches, and inconsistent paint finish caused by uneven surface preparation. This machine replaces manual bench grinding with a programmable multi-station polishing cell that finishes every hammer head identically — shift after shift, lot after lot.
Core Selling Points
Precision — High-Precision
  • 5-axis motion path with ±0.01 mm repeat positioning
  • Force-controlled floating spindle: constant contact pressure, no over-grinding on striking face
  • Consistent edge geometry from part #1 to part #50,000
Automation — Fully-Automatic
  • One operator runs the whole cell; auto-indexing between stations
  • Optional robotic loading/unloading for line integration
  • PLC interface ready for MES data collection
Performance — High-Efficiency
  • Multi-station parallel processing: cycle time per hammer head as low as ___ seconds
  • 3-5x faster than manual bench grinding, predictable daily output
Process Capability — Multi-Process
  • One cell covers: forging flash removal -> contour grinding -> eye-hole deburring -> surface conditioning
  • Program changeover between hammer models in < 15 minutes (fixture + program)
Quality Consistency — Repeatable Quality
  • Process parameters locked in program, zero human variance
  • Uniform surface profile = stable paint adhesion and coating thickness
  • Batch traceability with first-article inspection reports
User-Friendly — Easy-to-Operate
  • Touchscreen HMI, bilingual (EN/CN) interface
  • New operator productive within 3 days — no skilled grinder required
  • Quick-change abrasives and fixtures, tool-free where possible
Economy — Cost-Effective
  • Energy consumption: approx. ___ kWh, no hidden shift costs
  • Abrasive consumption reduced 30%+ vs. hand grinding
  • Payback typically 18-24 months based on local labor cost (free calculation on request)
Process Flow
  1. Load & clamp hammer head (quick-change fixture)
  2. Call up the program for that hammer model
  3. Flash removal: strip forging flash and parting-line excess
  4. Contour grinding: blend edges and striking-face geometry
  5. Eye-hole deburring: clean the handle eye, no sharp edges
  6. Surface conditioning: uniform profile ready for painting
  7. Inspection (optional: roughness / dimensional spot check)
  8. Unload to packaging or assembly line
Frequently Asked Questions
Product Basics
Q1: Which hammer heads can this machine process?
A: Claw hammers, fitter's hammers (DIN 1041), sledge hammers, ball-peen hammers and more — forged carbon steel or stainless steel, from 100g to ___ kg.
Q2: Does one machine really do flash removal AND polishing?
A: Yes. The multi-station design runs different processes in sequence: flash removal, contour grinding, eye-hole deburring and surface conditioning — all in one cell with no manual transfer.
Q3: Can it handle the eye hole (handle hole)?
A: Yes. Eye-hole deburring is a standard program — removes internal sharp edges that are the #1 source of hand-injury complaints and QC rejects.
Purchase Decision
Q4: Do you offer a free trial?
A: Yes. Send us your hammer head or 3D drawing — we trial-polish it and return a before/after report with surface roughness data.
Q5: How long does model changeover take?
A: Fixture swap + program recall in about 15 minutes. No special programming skill needed.
Q6: What about delivery time and warranty?
A: Standard models ship in about ___ days; 12-month warranty with remote support, optional on-site installation and training.
Investment & Long-Term
Q7: What is the payback period?
A: Typically 18-24 months, depending on your local labor cost and output. We provide a free ROI sheet using your actual numbers.
Q8: Is training and ongoing support available?
A: Yes — operator training (on-site or video), lifetime remote technical support, and long-term supply of consumables.
