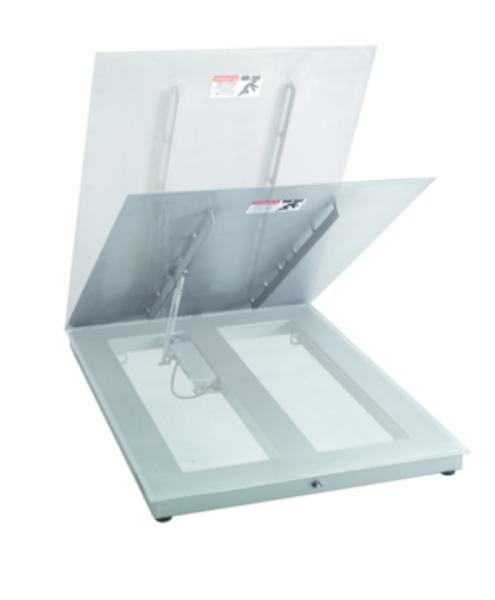

1.Easy Handling
The ergonomic handle allows simple and uncomplicated opening and closing of the load plate from the side. The load plate is locked automatically – further locking is not necessary.
2.Rugged and Persistent
The reinforced load plate and the torsion resistant tubular construction ensure maximum stability at a minimum height of only 80mm (standing directly on feet).
3.Outstanding Product Characteristics
High quality stainless steel (e.g. load plate and frame AISI304 or AISI316), smooth – ground or pattern surface, welding in one go.
Specifications:
Material No | 22020510 |
Material | Stainless Steel |
Platform Size (LxHxW) | 1,250 mm x 80 mm x 1,000 mm |
Protection Rating | IP68 |
Cable | 5 m |
Readability (Certified) | 500 g |
Readability | 200 g |
Maximum Capacity | 1,500 kg |
Load Plate | Smooth With load plate |
Environment | Wet & Harsh Wet (≥IP66) |
Floor Scale Type | Hygienic Lift Floor Scales All Floor Scales |
Legal for Trade | OIML |
Hazardous Area | Non-hazardous area Zone 2/22 |
Dimensions/Platform Size | from 41" to 59.9" from 1,001 to 1,500 mm |
Platform Type | Floor scale |
Hygienic Design | No |
