Specifications
Brand Name :
Mettler Toledo
Model Number :
CMV Combination
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Supply Ability :
2000 set per month
Delivery Time :
10-30days
Packaging Details :
Caron box
Product :
CMV Combination
Packaging Type :
Bags, Bottle, Bundles, Cartons, Cases, Composite Cans, Flow Packs
Inspection Application :
Code Inspection, Label Inspection, Weight Control
Product Characteristic :
Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry :
Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Pharma & Biotech
Weighing Accuracy :
from ±0.01 g
Industry Segment :
Automotive, Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics
Max Line Speed :
180 m/min
Max Throughput :
500 ppm
Material No. :
2499000200
Reading Devices :
Smart Camera
Max Camera Field of View :
110 x 110 mm
Description

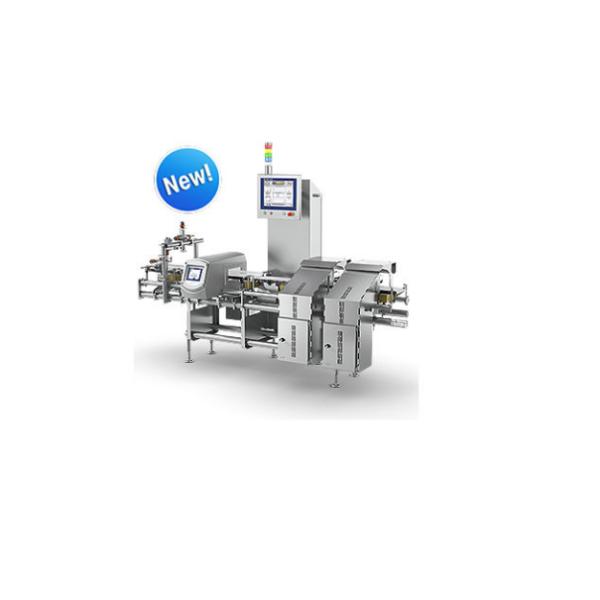

CMV Combination - The Ultimate Inspection Hub for Safety and Quality


The CMV Combination system is an advanced, all-in-one solution that integrates three critical inspection technologies into a single, compact unit: a high-precision checkweigher, a sensitive metal detector, and a

powerful vision inspection system. This powerful trifecta is designed to serve as a single, comprehensive

quality control point, ensuring that products are not only the correct weight but also free from metal contaminants

and have correct, intact packaging. It's an ideal solution for a wide range of industries, including food,

pharmaceutical, and consumer goods, that require the highest standards of safety and quality.

Effective 3-in-1 Inspection Solution.This powerful critical control point delivers metal detection, weight control, and label inspection in one, fully integrated and space-saving device. With full configuration flexibility, this system can be designed to match your application needs.

Configuration Flexibility

Choose your system components from a range of metal detectors, checkweighers, and label inspection systems to exactly fit your application needs.

Space-Saving Design

This solution maximizes production space and enables easy cleaning and maintenance access with only four feet on the ground for increased efficiency.

Reduced Total Cost of Ownership

Benefit from a single provider to deliver configuration support, training and service for three technologies, reducing time, cost and downtime.


Material No 2499000200
IP Rating IP54
IP65
Compatible Software ProdX
Connectivity Ethernet TCP/IP
Fieldbus
OPC UA
Inspection Solution Checkweighing-Metal Detection-Vision
Max Product Weight 10 Kg
Max Weighing Zones 7
Weighing Technology EMFR, Strain Gauge
HMI 12" Touchscreen
15" Touchscreen
Product Flow Conveyor
Max Camera Field of View 110 x 110 mm
Label Quality Inspection Graphical ID, Label ID, Label Placement, Label Skew
Label Data Inspection 1D/2D Barcode Alpha Numeric
Number of Reading Devices 8
Camera Inspection Area 360° Bottom, Side, Top
Max Product Height 200 mm
Max Product Width 400 mm
