Multi-Functional Checkweighers with Combining Weight, Metal Detection
Multi-Functional Checkweighers with Combining Weight, Metal Detection
Multi-Functional Checkweighers with Combining Weight, Metal Detection
Multi-Functional Checkweighers with Combining Weight, Metal Detection
Specifications
Model Number :
Multi-Functional Checkweighers with Combining Weight, Metal Detection, and X-Ray Inspection
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Supply Ability :
2000 set per month
Delivery Time :
10-30days
Packaging Details :
Caron box
Product :
Multi-Functional Checkweighers
Machine Type :
Combined Checkweigher + Metal Detector + X-Ray Inspection
Model Range :
CW-MD-XR Series (Various sizes)
Throughput Capacity :
100-600 packages per minute
Product Size Range :
20mm-300mm (L) × 20mm-250mm (W) × 5mm-150mm (H)
Maximum Product Weight :
5kg (standard), 20kg (heavy-duty options)
Detection Capability :
±0.1g–5g accuracy
Throughput :
100–600 ppm
Belt Width :
150–600mm
Rejection Method :
Pusher/Air Blast
Power Requirements :
110V/220V, 50/60Hz
Data Output :
CSV, SQL, ERP integration
Description

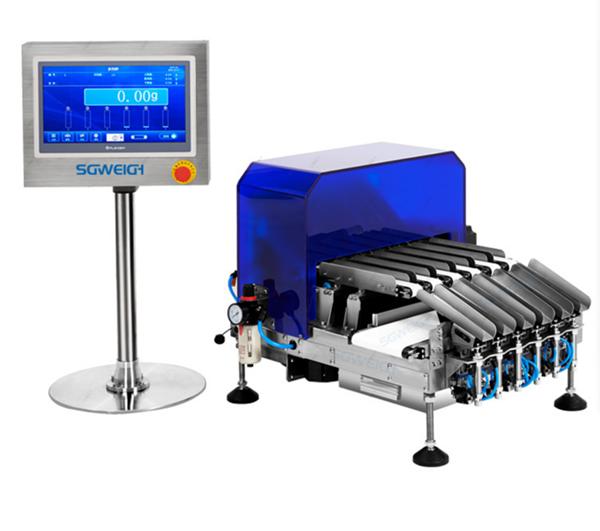

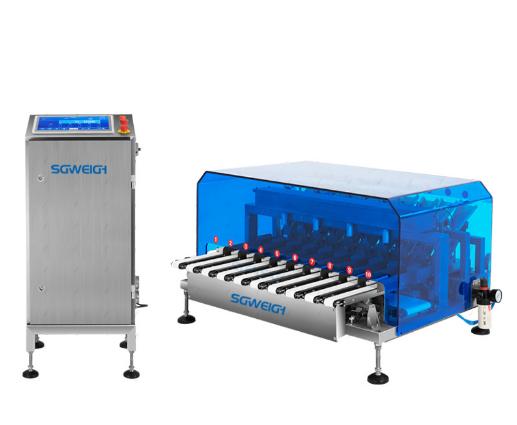

Multi-Functional Checkweighers with Combining Weight, Metal Detection, and X-Ray Inspection


Overview

Multi-functional checkweighers combine weight verification, metal detection, and X-ray inspection into a single, high-efficiency system. These advanced machines are widely used in food, pharmaceutical, and packaging industries to ensure product safety, compliance, and quality control while optimizing production line efficiency.


Key Features & Benefits

1. Three-in-One Inspection System

  • Checkweighing – Ensures products meet exact weight specifications (±0.1g to ±5g accuracy).

  • Metal Detection – Identifies ferrous, non-ferrous, and stainless steel contaminants (sensitivity down to 0.3mm).

  • X-Ray Inspection – Detects foreign objects (bones, glass, stones) and verifies fill levels, seal integrity, and missing components.

2. Enhanced Production Efficiency

  • Single-Point Inspection – Eliminates the need for separate machines, reducing footprint and conveyor length.

  • High-Speed Operation – Handles 100–600+ packages per minute (depending on product size).

  • Automated Rejection – Uses pushers, air jets, or diverter arms to remove defective products.

3. Compliance & Traceability

  • Meets FDA, HACCP, BRC, IFS, EU & USDA regulations.

  • Data Logging & Reporting – Stores weight, metal, and X-ray inspection results for audits and analytics.

  • Cloud Connectivity – Enables real-time monitoring (Industry 4.0/IoT-ready).


Specifications:

Parameter Specifications
Machine Type Combined Checkweigher + Metal Detector + X-Ray Inspection
Model Range CW-MD-XR Series (Various sizes)
Throughput Capacity 100-600 packages per minute
Product Size Range 20mm-300mm (L) × 20mm-250mm (W) × 5mm-150
Maximum Product Weight 5kg (standard), 20kg (heavy-duty options)
Detection Capability ±0.1g–5g accuracy
Throughput 100–600 ppm
Belt Width 150–600mm
Rejection Method Pusher/Air Blast
