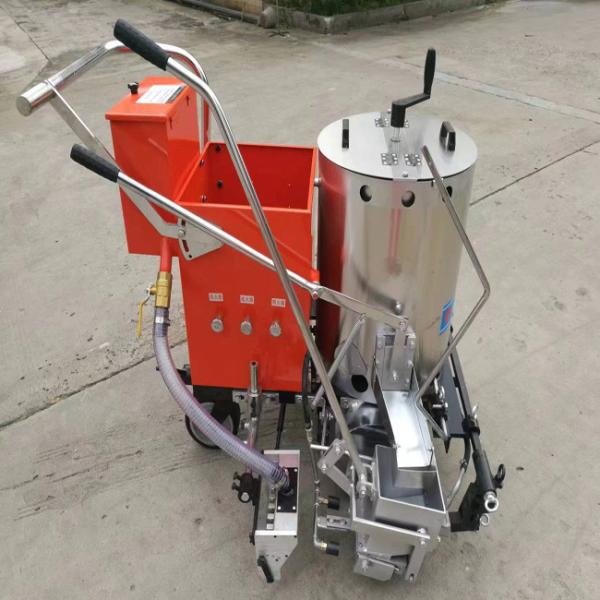

Double Stainless Steel CK308S Hand Push Thermoplastic Road Marking Machine with 48V Lithium Battery for Easy Operation
Double Stainless Steel CK308S Hand Push Thermoplastic Road Marking Machine with 48V Lithium Battery for Easy Operation
Double Stainless Steel CK308S Hand Push Thermoplastic Road Marking Machine with 48V Lithium Battery for Easy Operation
Double Stainless Steel CK308S Hand Push Thermoplastic Road Marking Machine with 48V Lithium Battery for Easy Operation
Double Stainless Steel CK308S Hand Push Thermoplastic Road Marking Machine with 48V Lithium Battery for Easy Operation
Double Stainless Steel CK308S Hand Push Thermoplastic Road Marking Machine with 48V Lithium Battery for Easy Operation
Specifications
Brand Name :
HUA QUN
Model Number :
CK308S
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Pending
Supply Ability :
50 set per day
Delivery Time :
5-8 working days
Packaging Details :
Packed by wooden box
Dimension :
1220x920x1100mm
Marking Thickness :
2-3 mm
Weight :
Approximately 30-40 kg
Mark Width :
100-400mm ( adjustable)
Power Engine :
Honda 5.5 HP gasoline engine
Usage :
Traffic line
Color :
Customized
Application :
Road Marking
Heating Temperature Range :
Up to 200°C
Removing Width :
200mm( strainght line operation)
Removing Line Space :
Mini 80mm( straigth line operation)
Motor Power :
350w
Glass Beads Capacity :
10kgs
Portability :
Lightweight and Easy to Maneuver
Description
Double Stainless Steel CK308S Hand Push Thermoplastic Road Marking Machine
Product Overview

The CK308S Hand Push Thermoplastic Road Marking Machine is designed for efficient road marking applications. Featuring double stainless steel insulated containers and easy manual operation, this machine is ideal for highway line marking, parking lots, schools, factories, and various road marking projects.

Key Features
  • High-precision cast iron marking hopper for orderly, uniform thickness lines
  • Glass beads automatic spreader with buffer device and speed regulation
  • Wear-resistant, heat-resistant, non-sticky construction with toothed-type closing structure
  • Hydraulic transmission with infinitely variable speed system for constant speed operation
  • High-temperature resistance, anti-wear design with long service life
  • Advanced electrophoresis coating or composite electroplating treatment for corrosion resistance
Technical Specifications
Type CK308
Engine Double stainless steel insulated container with removable plug-in manual device. Material container volume: 100kg
Glass Beads Container Volume 10kg
Adjustable Glass Beads Dispenser Synchronous and quantitative dispensing with adjustable width from 50mm to 200mm
Marking Mold High precision ultra-thin material with unique screed box bottom design
Tire Alloy wheel with heat-resistant rubber and rear wheel directional steering device
Heating Device Seamless steel material tube preventing air leaks
Marking Shoe Sizes 50/100/150/200/250/350/400/450 mm (optional)
Battery Capacity 15AH
Battery Voltage 48V Lithium battery
Driver Speed 1-8 km/hour
Working Duration 24 hours of road marking after 5 hours of battery charging
Dimension 1220x920x1100mm
Weight 150kg
Brake Drum brake with adjustable tension
For More Details, Please Contact:
Linly Liao
WhatsApp/WeChat: +8615218861996
Product Images
Double Stainless Steel CK308S Hand Push Thermoplastic Road Marking Machine with 48V Lithium Battery for Easy Operation Double Stainless Steel CK308S Hand Push Thermoplastic Road Marking Machine with 48V Lithium Battery for Easy Operation Double Stainless Steel CK308S Hand Push Thermoplastic Road Marking Machine with 48V Lithium Battery for Easy Operation
