Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking
Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking
Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking
Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking
Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking
Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking
Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking
Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking
Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking
Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking
Specifications
Certification :
ISO9001
Density :
1.8-2.3 g/cm3
Price :
Pending
Delivery Time :
3-7work days
Supply Ability :
500 tons per day
Brand Name :
HUA QUN
Packaging Details :
25kg per bag,40 bags per ton,25-28 tons per 1x20ft container
Payment Terms :
L/C,T/T,Western Union
Model Number :
HQ-185
MOQ :
1 ton
Place of Origin :
China
Description

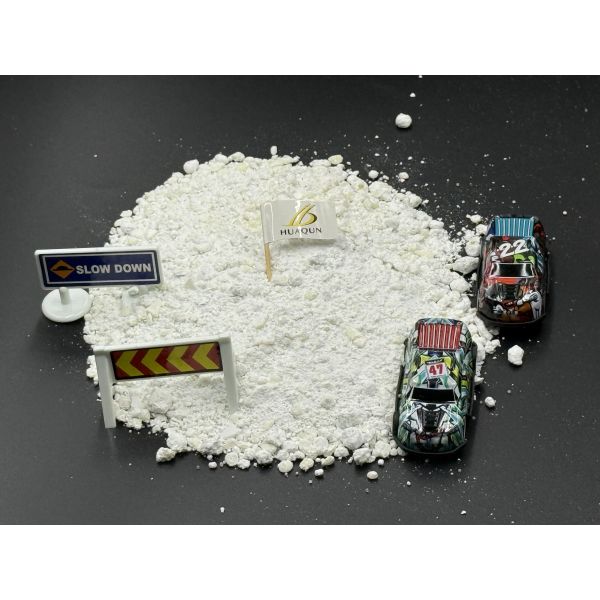

Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking
Product Overview

Thermoplastic paint is a specialized coating composed primarily of thermoplastic resins, combined with pigments, fillers, and additives. Key thermoplastic resins include acrylics, polyvinyl chloride (PVC), and ethylene-vinyl acetate (EVA). Pigments provide color, fillers enhance properties like hardness and opacity, while additives improve flowability, drying speed, and adhesion

Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking

Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking

Thermoplastic paint operates on the principle of thermoplasticity. When heated above its melting point, the paint softens and becomes fluid for easy application. As it cools, the thermoplastic components solidify, forming a durable, adherent coating. This reversible process allows for remelting and reprocessing when needed.
Key Features
  • Quick Drying: Enables faster traffic flow with minimal road disruption
  • Exceptional Durability: Withstands heavy traffic, weather conditions, and wear
  • High Reflectivity: Excellent visibility in low-light and nighttime conditions
  • Cost-Effective: Long-term durability reduces frequent reapplication needs
  • Thermal Reapplication: Can be remelted and reapplied for easy repairs and maintenance
  • Environmental Benefits: Formulations with reduced harmful chemicals
  • Fast Application: Quick application process minimizes downtime
  • Weather Resistance: Resists fading, cracking, and peeling from weather exposure
Common Applications
  • Road Markings: Lane divisions, pedestrian crossings, and stop lines
  • Highways: Edge lines, centerlines, and turn arrows
  • Parking Lots: Parking spaces, directional arrows, and reserved spots
  • Airport Runways: Taxiway markings and boundary indicators
Application Process
  1. Surface Preparation: Ensure road surface is clean, dry, and free of debris, oil, or loose material
  2. Heating the Paint: Heat to 180–200°C (356–392°F) in preheater/melter with regular stirring for uniform consistency
  3. Application: Apply using road marking machine or specialized manual tools, often with simultaneous glass bead application for reflectivity
  4. Thickness: Typically applied in 1.5–2 mm thick layers
  5. Curing: Paint solidifies rapidly upon cooling, allowing quick road reopening
Technical Specifications
Density (g/cm³) 1.8-2.3
Softening Point (°C) 90-125
Compressive Strength (MPa) ≥12
Glass Bead Content (%) 0-30%
Liquidity 35±10
Packing 25kg/bag
Color White/Yellow/Blue/Red/Green/Customized
Executive Standard JT/T280-2004/AASHTO/BS3262/Customized
Appearance Powder
Construction Temperature 180°C-220°C
Whiteness 70-85 (Customized)
Inverse Coefficient 50-550
Warranty 12 months
Storage Method Avoid light and moisture
Packing Size 45*70*5CM
Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking Wear Resistant Reflective Thermoplastic Paint for Traffic Road Line Marking
