Battery Pushing Thermoplastic Road Line Marking Machine For Convex Profile Line
Battery Pushing Thermoplastic Road Line Marking Machine For Convex Profile Line
Battery Pushing Thermoplastic Road Line Marking Machine For Convex Profile Line
Battery Pushing Thermoplastic Road Line Marking Machine For Convex Profile Line
Battery Pushing Thermoplastic Road Line Marking Machine For Convex Profile Line
Battery Pushing Thermoplastic Road Line Marking Machine For Convex Profile Line
Specifications
Brand Name :
WAGE
Model Number :
HG-DVM
Certification :
EMS， OHSMS
Place of Origin :
China
MOQ :
1 set
Price :
5000-8000USD
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10 set per week
Delivery Time :
1 to 3 weeks
Packaging Details :
box
paint type :
thermoplastic
marking type :
noice marking
Paint tank :
55L
Dispenser :
10kg
Bulge thichness :
3 -5 mm adjusted
Line width :
15， 20， 30， 45cm
Description

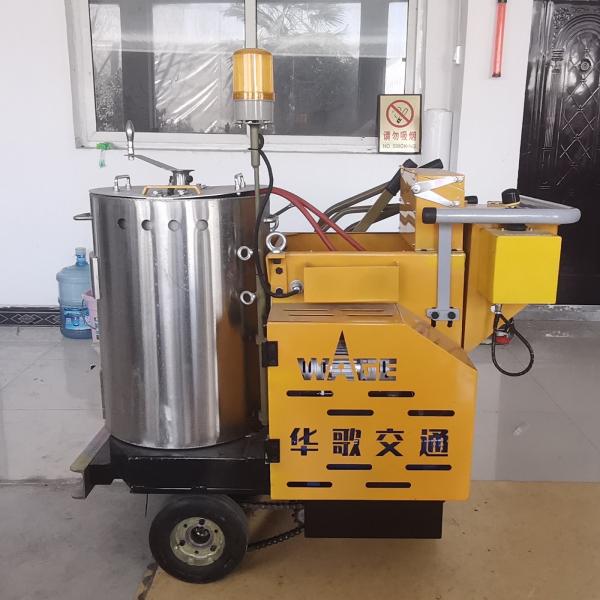

battery driving Thermoplastic convex / Vibration line Road Line Marking Machine for noise marking

Vibration marking is a kind of marking which is widely used in developed countries. Its shape is concave and convex. When a car passes by, it will have a "boom" sound. It has a good warning and reminding effect on the driver, so it is also called noise markin

Battery Pushing Thermoplastic Road Line Marking Machine For Convex Profile Line

WAGE Vibration road line marking machine has the following functional:

1. Adopt automatic oil pressure stepless speed change driving mode, automatic walking, to ensure uniform and efficient construction effect;

2. The scriber adopts stainless steel insulating material coatings barrel and inserting manual mixing device to ensure the best temperature and shape of the melt.

3. Unique marking hopper, which makes the shape, spacing and height of marking protrusion precise and accurate, makes the marking of hot melt oscillation complete at one time, and has strong wear resistance and impact resistance.

4. Synchronized clutch glass bead sprayer makes the glass beads more evenly scattered on the marking line.

5. It is equipped with speed regulating gear shifting device and rear wheel positioning system to ensure that the equipment is fixed and straight ahead.

Battery Pushing Thermoplastic Road Line Marking Machine For Convex Profile Line

Parameters:

HG-DVM
motor Battery
moving speed 12km/h
Grade ability 15°MAX 15°
cylinder capacity 55L/tank
Glass Micro sphere cylinder capacity 10L/tank
Bulge thickness 3-5mm(adjustment)
standard width 150mm
size options 150/200/300/450mm(marking scoops replacement)
size (L*W*H)mm 1250*900*1150mm
Weight 190kg

Main parts:

Battery Pushing Thermoplastic Road Line Marking Machine For Convex Profile LineBattery Pushing Thermoplastic Road Line Marking Machine For Convex Profile Line

Construction spot:

Battery Pushing Thermoplastic Road Line Marking Machine For Convex Profile LineBattery Pushing Thermoplastic Road Line Marking Machine For Convex Profile Line
