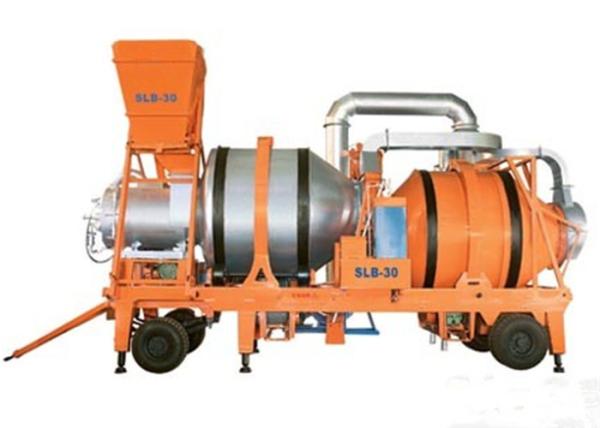

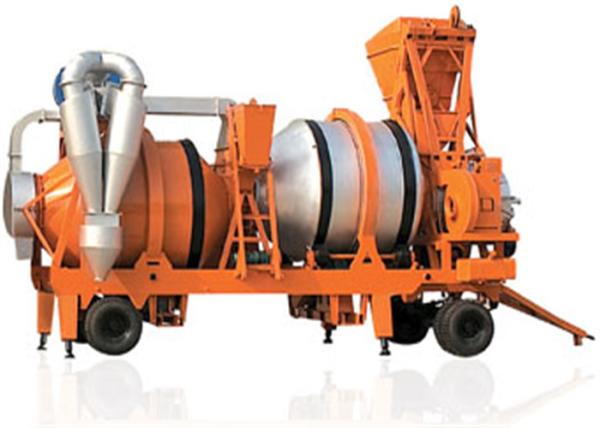

30 TPH Mobile Asphalt Batching Plant With Oil Burner / Coal Burner SLB-30
30 TPH Mobile Asphalt Batching Plant With Oil Burner / Coal Burner SLB-30
30 TPH Mobile Asphalt Batching Plant With Oil Burner / Coal Burner SLB-30
30 TPH Mobile Asphalt Batching Plant With Oil Burner / Coal Burner SLB-30
Specifications
Brand Name :
Visbull
Model Number :
SLB - 30
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
500set per month
Delivery Time :
25-30working days after received your payment
Packaging Details :
Nude packing in container.
Capacity :
30TPH
Fuel Consumpution :
5.5 - 7.5kg / t
Feeder Hopper capacity :
750kgs
Asphalt Output :
750kgs
Aggregate Size :
< = 50mm
Aggregate Bins :
5M3x4 each, accumulative scale
Product Temperature :
120 ~ 165 ℃，adjustable
Total Consumption :
60kW (Oil burner)
Aggregate Hopper :
5m3
Finished Silo :
9tons
Description

30 TPH Mobile Asphalt Batching Plant SLB-30 With Oil Burner / Coal Burner

30Tons Per Hour Hot Mixing Asphalt Mixing Plant SLB - 30 With 60KW Oil Burner

Specifications:

Capacity

30 tph

Power

Oil

60kw

Coal

90.3kw

Fuel Consumpution

5.5-7.5kg/t

Feeder hopper capacity

750kgs

Asphalt output

750kgs

Aggregate size

<=50mm

Aggregate Bins

5M3x4 each, accumulative scale

Accuracy

Aggregate

≤2000kg±3%

Fly ash

≤180kg±2％

Asphalt

≤180kg±2%

Product temperature

120~165 ℃,adjustable

Total consumption

42 kW (Oil burner)

Storage bin

9T

Rated productivity: 30tph

Mobile asphalt drum mixing plant is accurate in weighing, simple in structure,

highly efficient, stable in output, and fast in site transit. It consists of dryer drum,

mixing

drum, central venting and discharge units.

1) Rated productivity: 30tph

2) Suitable material: bitumen, aggregate

3) Feeder hopper capacity: 0.75m3

4) Main power: oil burner 60kW, coal burner 90.3kW

5) Product temperature: 120~165 Celsius degree, adjustable

6) Burner: oil, coal and oil

7) Control system: PLC, auto-control and manually, electronic cabin and control

panel, touch screen

Applications:

QLB series asphalt mixing plant is for high-grade road, such as highway.Airport

Runway.

Competitive Advantage:

1). Integrated design of drying and mixing in drum, reduce initiate cost for customer;
2). Accurate weighing, and stable quality;
3). Simple structure, easy operation, drying while drum rotate in counter-clockwise

direction(from burner), discharging while drum rotates in clockwise direction(from

burner), and the wind are swirled in the center of the drum;

Configuration List:

Item

Description

Unit

Main parts

Chassis (Front,rear axle)

1set

Burner

1unit

Drying drum and drive system

1unit

Mixer drum and drive system

1unit

Cyclone dust filter

1unit

Blower

1unit

Vent

1unit

Bitumen Scale

1set

Control System

PLC

1set

Control panel

1set

Touch screen

1unit

30 TPH Mobile Asphalt Batching Plant With Oil Burner / Coal Burner SLB-30
