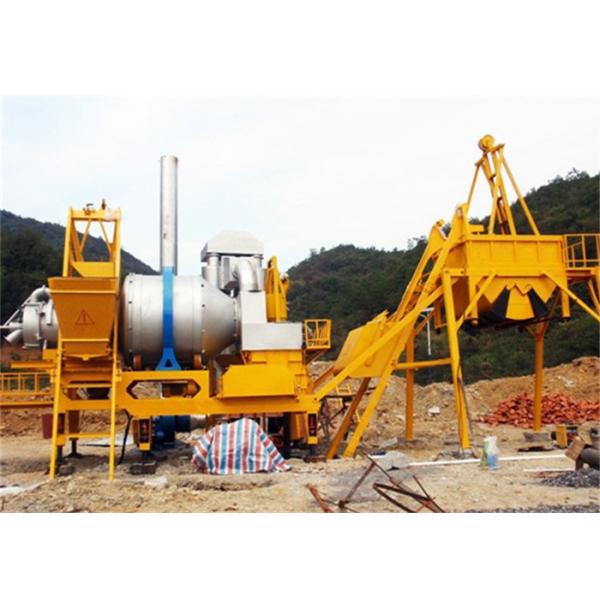

63.5KW Oil Burner Hot Asphalt Mixing Plant 1000kgs Feeder Hopper Capacity CE / SGS / ISO9001
63.5KW Oil Burner Hot Asphalt Mixing Plant 1000kgs Feeder Hopper Capacity CE / SGS / ISO9001
63.5KW Oil Burner Hot Asphalt Mixing Plant 1000kgs Feeder Hopper Capacity CE / SGS / ISO9001
63.5KW Oil Burner Hot Asphalt Mixing Plant 1000kgs Feeder Hopper Capacity CE / SGS / ISO9001
63.5KW Oil Burner Hot Asphalt Mixing Plant 1000kgs Feeder Hopper Capacity CE / SGS / ISO9001
63.5KW Oil Burner Hot Asphalt Mixing Plant 1000kgs Feeder Hopper Capacity CE / SGS / ISO9001
Specifications
Brand Name :
Visbull
Model Number :
QLB-20
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
500set per month
Delivery Time :
25-30working days after received your payment
Packaging Details :
Nude packing in container.
Capacity :
20TPH
Fuel Consumpution :
5.5 - 7.5kg / t
Feeder Hopper capacity :
1000kgs
Asphalt Output :
1000kgs
Aggregate Size :
< = 50mm
Aggregate Bins :
2.3M3x4 each, accumulative scale
Product Temperature :
120 ~ 165 ℃，adjustable
Total Consumption :
63.5kW (Oil burner)
Aggregate Hopper :
5m3
Finished Silo :
10tons
Description

63.5KW Oil Burner Hot Asphalt Mixing Plant 1000kgs Feeder Hopper Capacity CE / SGS / ISO9001

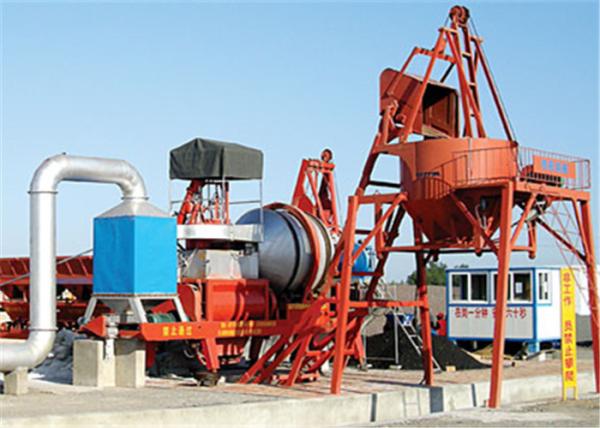

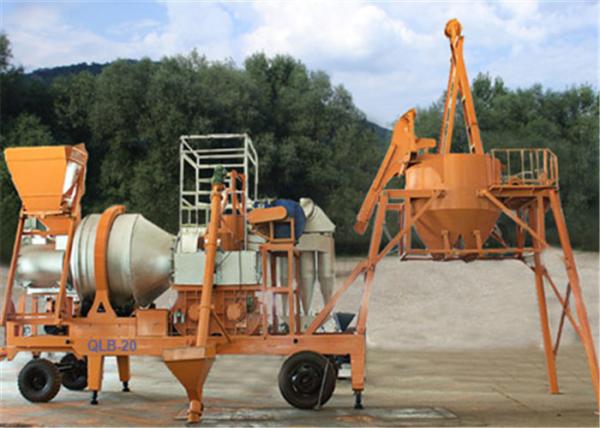

20 TPH Mobile Asphalt Batching Plant QLB-20 With Oil Burner / Coal Burner

Specifications:

Capacity

20 tph

Fuel consumpution

5.5-7.5kg/t

Feeder hopper capacity

1000kgs

Asphalt output

1000kgs

Aggregate size

<=50mm

Aggregate Bins

2.3M3x3 each, accumulative scale

Accuracy

Aggregate

≤2000kg±3%

Fly ash

≤180kg±2％

Asphalt

≤180kg±2%

Product temperature

120~165 ℃,adjustable

Total consumption

63.5 kW (Oil burner)

Configuration List:

Item

Description

Unit

Main parts

Chassis (Front,rear axle)

1set

Burner

1unit

Drying drum and drive system

1unit

Mixer drum and drive system

1unit

Cyclone dust filter

1unit

Blower

1unit

Vent

1unit

Bitumen Scale

1set

Control System

PLC

1set

Control panel

1set

Touch screen

1unit

Description:

1) Rated productivity: 20tph

2) Suitable material: bitumen, aggregate

3) Feeder hopper capacity: 1000kg

4) Main power: oil burner 63.5kW, coal burner 86.5kW

5) Product temperature: 120~165°C, adjustable

6) Burner: oil, coal and oil

7) Control system: PLC, auto-control and manually, electronic cabin and

control panel,

Brief to the QLB series mobile asphalt plant:

1 , Adopts intermittent drying cylinder, with double compulsory shaft mixer,

mainframe can be trailed to walk,

2 , Occupied less area while short installation period, easy for operation and

maintenance, stability, automation, high standardization,

3 , Finished goods are high quality, excellence technology, suitable for

high-grade road asphalt paving and maintenance.
