Drying Drum Horizontal Twin Shaft Asphalt Mixing Plant , 15TPH Concrete Batching Plant
Drying Drum Horizontal Twin Shaft Asphalt Mixing Plant , 15TPH Concrete Batching Plant
Drying Drum Horizontal Twin Shaft Asphalt Mixing Plant , 15TPH Concrete Batching Plant
Drying Drum Horizontal Twin Shaft Asphalt Mixing Plant , 15TPH Concrete Batching Plant
Specifications
Brand Name :
Visbull
Model Number :
QLB-15
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
500set per month
Delivery Time :
25-30working days after received your payment
Packaging Details :
Nude packing in container.
Capacity :
15TPH
Fuel Consumpution :
5.5 - 7.5kg / t
Feeder Hopper capacity :
750kgs
Asphalt Output :
750kgs
Aggregate Size :
< = 50mm
Aggregate Bins :
5M3x4 each, accumulative scale
Product Temperature :
120 ~ 165 ℃，adjustable
Total Consumption :
48kW (Oil burner)
Aggregate Hopper :
5m3
Finished Silo :
10tons
Description

Drying Drum Horizontal Twin Shaft Asphalt Mixing Plant , 15TPH Concrete Batching Plant

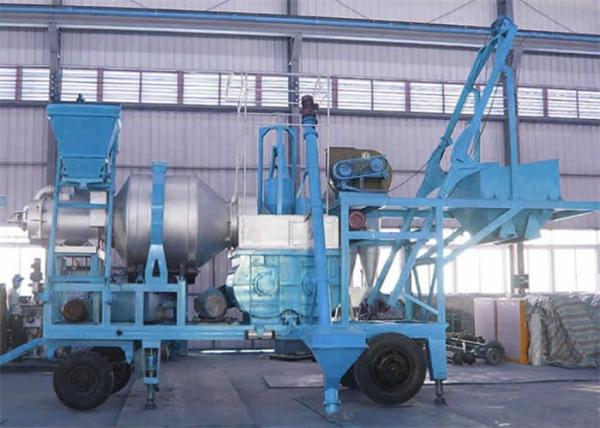

15 TPH Mobile Asphalt Batching Plant QLB-15 With Oil Burner / Coal Burner

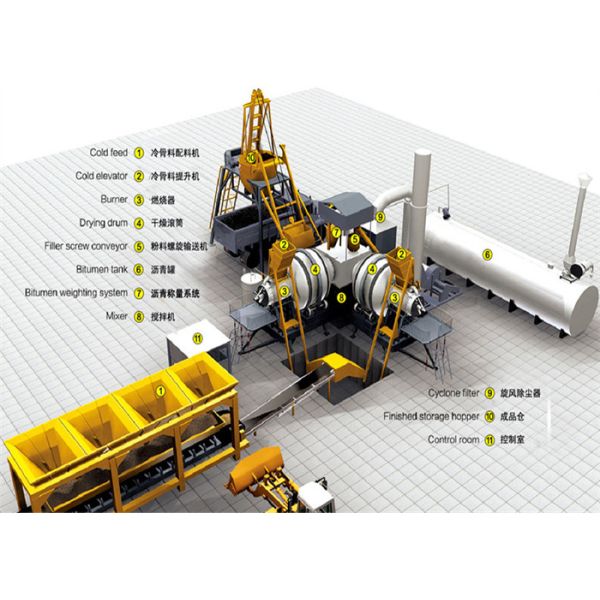

Configuration List:

Item

Description

Unit

Main parts

Chassis (Front,rear axle)

1set

Burner

1unit

Drying drum and drive system

1unit

Mixer drum and drive system

1unit

Cyclone dust filter

1unit

Blower

1unit

Vent

1unit

Bitumen Scale

1set

Control System

PLC

1set

Control panel

1set

Touch screen

1unit

Specifications:

Type

QLB-15

Capacity

15t/h

Power

oil

54kw

Coal

75kw

Aggregate batcher

---

Storage bin

5T

Product Temperature

120～180℃,Adjustable

Fuel consumption

Oil:5～7.5kg/t Coal:13～15kg/t

Optional

Coal miller, Wet filter, Control room, Bitumen heating tank

Main Fetures:

1 . Integrated design of drying drum and horizontal twin shaft mixer, more even

mixing and better asphalt;

2 . Accurate weighing, and stable quality;Simple structure, easy operation,

drying while drum rotate in counter-clockwise direction (from burner),

discharging while drum rotates in clockwise direction (from burner),

and the wind are swirled in the center of the drum;

3 . PLC control,touch screen, auto/manual switchable

4 . Towing chassis for easy transport and installation; Burner is available for

coal and oil, at customer's option.

Drying Drum Horizontal Twin Shaft Asphalt Mixing Plant , 15TPH Concrete Batching Plant
