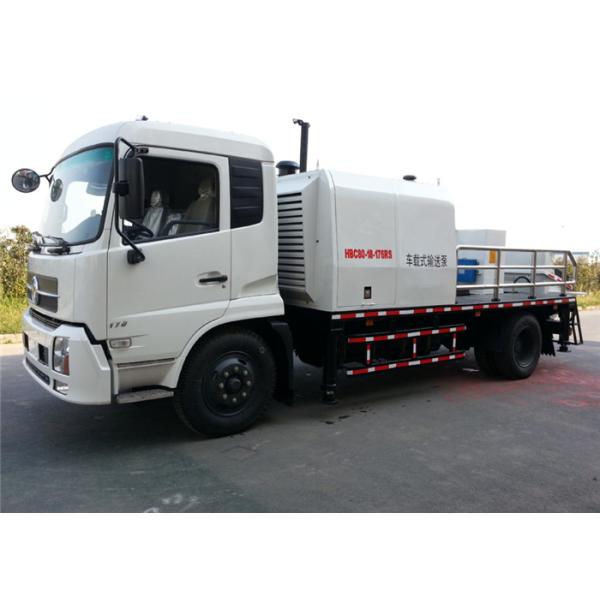

Large Displacement Pportable Cconcrete Pump With 174KW Engine Power 32 MPa Main pump
Large Displacement Pportable Cconcrete Pump With 174KW Engine Power 32 MPa Main pump
Large Displacement Pportable Cconcrete Pump With 174KW Engine Power 32 MPa Main pump
Large Displacement Pportable Cconcrete Pump With 174KW Engine Power 32 MPa Main pump
Specifications
Brand Name :
Visbull
Model Number :
5120THB - 1616 - 90
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 Unit
Price :
US$50,000-US$51,000/unit
Payment Terms :
D/P, D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability :
1,000pcs per month
Delivery Time :
25-30working days after received your payment
Packaging Details :
Nude packing in container.
Displacement :
4.5L
Rated Pressure :
32Mpa
Wheel Base :
4700mm
Chassis :
DongFeng
Volume Of Hopper :
0.9CBM
Engine Type :
Diesel
Hydraulic Oil Tank Capacity :
460L
Engine Power :
132KW
Weight :
12000kgs
Overall Dimension :
8499×2470×31340mm
Description

Large Displacement Pportable Cconcrete Pump With 174KW Engine Power 32 MPa Main pump

90m3/h Truck Mounted Concrete Pump 5120THB - 1616 - 90 With 132KW Engine Power For Concrete Pumping Works

90m3/h Truck Mounted Concrete Pump 5120THB - 1616 - 90

Specifications:

Model

5120THB-1612-120

5120THB-1616-90

Max . concrete pump pressure(MPa)

High pressure

12/7

15.7/9.2

Max. thero. Concrete delivery(m³/h)

Low pressure

70/120

52/90

Diameter of delivery cylinder ×stroke (mm)

Φ230×1650

Φ200×1650

Oil cylinder ×stroke (mm)

Φ140×1650

Φ140×1650

Engine

Type

Diesel

Power(KW)

174

Main pump

Rated pressure (MPa)

32

Rated flow (L/min)

437

Hopper capacity/ material feeding height(m3/mm)

0.9/1400

Hydraulic oil tank capacity (L)

460

Overall dimension (LxWxH) (mm)

8499×2470×3134

Wheel base (mm)

4700

Total weight (kg)

12000

Chassis

DONGFENG

Engine power(KW)

132

Displacement(L)

4.5

Emission Standards

Euro Ⅳ

Euro Ⅳ

Main features - efficient economy

1 . Large displacement pump designed to pump displacement per hour up to

120m ³, generous amount to meet the construction site pouring concrete needs.

2 . Good suction new large angle curved double hopper, reducing the plot material,

suction efficiency than previous generation products increased by 15%.

3 . Good gentle pumping rate of S adjustable valve sealing performance, the height

difference is small, transport more fluid, the pumping rate is greatly improved.

Economic operation - easy maintenance

1 . The new cloth rubber conveyor pistons, piston life as an ordinary polyurethane

2 to 3 times.

2 . S tube with high manganese whole cast, with the pressure, the dual advantages

of wear, service life increased by 26%.

3 Cutting ring floating structure, automatically compensate for wear gap, eliminating

pressure relief problems, life is an increase of 32%.
