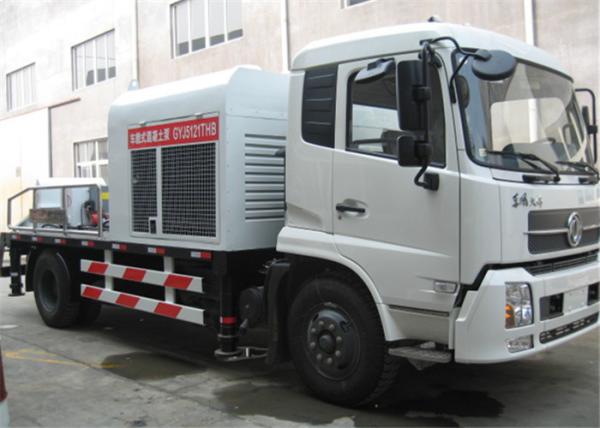

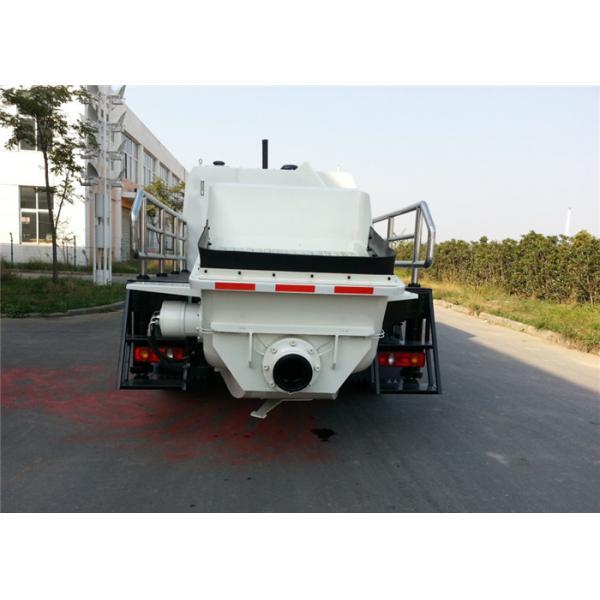

Cummins Engines Hydraulic Concrete Pump , 0.9CBM Hopper Truck Mounted Concrete Pump
Cummins Engines Hydraulic Concrete Pump , 0.9CBM Hopper Truck Mounted Concrete Pump
Cummins Engines Hydraulic Concrete Pump , 0.9CBM Hopper Truck Mounted Concrete Pump
Cummins Engines Hydraulic Concrete Pump , 0.9CBM Hopper Truck Mounted Concrete Pump
Specifications
Brand Name :
Visbull
Model Number :
5120THB - 1616 - 90
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 Unit
Price :
US$50,000-US$51,000/unit
Payment Terms :
D/P, D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability :
1,000pcs per month
Delivery Time :
25-30working days after received your payment
Packaging Details :
Nude packing in container.
Displacement :
4.5L
Rated Pressure :
32Mpa
Wheel Base :
4700mm
Chassis :
DongFeng
Volume Of Hopper :
0.9CBM
Engine Type :
Diesel
Hydraulic Oil Tank Capacity :
460L
Engine Power :
132KW
Weight :
12000kgs
Overall Dimension :
8499×2470×31340mm
Description

Cummins Engines Hydraulic Concrete Pump , 0.9CBM Hopper Truck Mounted Concrete Pump

90m3/h Truck Mounted Concrete Pump 5120THB - 1616 - 90 With DongFeng Chassis For Concrete Pumping Works

90m3/h Truck Mounted Concrete Pump 5120THB - 1616 - 90

Specifications:

Model

5120THB-1612-120

5120THB-1616-90

Max . concrete pump pressure(MPa)

High pressure

12/7

15.7/9.2

Max. thero. Concrete delivery(m³/h)

Low pressure

70/120

52/90

Diameter of delivery cylinder ×stroke (mm)

Φ230×1650

Φ200×1650

Oil cylinder ×stroke (mm)

Φ140×1650

Φ140×1650

Engine

Type

Diesel

Power(KW)

174

Main pump

Rated pressure (MPa)

32

Rated flow (L/min)

437

Hopper capacity/ material feeding height(m3/mm)

0.9/1400

Hydraulic oil tank capacity (L)

460

Overall dimension (LxWxH) (mm)

8499×2470×3134

Wheel base (mm)

4700

Total weight (kg)

12000

Chassis

DONGFENG

Engine power(KW)

132

Displacement(L)

4.5

Emission Standards

Euro Ⅳ

Euro Ⅳ

Dongfeng chassis - Super bearer

1 . Quality selection of leading a new generation of domestic Dongfeng

(DFL1120B13) chassis, lying flat headband, using Cummins engines.

2 . A mature, reliable, strong power, excellent performance, fuel economy, reliability

and durability advantages.

3 . Elegant and chic appearance, ride comfort.

4 . Users can the EURO Ⅲ, Ⅳ emission standards to choose between on demand.

5 . Using international famous brand Deutz (DEUTZ) six-cylinder diesel engine.

6 . Powerful: high power, high efficiency.

7 . Energy saving: low emission, low fuel consumption, low vibration, low noise,

etc..

8 . Reliable and durable: long life, overhaul a long time, easy maintenance interior

maintenance.

Cummins Engines Hydraulic Concrete Pump , 0.9CBM Hopper Truck Mounted Concrete Pump
