Specifications
Brand Name :
Visbull
Model Number :
KD-X18
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T . Western Union, MoneyGram
Supply Ability :
500 units per month
Delivery Time :
30 working days after received your deposit
Packaging Details :
Naked packing
Working height maximum :
18m
Platform height maximum :
16m
Lateral Outreach :
7.2m
Platform Size :
1.0×0.8×1.1m
Overall length :
5.3m
Total weight :
2200kg
Loading capacity :
200kg
Platform rotation :
180°
Turntable Swing :
360°continuous
Drive speed -stowed :
1.3km/h
Description

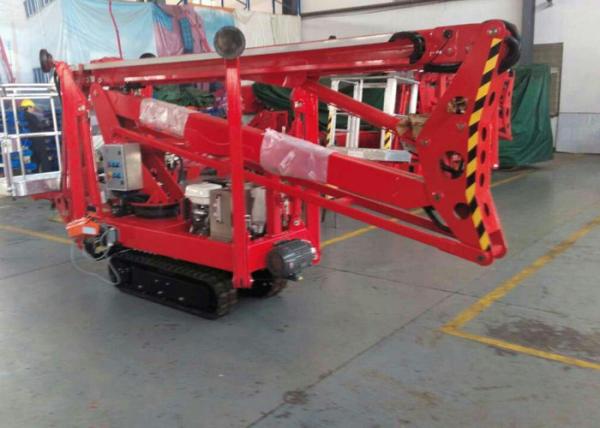

Wired Remote Control Hydraulic Boom Lift , High Strength Steel Articulating Boom Lift

18M 200KG Spider Articulating Boom Lift Hydraulic Aerial Work Platfrom With 360 Degree Rotation Range

Specifications:

—Made ​​of high strength steel, and the European production of hydraulic, control, parts;

—Pipeline all the built-in, to avoid the sun and rain or foreign objects tangled;
—Shape lightweight, low pressure rubber tracks on the ground, can travel, work on any ground;

—Outrigger separately controlled to bypass obstacles in a limited space work;

—Reliable torque control to ensure that the vehicle will not roll;

—Wired remote control walks, working bucket with 220V outlet;
—Small size, compact and flexible

Type

KD-X18

working height (m)

18.00

Platform height (m)

16.00

Safe load (kg)

200

Size of platform (m)

1.0×0.8×1.1

Outreach (m)

7.20

Rotation of jib

180°

Rotation of work cage

180°

Rotation range

360°

Overall length (m)

5.30

Overall width (m)

1.46

Overall height (m)

2.10

Total weight (kg)

2200

Standard jacked area

30%

Speed (km/h)

0-1.3

Climability

30%

Power

Honda 13HP gas + 220V mains

Wired Remote Control Hydraulic Boom Lift , High Strength Steel Articulating Boom Lift

Wired Remote Control Hydraulic Boom Lift , High Strength Steel Articulating Boom Lift

Wired Remote Control Hydraulic Boom Lift , High Strength Steel Articulating Boom Lift

Wired Remote Control Hydraulic Boom Lift , High Strength Steel Articulating Boom Lift
