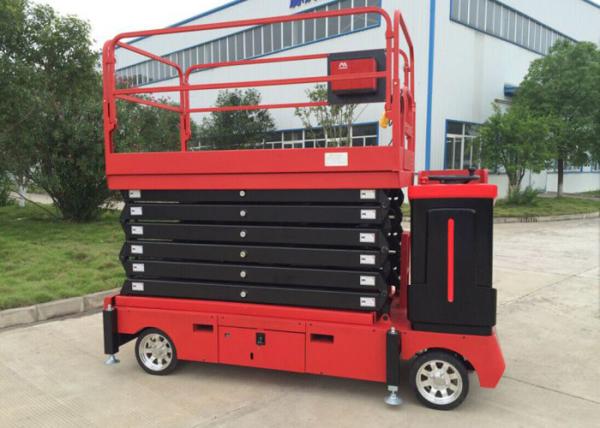

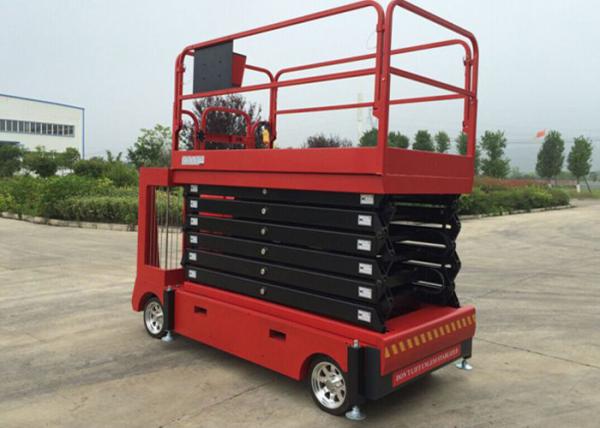

6-11M Electric Self - propelled Scissor Lift / Aerial Work Platform 300KG Lift Capacity
6-11M Electric Self - propelled Scissor Lift / Aerial Work Platform 300KG Lift Capacity
6-11M Electric Self - propelled Scissor Lift / Aerial Work Platform 300KG Lift Capacity
6-11M Electric Self - propelled Scissor Lift / Aerial Work Platform 300KG Lift Capacity
6-11M Electric Self - propelled Scissor Lift / Aerial Work Platform 300KG Lift Capacity
6-11M Electric Self - propelled Scissor Lift / Aerial Work Platform 300KG Lift Capacity
Specifications
Brand Name :
Visbull
Model Number :
SJZ0.3-6
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T . Western Union, MoneyGram
Supply Ability :
500 units per month
Delivery Time :
30 working days after received your deposit
Packaging Details :
Naked packing
Platform height maximum :
6m
Max. work Height :
7.8m
Platform Size :
1830*1000mm
Working voltage :
DC 60V
Net weight :
1090kg
Lift capacity :
300kg
Lifting motor power :
2.2kw
Drive motor power :
1.2kw
Description

6-11M Electric Self - propelled Scissor Lift / Aerial Work Platform 300KG Lift Capacity

Description:

1. New design,national patented products (Patent No.201430452809.9), Unique
Transformers series appearance.
2. Folding guardrails conforms with international safety standard, which can effectively
protect the safety of high-altitude operation.
3. The operator can control the movement,lifting and descending to realize continuous
operation at high altitudes.
4. Installed with emergency stop switch to protect personal safety.

Features:

1. The lifting mechanism are made with high strength rectangle manganese steel, adopts welding technology, and treated by grinding and polishing.
2. Can use three-phase AC battery, single phase AC battery and DC battery
3. Lifting oil cylinder is equipped with unloading flow-limiting valves to ensure the steady falling when lifted to the highest.
4. Electric switch or remote control lift switch(optional) for people both on the ground and platform to operate
5. Equipped with manual oil pump(optional) to ensure operation without power supply
6. Platform can stretch out and draw back, it can be stretched to the right place when the platform length is not enough, so as to improve the work efficiency

Specifications:

Model Unit SJZ0.3-6
Rated capacity kg 300
Plate height(max) mm 6000
Plate height (min) mm 1127
Plate size(L*W) mm 1830*1000
Working voltage v DC60
Lifting motor power 60v 2.2kw
Drive motor power 60v 1.2kw
Overal length mm 2560
Overal width mm 1195
Overal height mm 2163
Met weight kg 1090

6-11M Electric Self - propelled Scissor Lift / Aerial Work Platform 300KG Lift Capacity
