28M Self Propelled Telescopic Vehicle Mounted Hydraulic Boom Lift With Cummins Diesel Engine GTBZ28
28M Self Propelled Telescopic Vehicle Mounted Hydraulic Boom Lift With Cummins Diesel Engine GTBZ28
28M Self Propelled Telescopic Vehicle Mounted Hydraulic Boom Lift With Cummins Diesel Engine GTBZ28
28M Self Propelled Telescopic Vehicle Mounted Hydraulic Boom Lift With Cummins Diesel Engine GTBZ28
28M Self Propelled Telescopic Vehicle Mounted Hydraulic Boom Lift With Cummins Diesel Engine GTBZ28
28M Self Propelled Telescopic Vehicle Mounted Hydraulic Boom Lift With Cummins Diesel Engine GTBZ28
Specifications
Brand Name :
Visbull
Model Number :
GTBZ28
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T . Western Union, MoneyGram
Supply Ability :
500 units per month
Delivery Time :
30 working days after received your deposit
Packaging Details :
Naked packing
Working height maximum :
29.8m
Platform height maximum :
28.1m
Horizontal reach maximum :
20.1m
Platform Size :
1.83*0.91m
Wheelbase :
3.0m
Ground clearance-center :
43cm
Lift capacity (restricted) :
260kg
Platform rotation :
160°
Turntable Swing :
360°continuous
Drive speed -stowed :
5.3km/h
Gradeability -stowed (2WD) :
30%
Turning radius - outside :
6.25m
Description

28M Self Propelled Telescopic Vehicle Mounted Boom Lift GTBZ28 With Cummins Diesel Engine

Measurements Specifications:

28M Self Propelled Telescopic Vehicle Mounted Hydraulic Boom Lift With Cummins Diesel Engine GTBZ2828M Self Propelled Telescopic Vehicle Mounted Hydraulic Boom Lift With Cummins Diesel Engine GTBZ28

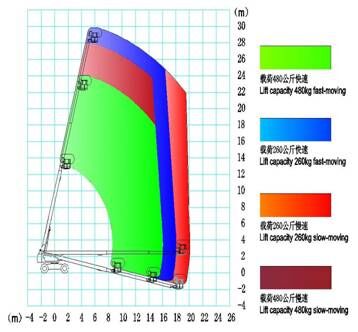

GTBZ28 Range of Motion

28M Self Propelled Telescopic Vehicle Mounted Hydraulic Boom Lift With Cummins Diesel Engine GTBZ28

Model

GTBZ28

Measurement

Metric

US

Working height maximum *

29.8m

98ft

Platform height maximum

28.1m

92ft

Horizontal reach maximum **

20.1m

66ft

Below ground reach

2.56m

8ft

A

Platform length-8ft model

0.91m

3ft

Platform length-6ft model

0.76m

2ft

B

Platform width-8ft model

2.44m

8ft

Platform width -6ft model

1.83m

6ft

C

Height-stowed

2.8m

9ft

D

Length-stowed

12.4m

37ft

E

Width

2.49m

8ft

F

Wheelbase

3.0m

8ft

G

Ground clearance-center

0.43m

1ft5in

PRODUCTIVITY

Lift capacity (restricted)

480kg

1056lbs

Lift capacity (non-restricted)

260kg

573lbs

Platform rotation

160°

Jib rotation

—

Turntable Swing

360°continuous

Turntable tailswing

1.32m

4ft4in

Travel speed -stowed

5.3km/h

3.3mph

Travel speed -raised or extended

1.1km/h

0.68mph

Gradeability -stowed (2WD)

30%

Gradeability -stowed (4WD)

45%

Turning radius - inside

3.59m

11ft9in

Turning radius –outside

6.25m

20ft

Controls

24V DC Proportional

Solid tires

12.00-20/8.5

POWER

Power source

Lovol 78hp (58kw), Perkins 76hp (56kw), Cummins 75hp (56kw)

Auxiliary power unit

24V DC

Hydraulic tank capacity

190L

Fuel tank capacity

150L

28M Self Propelled Telescopic Vehicle Mounted Hydraulic Boom Lift With Cummins Diesel Engine GTBZ28
