16000kg 4X2 LHD 4 CBM Concrete Mixer Truck 180HP Euro 4 Energy - Saving
16000kg 4X2 LHD 4 CBM Concrete Mixer Truck 180HP Euro 4 Energy - Saving
16000kg 4X2 LHD 4 CBM Concrete Mixer Truck 180HP Euro 4 Energy - Saving
16000kg 4X2 LHD 4 CBM Concrete Mixer Truck 180HP Euro 4 Energy - Saving
16000kg 4X2 LHD 4 CBM Concrete Mixer Truck 180HP Euro 4 Energy - Saving
16000kg 4X2 LHD 4 CBM Concrete Mixer Truck 180HP Euro 4 Energy - Saving
Specifications
Brand Name :
Bilon
Certification :
ISO,CCC,BV
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets
Delivery Time :
30 days
Packaging Details :
naked,waxing. concrete mixer truck is shipped by bulk,
Power(W) :
132 kw
Weight :
16000kg
Emission standard :
Euro 4
Size :
7530x2320x3320mm
Loading capacity :
4 cubic meters
Driving type :
4X2 LHD
Description

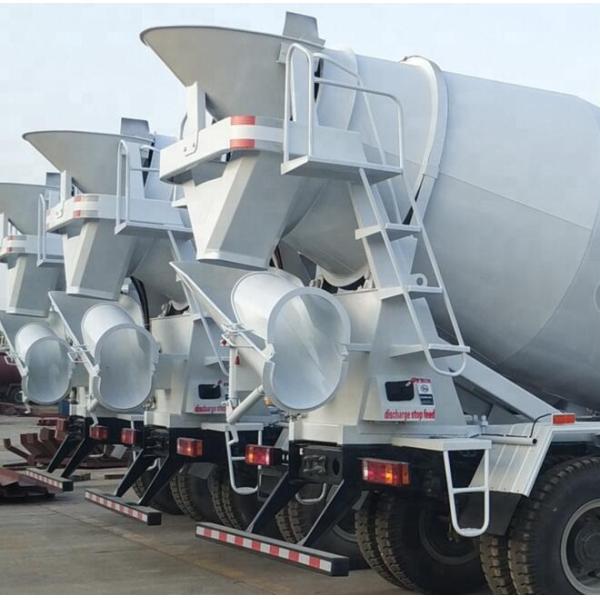

HOWO 4X2 4 CBM Concrete Mixer Truck 180HP Euro 4

Improved Braking Technology

By making full use of engine braking, braking distance has been reduced by 15% and brake lining wear is decreased by 50%.

Energy-saving Technology

The engine dual power mode, coupled with the unique intelligent transmission's power matching technology results in a 10% fuel savings.

Curb weight 7500 kg

GVW 16000 kg

Dimension (L*H*W) 7530×2320×3400 mm

Wheel base 4200 mm

Min.ground clearance 225 mm

Min.turning diameter 16 m

Fuel consumption 21 L/100km

Braking distance V0=30km/h ≤9/8.5 m (Full/Empty load)

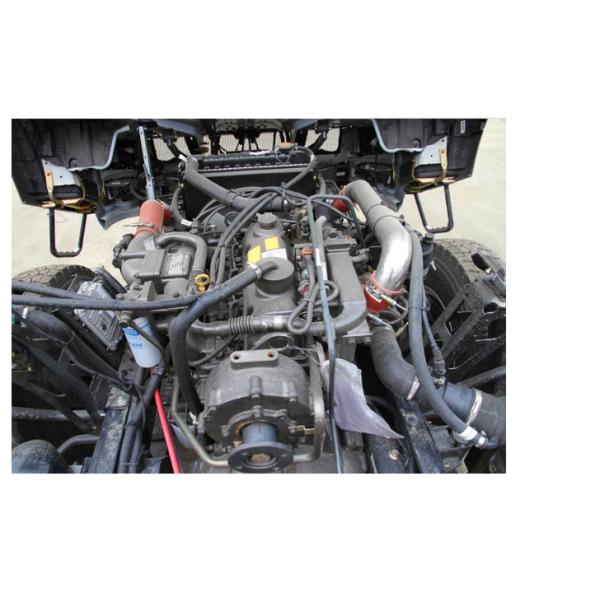

Engine

Bore × StrokeΦ 108×115 mm

Displacement 4.214 L

Rated power/Rev speed 140/2800 kW/rpm

Max.torgue/Rev speed 450/1400-1700 N.m/rpm

Emissions Euro 3

Drum

Mixing capacity 4 m³

Feeding speed ≥1.5 m³/min

Discharge speed ≥1 m³/min

Discharge residual rate ≤0.95%

Slump scope 50-210 mm

Water tank capacity 300 L

Water pressure 0.35-0.38 Mpa

Reduction gear T60

Hydraulic pump High-teck

Motor High-teck

16000kg 4X2 LHD 4 CBM Concrete Mixer Truck 180HP Euro 4 Energy - Saving16000kg 4X2 LHD 4 CBM Concrete Mixer Truck 180HP Euro 4 Energy - Saving
