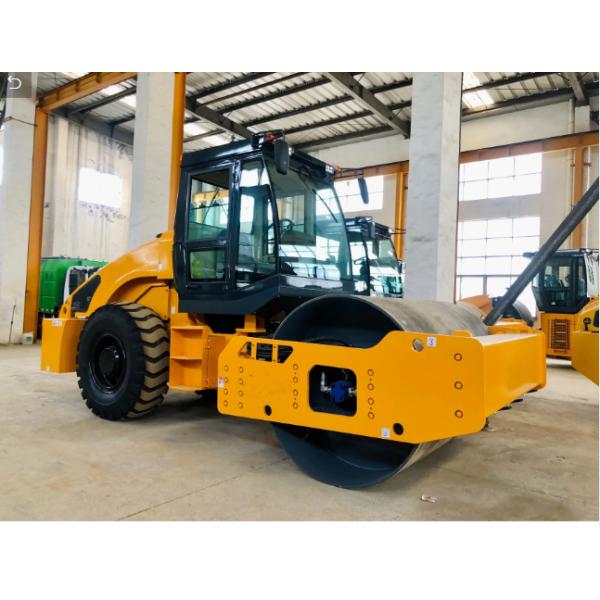

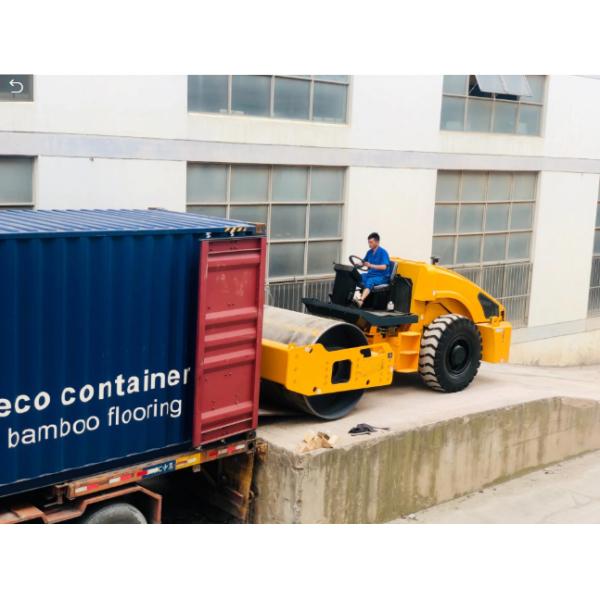

2900mm 10 Ton Vibratory Road Roller With 82KW Diesel Power
2900mm 10 Ton Vibratory Road Roller With 82KW Diesel Power
2900mm 10 Ton Vibratory Road Roller With 82KW Diesel Power
2900mm 10 Ton Vibratory Road Roller With 82KW Diesel Power
2900mm 10 Ton Vibratory Road Roller With 82KW Diesel Power
2900mm 10 Ton Vibratory Road Roller With 82KW Diesel Power
2900mm 10 Ton Vibratory Road Roller With 82KW Diesel Power
2900mm 10 Ton Vibratory Road Roller With 82KW Diesel Power
Specifications
Brand Name :
Bilon
Certification :
CE
Place of Origin :
China
MOQ :
1-10 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 set per month
Delivery Time :
20 days
Packaging Details :
wooden case
Type :
Road Roller
Working Method :
Vibration
Engine Type :
Diesel Engine
Operating weight :
10T
Drum width :
1980
Rated power :
82KW
Description

10 Ton Single Drum Vibratory Road Compactor Road Roller With 82KW Diesel Power

Main features
1.4-cylinder, super-pressurized, world famous WEICHAI engine with power reserve, high efficiency, ultra-low fuel consumption, energy saving and environmental protection, Euro II emission standard.
2.Mechanical drive, three-speed gear
3.Hydraulic vibration, with super compaction performance; electronic control delay vibrate with smooth transition.
4.Hydraulic steering, articulated frame with flexible steering and operation.
5.Adopt specific gearbox with synchronizer, big transmission torque, easy to shift gear.
6.Gas-assisted hydraulic clamp disc service brake, internal expanding drum mechanical parking brake, safe and reliable.
7.Rear engine cover can be turned up for big angle for convenient maintenance.
8.Equipped with famous brand hydraulic components with reliable performance.
9.Standard equipped with cabin, air conditioner is for your choice.
10. CUMMINS Engine is optional.

1. Operating weight(kg) 10000
2. Drum width(mm) 1980
3. Drum diameter(mm) 1430
4. Static linear pressure (N/cm) 240
5. Wheel base(mm) 2900
6.Travel speed(km/h)
forward
Backward
2.0/4.2/8.7
2.0/4.2
7. Gradeability (%) 30
8. Turning radius (outside) (mm) 5800
9. Ground clearance(mm) 380
10. Vibration frequency (Hz) 30
11. Vibration amplitude(mm) 1.6/0.8
12.Exciting force(kN) 225/105
13. Diesel engine WP4G110E221
Rated power (kW) 82
Rated speed (r/min) 2000
14.Tire specifications 17.5-25-12PR
15.Dimensions (L*W*H) (mm) 5570×2160×3010

2900mm 10 Ton Vibratory Road Roller With 82KW Diesel Power2900mm 10 Ton Vibratory Road Roller With 82KW Diesel Power
