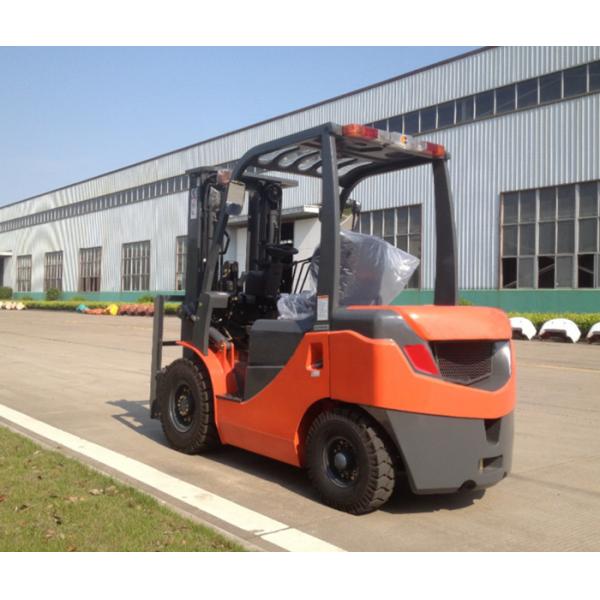

Yanmar Engine 2115MM 3 Ton Diesel forklift Truck
Yanmar Engine 2115MM 3 Ton Diesel forklift Truck
Yanmar Engine 2115MM 3 Ton Diesel forklift Truck
Yanmar Engine 2115MM 3 Ton Diesel forklift Truck
Yanmar Engine 2115MM 3 Ton Diesel forklift Truck
Yanmar Engine 2115MM 3 Ton Diesel forklift Truck
Yanmar Engine 2115MM 3 Ton Diesel forklift Truck
Yanmar Engine 2115MM 3 Ton Diesel forklift Truck
Specifications
Brand Name :
Bilon
Certification :
CE
Place of Origin :
China
MOQ :
1-10 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
3000pcs in a month
Delivery Time :
15 days
Packaging Details :
Carton or wooden package
Min. Lifting Height :
2115MM
Fork Length :
1070MM
Overall Dimensions :
2730X1225X2090MM
Fork Width :
125MM
Load centre :
500mm
Rated Loading Capacity :
30000kg
Description

3Ton Diesel forklift Truck 2115MM With Min. Lifting Height, Diesel Forklift with ISUZU/Yanmar/Chinese Engine

-- Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation

-- Solid Overhead Guard -- specially designed for additional security

-- Ergonomics Seat -- much more comfortable and fatigue- reliveable after long time operation

-- Powerful Engine -- imported brand engine ensures high performance, safty and efficiency

-- Super low & Non-slip step

1 Power Type Diesel
2 Rated Capacity kg 3000
3 Load Centre mm 500
4 Lift Height mm 3000
5 Fork Size (L×W×T ) mm 1070×125×45
6 Mast Tilt Angle (F/R) Deg 6°/12°
7 Front Overhang (Wheel center to fork face) mm 475
8 Ground Clearance(Bottom of mast) mm 120
9 Turning Radius (outside) mm 2400
10 Min. Intersecting aisle mm 2110
11 Max.Gradeability (No load/Full load) % 19
12 Wheelbase mm 1700
13 Service weight kg 4390
14 Battery (Voltage/Capacity) V/Ah 12/90
15 Overall Dimension Length to face of fork(Without fork) mm 2670
16 Overall Width mm 1225
17 Mast Lowered Height mm 2065
18 Mast Extended Height(With backrest) mm 4150
19 Overhead Guard Height mm 2090
20 Speed Travel (No load) km/h 19
21 Lifting(Full load) mm/s 440
22 Tire Front mm 28x9-15-12PR
23 Rear mm 6.50-10-10PR
24 Engine Model C240 PKJ
25 Manufacture ISUZU
26 Rated output/r.p.m. kw 35.4/2500
27 Rated torque/r.p.m. N·m 139/1800
28 No.of Cylinder 4
29 Bore×Stroke mm 86×102
30 Displacement cc 2369
31 Fuel Tank Capacity L 70
32 Transmission Type Powershift
33 Stage FWD/RVS 1/1
34 Operating Pressure for Attachment Mpa 17.5
