Specifications
Brand Name :
Bioclean
Model Number :
ZBJ-5C
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T
Description
Product Name ZBJ-5C
Rated Occupants 2 person
Important Dimensions Overall Dimensions (L × W × H) 4450×2500×2400
Wheelbase 1400mm
Wheel Track 1970mm
Ground Clearance 130mm
Quality Parameters Net Weight 1700KG
Vehicle Performance Maximum Speed 16km/h Working Speed 10km/h
Minimum Turning Radius 4.6m Front Brush Diameter 700mm
Max Hill Climb ≤ 25° Middle Brush Diameter 700mm
Operating Time 3-5 hours Full Load Working Time ≥3 hours
Water Tank 600L Garbage Bin 1200L
Sweeping Width 2500mm Max Hopper Dump Height 2500mm
Electric Control System Drive Electric Control 60V 5000W DC Controller
Battery 60V 300Ah lithium battery (optional dual/quad battery packs)
Drive Motor 60V 5000W DC Motor
Charger Portable Intelligent Charger
Charging Time 6-8 hours
Vehicle Configuration Cabin Sealed frame structure steel cab, tempered glass door, electronic display instrument, reverse image, fan (optional air conditioner)
Seat Independent main/auxiliary seats, leather soft seats, leather back cushions
Rearview Mirror Large-field-of-view dead-angle-free rearview mirrors, front-side observation mirrors
Lights and Signals Warning light + LED roof light + LED side lighting turn signal + LED headlight + rear light + license plate light
Suction Cup Width 900mm
Fan 60V 5000W Brushless DC Fan
HighPressure Cleaning System High-Pressure Pump 1500W
Handheld High-Pressure Water Gun 1 piece (with 0°, 15°, 25° nozzles)
High-Pressure Hose Reel 10m
Rear Discharge Nozzle 1400mm nine-hole sprinkler
Chassis Tires 185R14LT
Steering Type Steering wheel mechanical electronic power steering
Braking System Front/rear wheel hydraulic press brake system, handbrake
Body Color Dark Grey (Customizable Logo)

Product Features
★The body is designed with a streamlined shape and tempered glass.

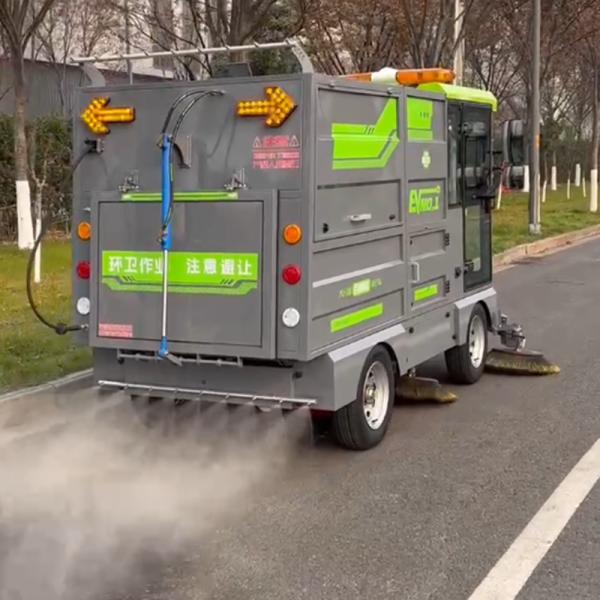

★A spray nozzle is located at the upper rear of the vehicle body, providing water spraying for dust suppression on the working surface.
★Equipped with vacuum tires for wear resistance and long service life.
★The vehicle body is coated with high-temperature metallic paint and features corrosion-resistant materials such as electrophoresis and spray coating for rust prevention.
