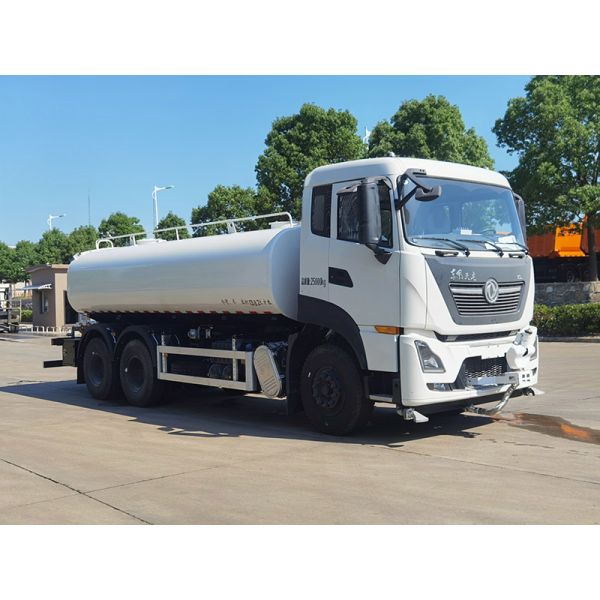

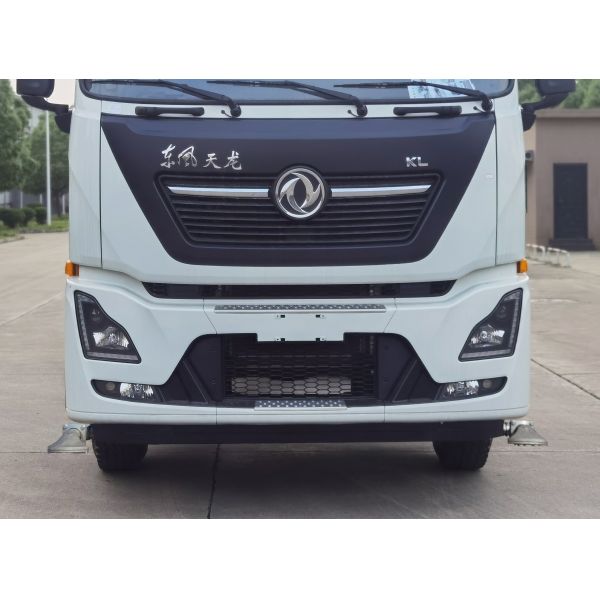

Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control
Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control
Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control
Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control
Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control
Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control
Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control
Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control
Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control
Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control
Specifications
Brand Name :
Bioclean
Model Number :
ZBJ5250GSSD6
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T
Engine: :
D4.0NS6B195
Chassis: :
DFH1250D4
Dimension(L X W X H): :
10050×2500×3190 mm
Weight: :
25000(Kg)
Curb weight :
10980(Kg)
Maximum Speed: :
89 (km/h)
Axle Load: :
7000/18000
Highlight: :
Eco-Friendly Water Spraying Truck, Advanced Technology Water Spraying Truck, Eco Friendly sprayer water truck
Tyre: :
295/80R22.5 18PR,11.00R20 18PR
Description
Multi-functional Eco-Friendly Sprinkler Truck for Urban Road Cleaning and Dust Control System
National High-Tech Enterprise Technology-Oriented Company for Ecological Environment Solutions
Product Features
The main devices of the vehicle include water tank, waterway and operation devices, primarily used for spray disinfection operations and epidemic prevention in streets, squares, communities, and similar environments.
  • Battery type/Energy storage device assembly manufacturer: Lithium iron phosphate battery/CATL New Energy Technology Co., Ltd
  • Drive motor model/manufacturer: TZ375XSSF-SZF611/Shaanxi Fast Gear Co., Ltd
  • Individual type/model/manufacturer of energy storage device: Lithium iron phosphate battery/CB220/CATL New Energy Technology Co., Ltd
  • Rated power: 105kW; Peak power: 175kW
  • ABS model/manufacturer: ABS-E/ZF Commercial Vehicle Systems (Qingdao) Co., Ltd
  • Side and rear protective materials: Q235 steel
  • Connection method for side protection: bolt connection
  • Connection method for rear protection: bolt connection
  • Rear lower protection section size: 80 × 160mm, rear protection height above ground: 440mm
Tank Specifications
  • Effective volume: 10.6 cubic meters
  • Total capacity: 11.14 cubic meters
  • Transportation medium: disinfectant
  • Medium density: 850 kg/cubic meter
  • External dimensions (length × long axis × short axis): 5000 × 2230 × 1420mm
Configuration Options
Configuration Curb Weight Passengers/Rated Load Capacity
With rear fog cannon structure 8720kg 3 passengers/9085kg or 2 passengers/9150kg
Without rear fog cannon structure 8655kg 3 passengers/9150kg or 2 passengers/9215kg
Front Spray Gun Forward Extension Vehicle Dimensions (Length/Extension/Front Suspension/Wheelbase/Rear Suspension)
With front electronic spray gun 580mm 8560/580/1270/4500/2210mm
Without front electronic spray gun 0mm 7980/0/1270/4500/2210mm
Optional Features
  • Optional front without electronic spray gun
  • Optional rear platform without fog gun machine
  • Optional rear fog gun machine style
  • Optional front electronic spray gun style
  • Optional rear without arrow light
  • ETC onboard device compatibility
Product Images
Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control Eco-Friendly Sprinkler Truck with Lithium Iron Phosphate Battery for Disinfection Operations and Dust Control
