Specifications
Brand Name :
BIOCLEAN
Model Number :
BCGCS-V
Certification :
SGS-CE-OWB-2023-1098
Place of Origin :
NINGBO CHINA
MOQ :
1
Price :
8000-15000 USD
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 Units per year
Delivery Time :
40 Workingdays
Packaging Details :
Custom steel frame crating
Control System :
Semi - Automatic Control
Noise Level :
≤60 dB
Energy Consumption :
≤5 kWh/ton
Loading Mode :
Top Loading
Discharge Method :
Automatic Discharge
Weight of Machine :
3000 - 4000 kg
Description

Product descriptions

Vertical Waste Compaction Station – High-Efficiency, Space-Saving Sanitation Solution


Our Vertical Waste Compaction Station is a state-of-the-art sanitation equipment engineered for urban high-density areas, combining vertical compression technology, space efficiency, and eco-friendly operation. Designed to tackle the challenges of limited land use and strict environmental standards, it delivers superior waste reduction performance for residential communities, commercial districts, and public facilities.

Core Features

  • Ultra-Compact Design: Covers only 15㎡ of floor space, ideal for narrow urban sites
  • High Compression Efficiency: Compression ratio up to 3.5:1, waste density reaching 0.96t/m³ (30% higher than horizontal compactors)
  • Fully Sealed Operation: Eliminates odor leakage and sewage spillage, meeting strict environmental regulations
  • Intelligent Automation: PLC-controlled system with remote monitoring, reducing manual operation by 50%

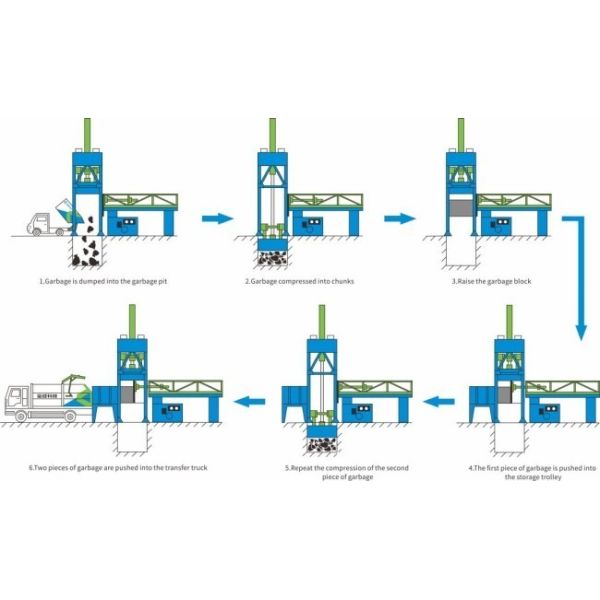

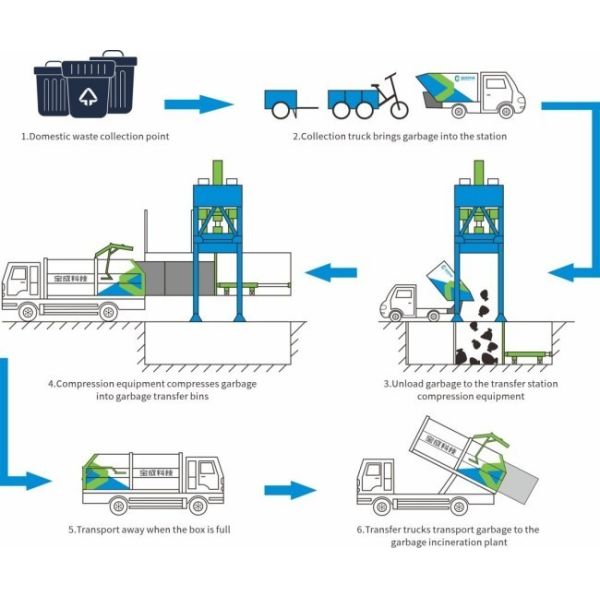

Working Principle

  1. Waste Feeding: Waste is loaded into the top hopper and falls into the compression chamber via gravity.
  2. Vertical Compression: Hydraulically driven rams press downward to compact loose waste into high-density blocks, leveraging gravity for enhanced efficiency.
  3. Storage & Transfer: Compressed waste blocks are pushed into a sealed storage bin. When full, the bin lifts to ground level and transfers waste to sealed garbage trucks via a push plate.
  4. Eco-Friendly Handling: Sewage from compression is collected through dedicated pipes and discharged to municipal sewage systems, with odor suppression via spray deodorization.

System Configuration

  • Main Structure: 16Mn high-strength steel frame (≥10mm thickness) with three hydraulic cylinders and four guide columns for precision.
  • Hydraulic System: Industrial-grade oil pump, cylinders, and valve group for stable pressure output.
  • Control System: PLC controller with touchscreen interface, supporting remote fault diagnosis and data monitoring.
  • Environmental Systems: Integrated sewage collection, spray deodorization, and noise reduction (≤75dB).
  • Safety Systems: Multi-interlock protection and anti-fall devices to prevent operational risks.

Ideal Applications

  • Urban residential communities with limited space
  • Commercial districts, office buildings, and shopping malls
  • Schools, hospitals, and public facilities (high hygiene requirements)
  • County/town waste transfer hubs (replacing traditional open waste points)

Why Choose Our Vertical Compaction Station?


With a 3–5 year investment payback period, our station cuts waste transportation costs by 50% (via fewer truck trips) and reduces manual labor needs significantly. It complies with national environmental standards and supports smart city integration via IoT connectivity, making it a sustainable choice for modern urban sanitation management.

Product Specification


Parameter Typical Range Remarks
Compression Force 100–420kN (10–42 tons) Adjustable for different waste types
Daily Processing Capacity 6–150 tons/day Small: 6–30t; Medium: 30–80t; Large: 80–150t
Compression Ratio 3:1–3.5:1 Reduces waste volume by 70–80%
Compressed Waste Density ≥0.9t/m³ Max. 0.96t/m³ for optimized models
Hydraulic Working Pressure 18–25MPa Ensures stable compression force
Power Rating 15–30kW Energy-efficient dual-pump system
Equipment Dimensions 6m×3.5m×6m (L×W×H) Includes underground foundation pit
Cycle Time 8 minutes/compression Fast processing for high-throughput needs
