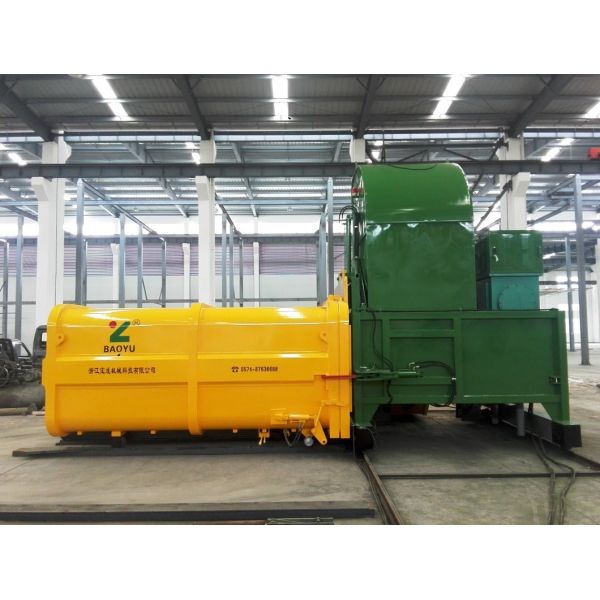

Movable Bin Waste Compaction Station – Flexible, Efficient Waste Management Solution

Core Features

• Movable Bin Design: Detachable or shiftable waste bins enable quick transfer to garbage trucks, cutting loading/unloading time by 40%
• Space-Efficient Layout: Covers only 20–30㎡, adaptable to narrow urban or suburban sites
• Dual-Function Operation: Integrates waste compression and bin transfer in one system, streamlining workflow
• Easy Maintenance: Modular bin structure allows independent servicing without halting overall operation
• Eco-Friendly Performance: Fully sealed bins prevent odor leakage and sewage spillage, meeting environmental standards

•

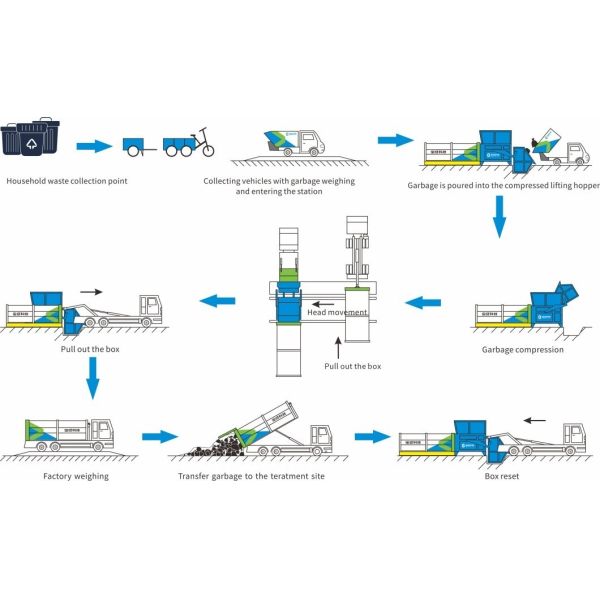

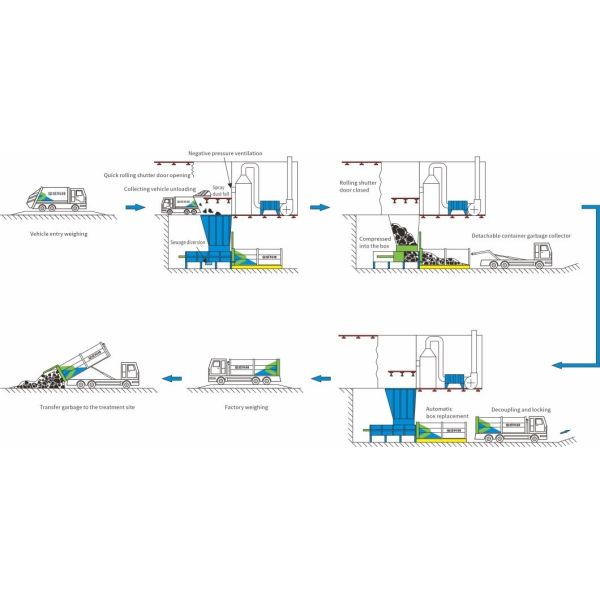

  Working Principle




  1. Waste Compression: Waste is fed into the fixed compression chamber and compacted vertically/horizontally (per model) by hydraulic rams, forming dense waste blocks.
  2. Bin Integration: Compressed waste is pushed into a sealed movable bin until the bin reaches capacity.
  3. Bin Transfer: The full bin is shifted (hydraulically or via forklift) to align with garbage trucks; an empty bin is then swapped into place for uninterrupted operation.
  4. Waste Discharge: The movable bin is tilted or opened to transfer waste into trucks, while the empty bin returns to the compression station for reuse.

  System Configuration




  • Main Structure: Q355B steel frame with reinforced compression chamber (8–10mm thickness) for durability
  • Movable Bin: High-strength steel bin with anti-corrosion coating, with lifting lugs for crane transfer
  • Hydraulic System: Industrial-grade pump and cylinders for both compression and bin shifting
  • Control System: PLC with touchscreen interface, supporting automatic compression, bin shift, and fault alerts
  • Environmental Systems: Integrated sewage collection tray, deodorization spray, and noise reduction (≤70dB)
  • Safety Features: Bin locking mechanism, emergency stop buttons, and overload protection

  Ideal Applications




  • Residential communities with scattered waste collection points
  • Township and county waste transfer hubs (small-to-medium throughput)
  • Commercial districts and shopping centers with frequent waste generation
  • Industrial parks with decentralized waste sources
  •


  Why Choose Our Movable Bin Compaction Station?




  With its flexible bin design, our station eliminates the need for multiple fixed storage units, reducing infrastructure costs by 30%. The quick bin swap ensures 24/7 operation for high-demand sites, while the compact size fits into tight urban spaces. Compliant with international standards (CE, ISO), it delivers reliable performance for both domestic and export markets, with a 5–8 year service life and low maintenance costs.



•


  Product Specification




  Parameter	Typical Range	Remarks
  Compression Force	100–300kN (10–30 tons)	Optimized for domestic/commercial waste
  Daily Processing Capacity	20–80 tons/day	Small: 20–40t; Medium: 40–80t
  Compression Ratio	3:1–3.2:1	Reduces waste volume by 70–75%
  Compressed Waste Density	0.8–0.9t/m³	Ensures stable load for bin transfer
  Movable Bin Volume	5–10m³/bin	Single/double bin options available
  Bin Shifting Method	Hydraulic/mechanical	Hydraulic for smoother operation
  Hydraulic Working Pressure	18–25MPa	Consistent force for compression/shift
  Power Rating	15–22kW	Energy-saving variable speed drive
  Equipment Dimensions	7m×4m×5m (L×W×H)	Includes main unit + movable bin
  Bin Transfer Time	≤5 minutes/bin	Fast swap for continuous operation
